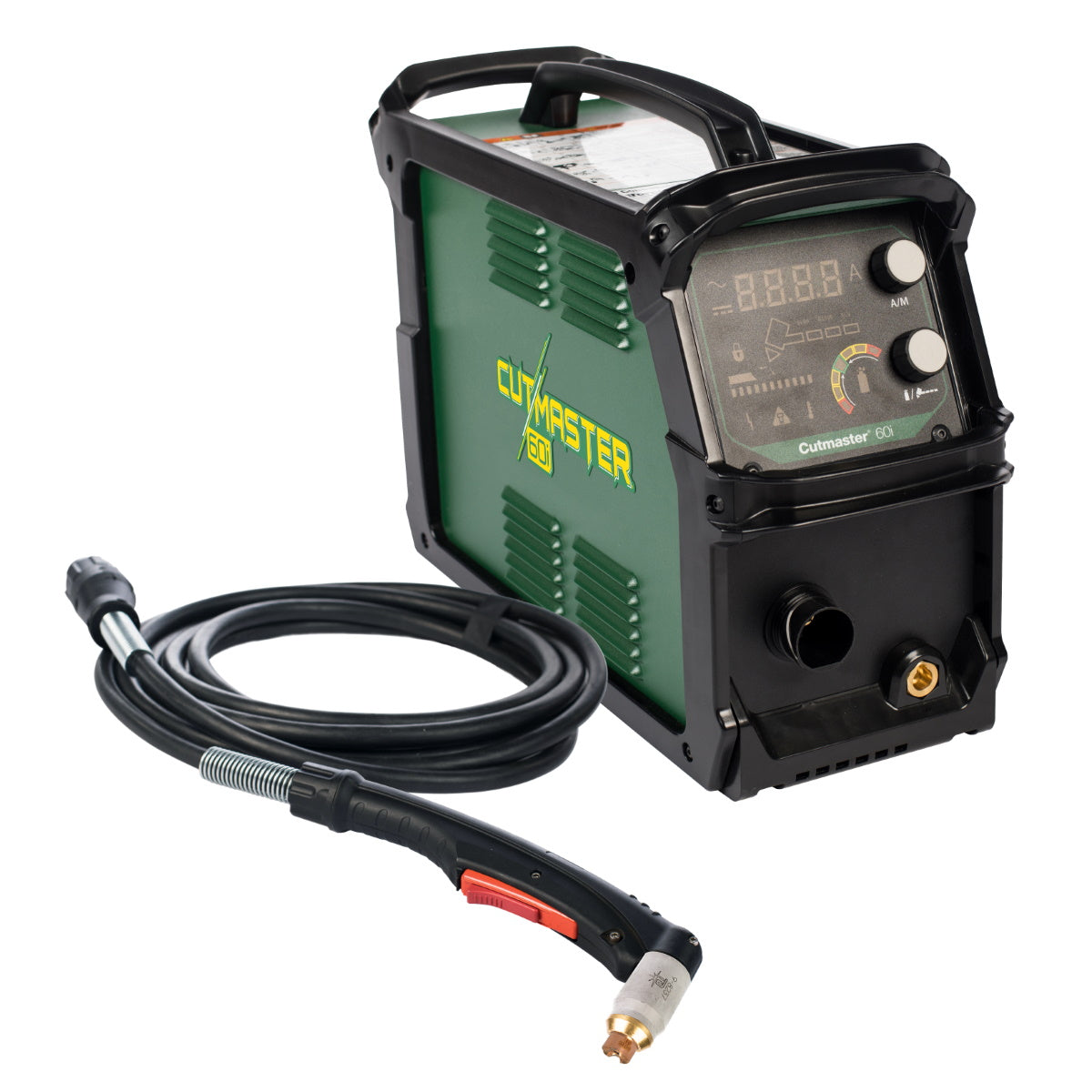

Thermal Dynamics Cutmaster 60i Plasma Cutter w/20 ft Torch Pkg (1-5630-1X)
Thermal Dynamics' Cutmaster 60i w/20 ft Hand Torch (1-5630-1X) packs the highest weight to cutting capacity in the Thermal line. Fast and free shipping on plasma cutters and accessories.

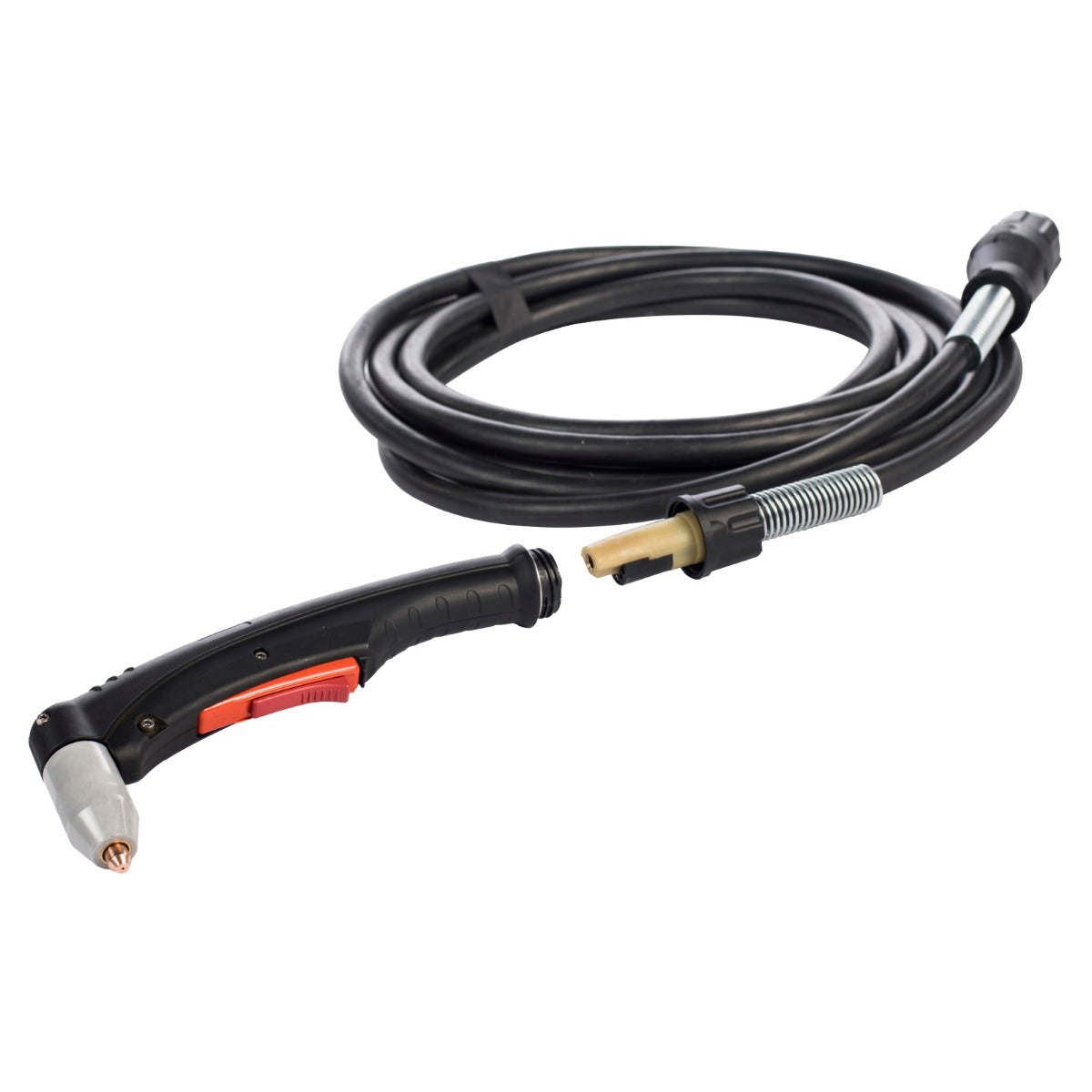

Thermal Dynamics' Cutmaster 60i features the new Modular SL60QD 1Torch and a 3/4" recommended and 1-1/2" maximum severance rating. The SL60QD torch can be separated between the lead and torch handle, thus allowing you to replace one or the other rather than both. The Cutmaster 60i is featured with a redesigned user interface for high-visibility and end-of-life consumable indicator. As always, the Cutmasters feature the best in the industry 4 year power source and 1 year torch warranty.
Key Features
• 208-480V Automatic Voltage Detection
• SL60QD 1Torch with Quick Disconnect ATC

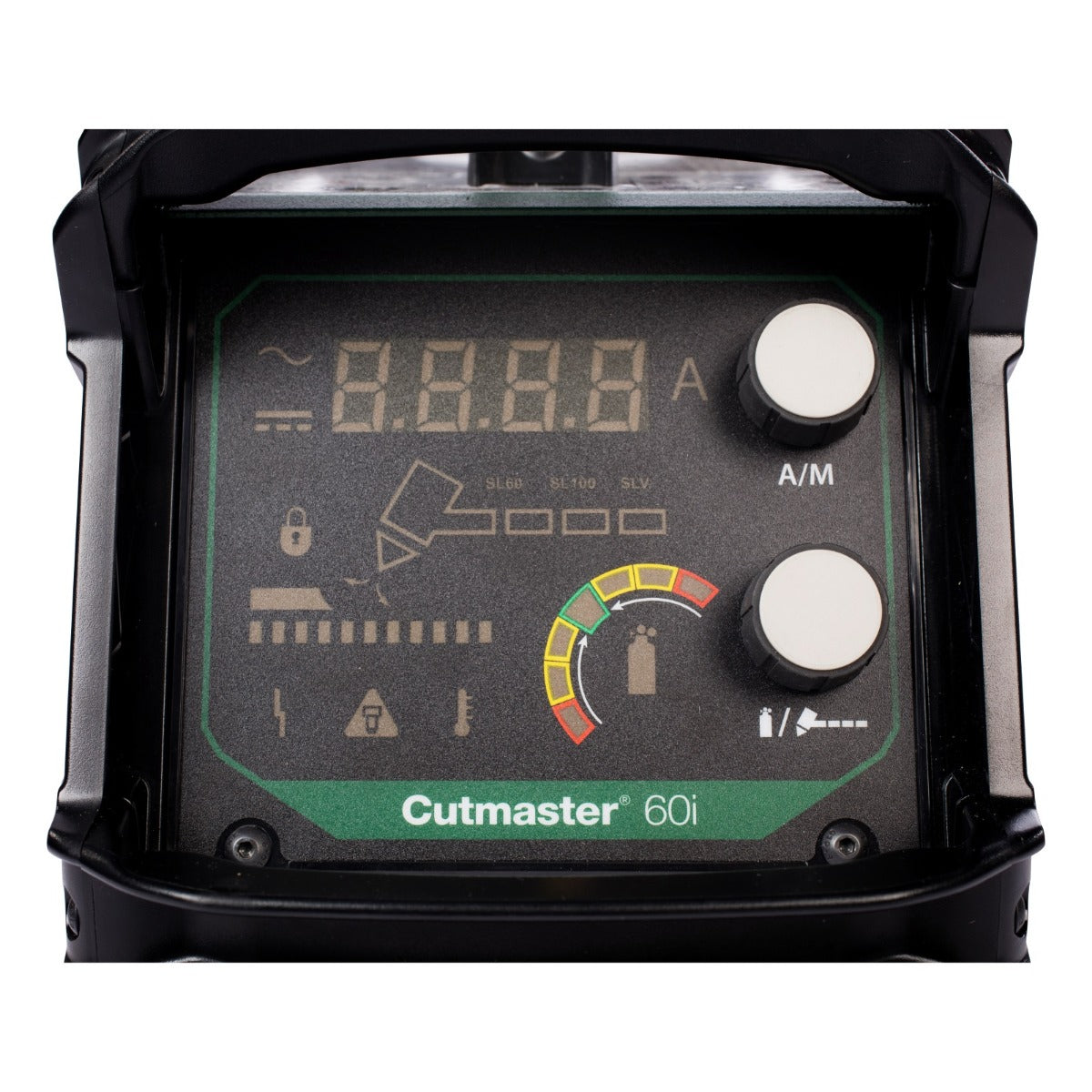

• Oversized High-Visibility Display
• Built-in Gas Optimizer
• End-of-Life Consumable Indicator
Quick Specs
• 3/4" Recommended Cut | 1-1/2" Max Severance
• 50% Duty Cycle @ 60A | 100% @ 40A
• 208-480V Auto Voltage Detection | 1-Phase
• Operating Temp: 32°-122° F
• Recommended Air Pressure: 75 psi | 5.2 bar | 6.7 cfm
Includes
• Cutmaster 60i Power Source
• 20' SL60QD Hand Torch with 75° Head
• 9' Power Cord with 230V NEMA 6-50P Plug
• 20' #8 Work Cable/Clamp with 50mm Connection
• Spare Parts Kit
Thermal Dynamics' Cutmaster 60i features the new Modular SL60QD 1Torch and a 3/4" recommended and 1-1/2" maximum severance rating. The SL60QD torch can be separated between the lead and torch handle, thus allowing you to replace one or the other rather than both. The Cutmaster 60i is featured with a redesigned user interface for high-visibility and end-of-life consumable indicator. As always, the Cutmasters feature the best in the industry 4 year power source and 1 year torch warranty.
Key Features
• 208-480V Automatic Voltage Detection
• SL60QD 1Torch with Quick Disconnect ATC
• Oversized High-Visibility Display
• Built-in Gas Optimizer
• End-of-Life Consumable Indicator
Quick Specs
• 3/4" Recommended Cut | 1-1/2" Max Severance
• 50% Duty Cycle @ 60A | 100% @ 40A
• 208-480V Auto Voltage Detection | 1-Phase
• Operating Temp: 32°-122° F
• Recommended Air Pressure: 75 psi | 5.2 bar | 6.7 cfm
Includes
• Cutmaster 60i Power Source
• 20' SL60QD Hand Torch with 75° Head
• 9' Power Cord with 230V NEMA 6-50P Plug
• 20' #8 Work Cable/Clamp with 50mm Connection
• Spare Parts Kit
MPN: ESB1-5630-1X
UPC: 699488023184
Phase: Single Phase
