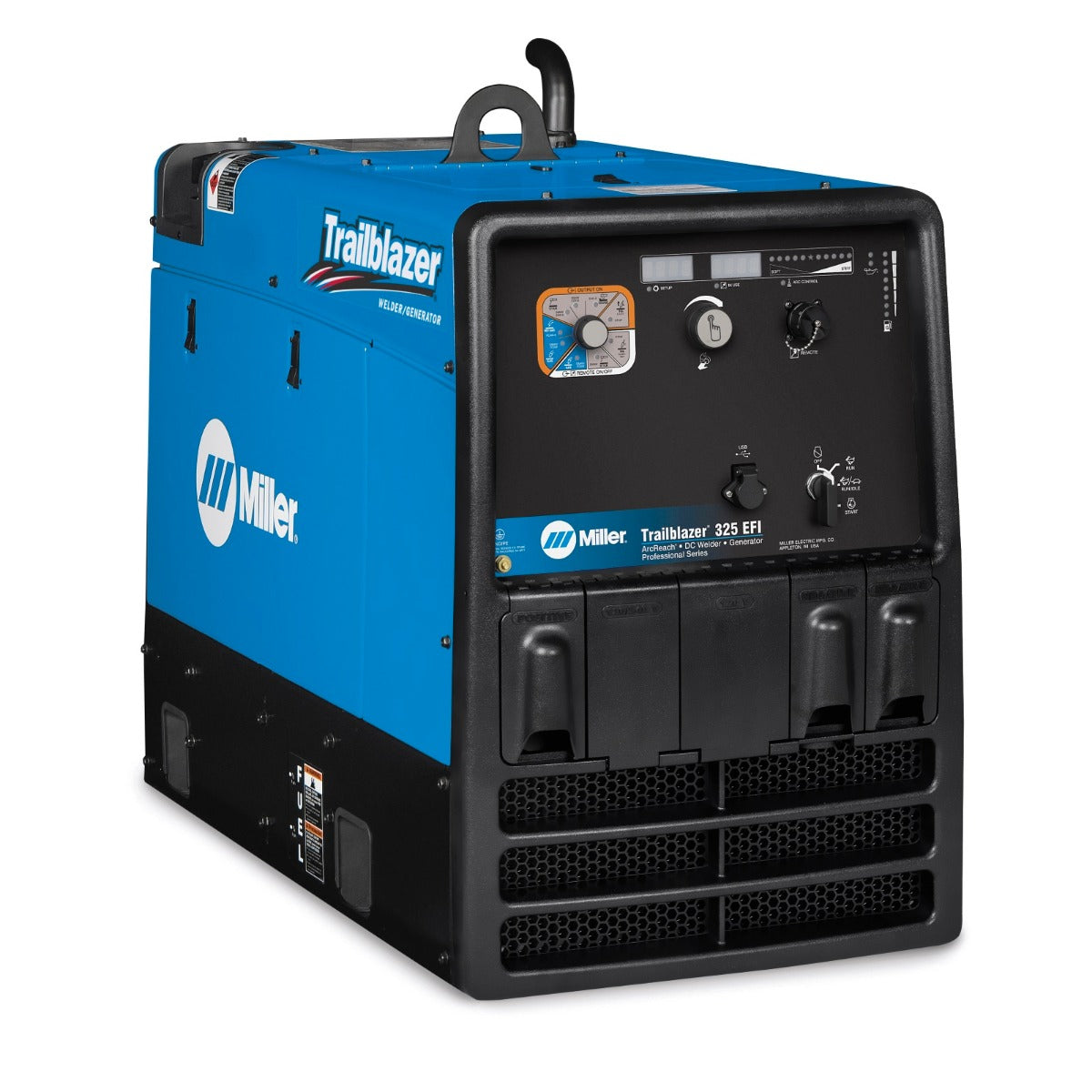

Miller Trailblazer 325 w/ArcReach EFI GFCI and Excel Power (907754002)
Miller has discontinued this particular model Trailblazer 325. The suggested replacements are the 907798 and 907798002.
The Trailblazer 325 is now offered with Auto-Speed and ArcReach technology - ArcReach allows the user to change weld settings from your ArcReach feeder or remote, saving a trip back to the power supply. This technology eliminates the need for control cords, and their associated problems and costs. Miller's exclusive Auto-Speed technology matches the engine speed to the work load, reducing fuel consumption and increasing efficiency.
EFI Model Benefits
• Faster, More Reliable Starts in Any Weather
• No Choke Adjustments Needed
• 42% More Fuel Efficient over Carbureted Models
• 6 Hours More Runtime over Carbureted Models
Excel Power Benefits
• Full 2,400 Watts (20A) of 120-Volt Inverter Based Sine Wave Power at All Speeds
• Operate Jobsite Tools like Grinders at Quiet, Fuel-Saving Speeds
• Up to 52% More Fuel Efficient
• Annual Fuel Savings of Roughly $570 over Competitive Models
ArcReach Benefits (Must be Paired with an ArcReach Compatible Device)
• Remote Control of the Power Source Without a Cord
• Allows User to Change Weld Settings at the Feeder
• Eliminates the Need for Control Cords and Their Associated Costs
Quick Specs
• Output Range: DC Stick - 30-325A | Mig - 10-35V | DC TIG - 10-325A
• Generator Output: 12,000 Watts Peak | 10,500 Watts Continuous
• Duty Cycle: 100% @ 325A
• Weight: 460 lbs
• Dimensions: 28" H (33" w/Exhaust) x 20" W x 40.5" D
• Engine: Kohler ECH730 with 3 Year Warranty
• Kohler Engine: Twin Cylinder, 4 Cycle, Overhead Valve, Air Cooled, 12 Gallon Capacity
The Trailblazer 325 is now offered with Auto-Speed and ArcReach technology - ArcReach allows the user to change weld settings from your ArcReach feeder or remote, saving a trip back to the power supply. This technology eliminates the need for control cords, and their associated problems and costs. Miller's exclusive Auto-Speed technology matches the engine speed to the work load, reducing fuel consumption and increasing efficiency.
EFI Model Benefits
• Faster, More Reliable Starts in Any Weather
• No Choke Adjustments Needed
• 42% More Fuel Efficient over Carbureted Models
• 6 Hours More Runtime over Carbureted Models
Excel Power Benefits
• Full 2,400 Watts (20A) of 120-Volt Inverter Based Sine Wave Power at All Speeds
• Operate Jobsite Tools like Grinders at Quiet, Fuel-Saving Speeds
• Up to 52% More Fuel Efficient
• Annual Fuel Savings of Roughly $570 over Competitive Models
ArcReach Benefits (Must be Paired with an ArcReach Compatible Device)
• Remote Control of the Power Source Without a Cord
• Allows User to Change Weld Settings at the Feeder
• Eliminates the Need for Control Cords and Their Associated Costs
Quick Specs
• Output Range: DC Stick - 30-325A | Mig - 10-35V | DC TIG - 10-325A
• Generator Output: 12,000 Watts Peak | 10,500 Watts Continuous
• Duty Cycle: 100% @ 325A
• Weight: 460 lbs
• Dimensions: 28" H (33" w/Exhaust) x 20" W x 40.5" D
• Engine: Kohler ECH730 with 3 Year Warranty
• Kohler Engine: Twin Cylinder, 4 Cycle, Overhead Valve, Air Cooled, 12 Gallon Capacity
MPN: MIL 907754002
UPC: 715959657532
Phase: Single Phase
