Miller Syncrowave 250 DX TIG/Stick Runner Welder Complete (951117)

Miller Syncrowave 250 DX TIG/Stick Runner Welder Complete (951117)

$7,095.00 $8,813.00
Sold out

warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Syncrowave 250 is no longer available. The suggested replacement is the Syncrowave 300 (951829).

Brand New Miller Syncrowave 250 Dx TIG Runner Systemcomplete with 3x coolingCOOLING System And With Torch And 4 Gallons Of Coolant.( 951117 )Same As 951069--Only Difference Is Miller Changed Name Of Coolant

Everything you need to weld, just add cylinder and gas, And TIG Torch Consumables, which are listed in another listing.

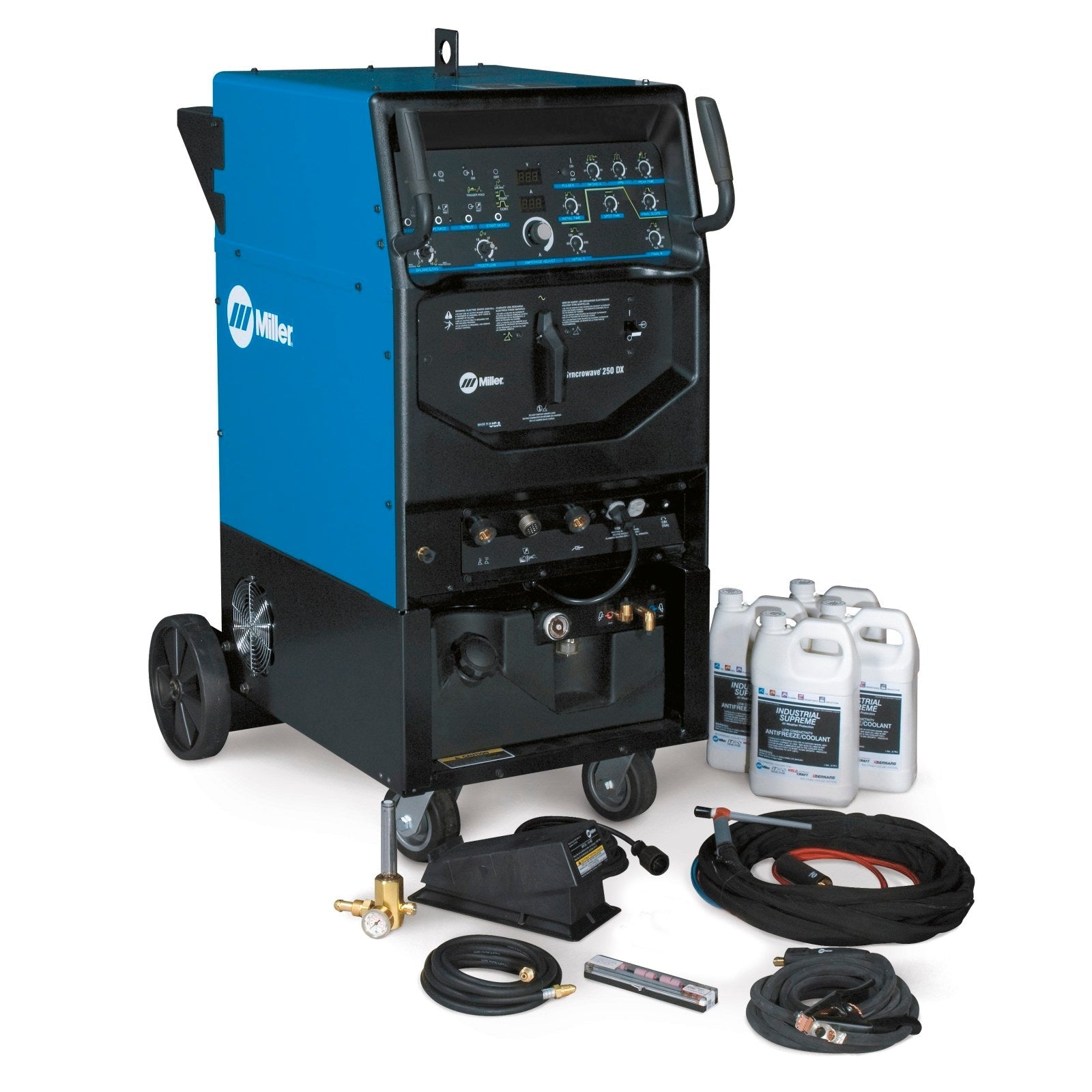

Comes with full 3 year factory warranty. Picture Of Welder Shows Optional Pulser Module And Sequencer Module, Upper Left Side Of Panel.

Syncrowave 250 Dx

Industry standard - Syncrowave 250 Dx has proven itself time and time again in the most demanding applications. Its industrial design and construction ensure reliable operation for years to come.

Pricing

$ 6252.00
List Price (Us$)

Process

  • TIG (Gtaw)
  • Pulsed TIG (Gtaw-P)(optional)
  • Stick (Smaw)

Applications

Industrial Applications

  • Precision Metal Fabrication
  • Maintenance and Repair
  • Light and Heavy Manufacturing
  • Fabrication
  • Aerospace
  • Shipbuilding
  • Tube and Pipe
  • Automotive
  • Vocational

Specifications

Input Power

  • Requires 1-Phase Power

Rated Output

  • 250 A at 30 Vac, 40% Duty Cycle
  • 200 A at 28 Vac, 60% Duty Cycle

Welding Amperage Range

  • 3 - 310 Amps

Net Weight

  • 378 lb (172 kg)

Comes Complete With

  • Syncrowave 250 Dx Base Unit:
  • Syncrowave 250DX powersource only
  • International-style connection kit (195 303)
  • Syncrowave 250 Dx TIGRunner:
  • Syncrowave 250DX
  • Coolmate 3X cooler
  • No. 37 Running Gear
  • Remote Foot Control
  • * Completely Assembled *
  • International-style connection kit (195 303)
  • Syncrowave 250 Dx TIGRunner with Torch Package Complete:
  • Includes the TIGRunner Package above completely assembled Plus:
  • 25 ft, 250 amp water-cooled Weldcraft torch
  • 4 Gallons Coolant
  • Work clamp
  • 10 ft gas hose
  • Smith Regulator/flowmeter
  • Cable cover
  • Ak-4 accessory kit

Product Information

Product Literature (Pdf)

>

    New! Coolmate 3X cooler option features a 3-gallon cooling system. A flow indicator provides visual indication that the system is working. The Coolmate 3X is also equipped with an external filter to stop any foreign objects from entering the water-cooled torch cable for better flow and longer life.

    Syncro Start for customized arc starts allows the operator to choose from three different starting conditions to optimize the application according to tungsten diameter and material thickness.

    Squarewave output with Ac balance control features adjustable penetration and cleaning action while increasing arc stability on various aluminum alloys, and helps eliminate tungsten spitting and arc rectification.

    Dual digital meters allow for quick and easy viewing of actual and preset values of amperage and voltage.

    Last procedure recall automatically recalls the last procedure set-up when switching polarity.

    Built-in preflow/postflow provides 0.2 - 5 seconds of preflow and 0 - 50 seconds of postflow.

    Built-in consumable storage located on the front panel allows the operator to store and readily access the needed consumables to be more productive.

    Fan-On-Demand operates only when needed reducing noise, power consumption, and the amount of airborne contaminants pulled through the machine.

    Lift-Arc start provides TIG arc starting without the use of high frequency.

    Lvc Line Voltage Compensation
    Keeps output of the power source constant regardless of fluctuation in input power+ or -10%.

    Adaptive Hot Start for Stick
    Automatically increases output amperage at the start of a weld should the start require it and prevents the electrode from sticking and creating an inclusion.
