Miller Syncrowave 200 (907308)
Miller Syncrowave 200 (907308)
Comes with full 3 year factory warranty.
Cut & Paste In Browser For full spec sheets http://www.millerwelds.com/pdf/spec_sheets/AD4-4.pdf
Call Us At 866-854-7380 8AM to 9PM Est. 7 Days A Week With Questions.
Syncrowave 200Best in class - the Syncrowave 200 is a Squarewave power source package that provides you with professional performance at an economical price.
List Price:$ 2,812.00.
ProcessTIG (Gtaw) Stick (Smaw) Pulsed TIG (Gtaw-P)
ApplicationsLight Industrial Applications Light Metal Fabrication Maintenance/Repair Operations Light Manufacturing Automotive Repair Vocational Training Hobbyist
SpecificationsInput Power Requires 1-Phase Power Rated Output150 A at 26 V, 40% Duty Cycle Welding Amperage Range 5 - 200 Amps
Net Weight238 lb (108 kg)

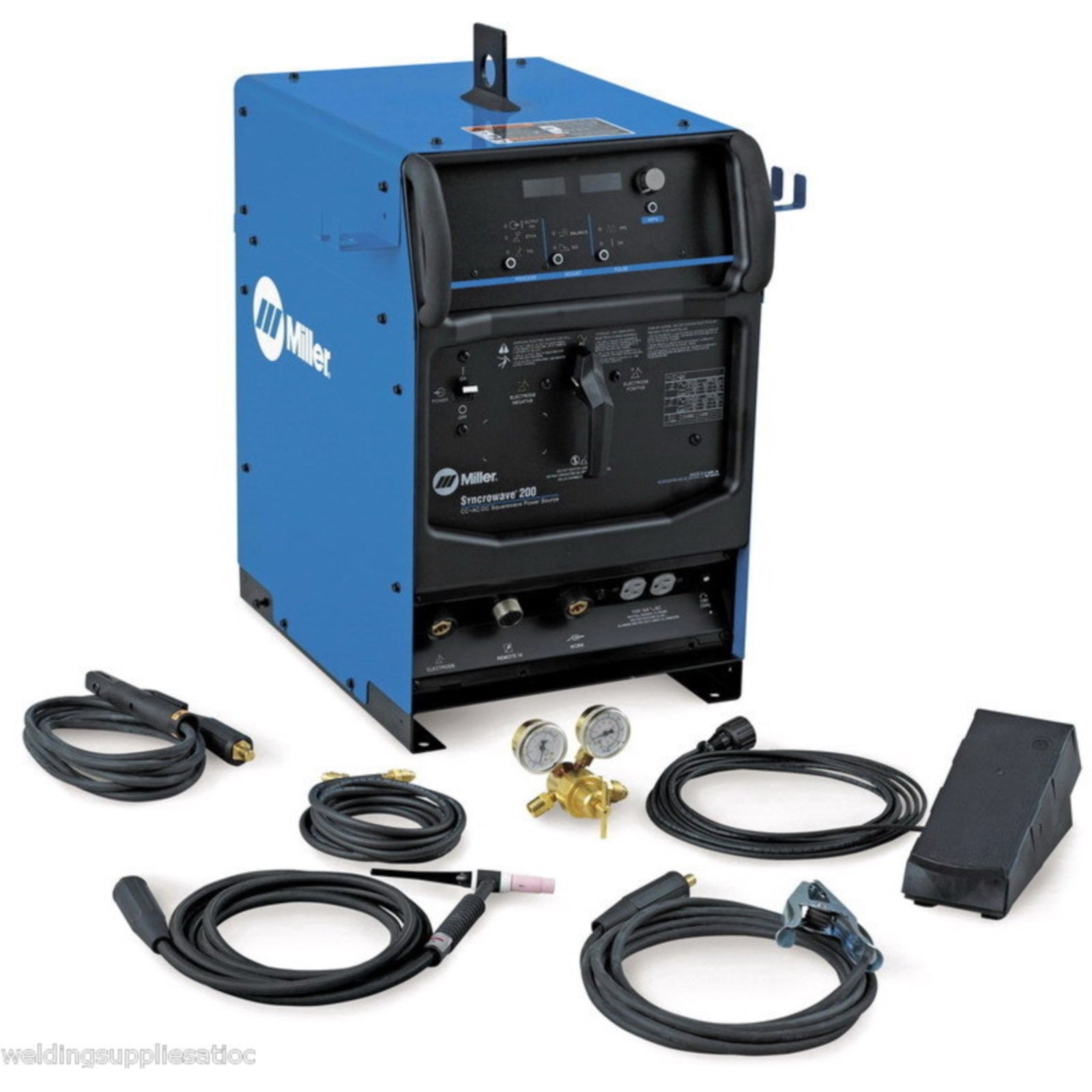

Comes Complete With
Power source (primary cordincluded with 208-230 V model)
Weldcraft WP1712SFD150 TIG torch, 150 Amp with quick-connect and 12-1/2 ft cable 12 ft (3.7 m)
work cable with clamp and quick-connect
Electrode holder and quick-connect
Rfcs-14 remote foot control with 20 ft (6 m) cord
Gas regulator and gas hose
Squarewave output with Ac balance control features adjustable penetration and cleaning action while increasing arc stability on various aluminum alloys, and helps eliminate tungsten spitting and arc rectification.
Dual digital meters with alpha-numeric displays allow for quick and easy viewing of actual and preset values of amperage and voltage.
New! Built-in pulse control enhances weld bead and puddle control for improved appearance and quality.
New! Cable management system uses dual cable hangers and foot control storage conveniently attachedto the power source side panels.
New! Auto-Postflow protects the weld end zone and electrode by optimizing postflow time based on welding amperage.
New! 115 V auxiliary power with convenient receptacle on front panelfor cooling system or small tools.
New! Syncro Start allows the operator to select Soft, Standard or Hot TIG Hf starts to optimize the application according to tungsten diameter and material thickness.
New! Includes Weldcraft® WP1712SFD150 TIG torch. 150 A, air-cooled torch features super flex (Sf) braided nylon power cable for maximum flexiblity.
MPN: MIL907308
UPC: 715959345194
Phase: Single Phase
