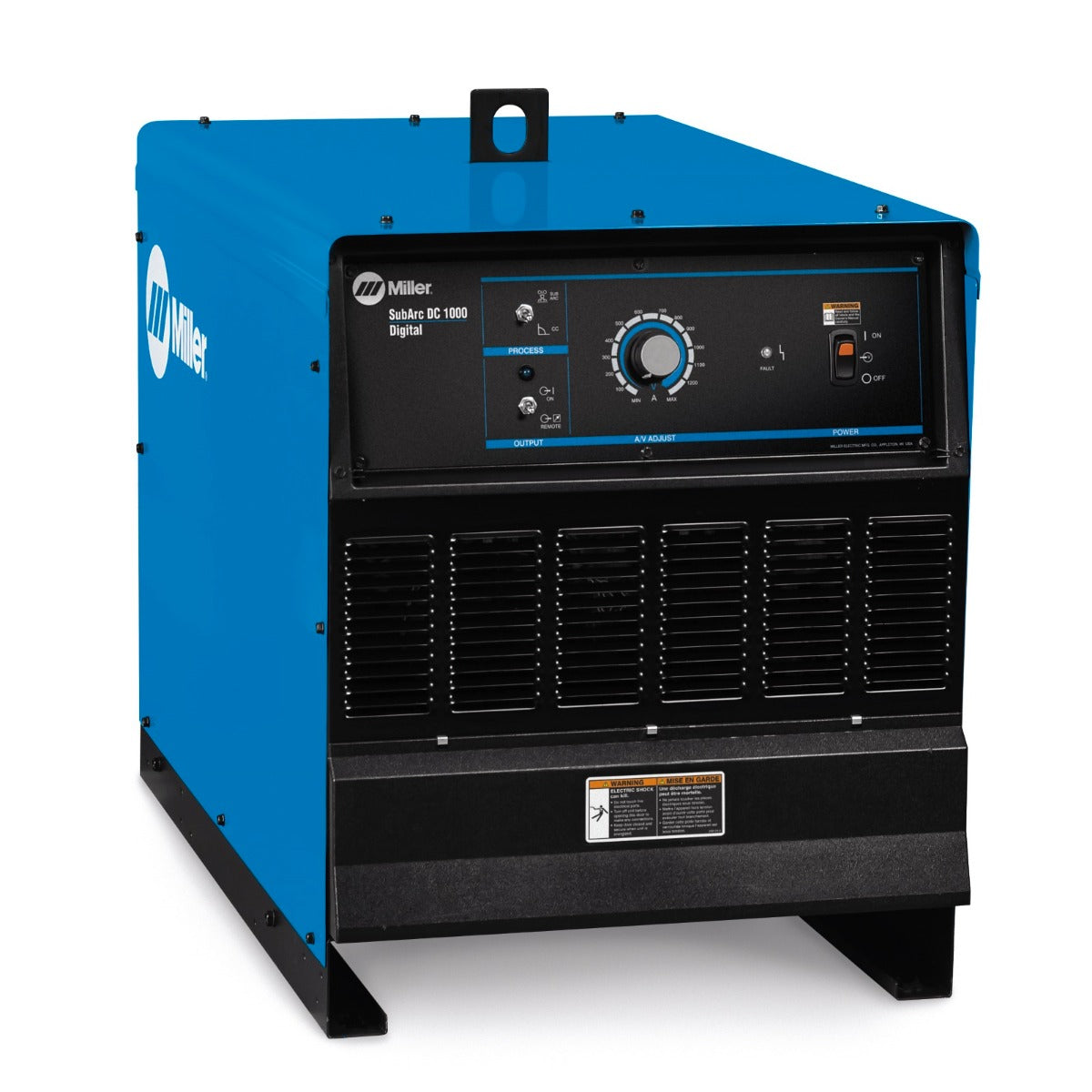

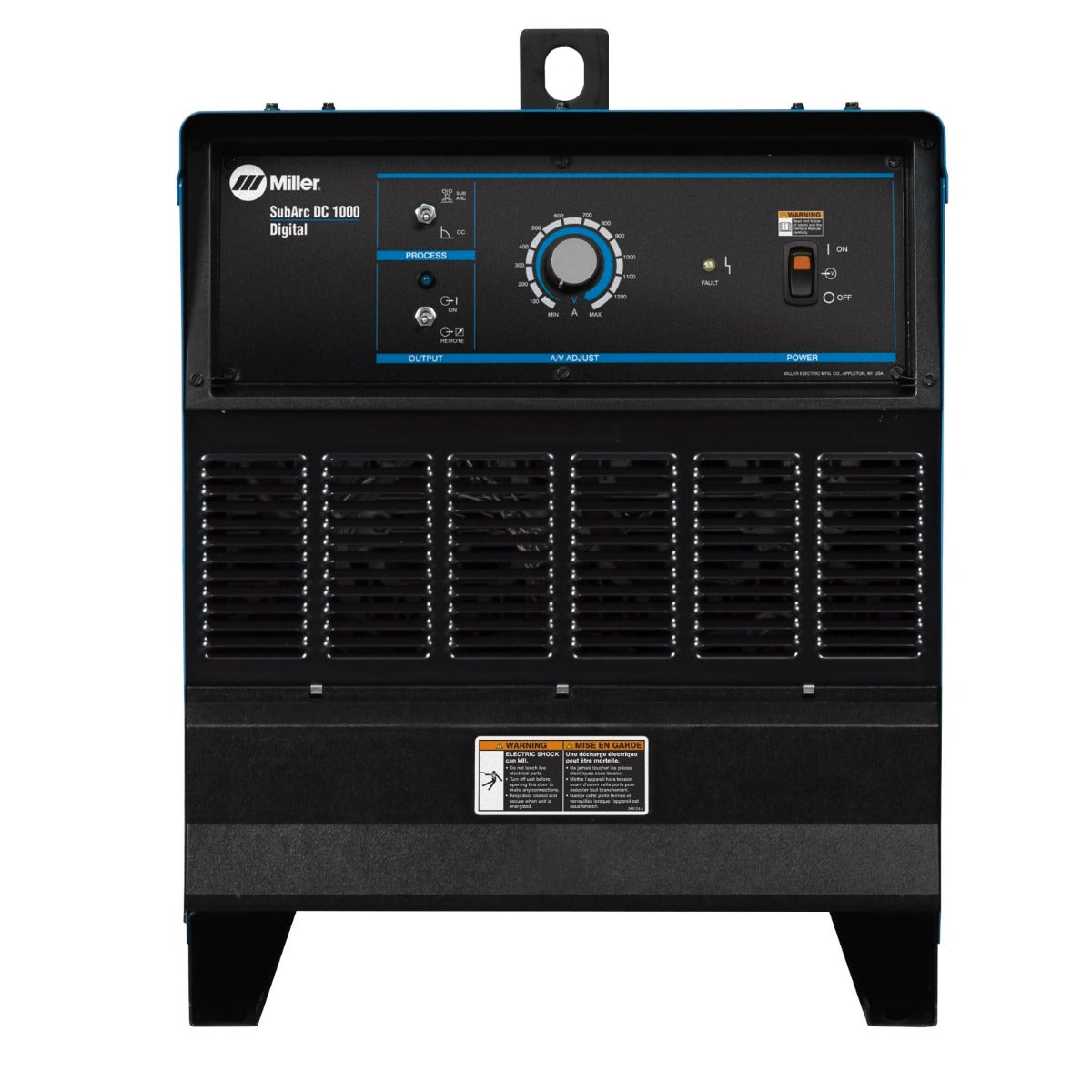

Miller Subarc DC 1000 Digital Submerged Arc Welder (907624)
The Miller Subarc DC 1000 Digital series welders are the industry standard for submerged arc welding. Miller offers three different power source options, three interface controls, and a range of wire drive motors and accessories.
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand
Quick Specs
• 3-Phase Only
• Amperage Range: 100-1,250A in CC mode
• Rated Output: 1,000A @ 44V, 100% Duty Cycle
• Amperage Draw: 180A @ 230V | 90A @ 460V | 72A @ 575V
• Dimensions: 30" H x 23" W x 38" D
• Weight: 682 lbs
Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand
Quick Specs
• 3-Phase Only
• Amperage Range: 100-1,250A in CC mode
• Rated Output: 1,000A @ 44V, 100% Duty Cycle
• Amperage Draw: 180A @ 230V | 90A @ 460V | 72A @ 575V
• Dimensions: 30" H x 23" W x 38" D
• Weight: 682 lbs
MPN: MIL907624
UPC: 715959600941
Phase: Three Phase
