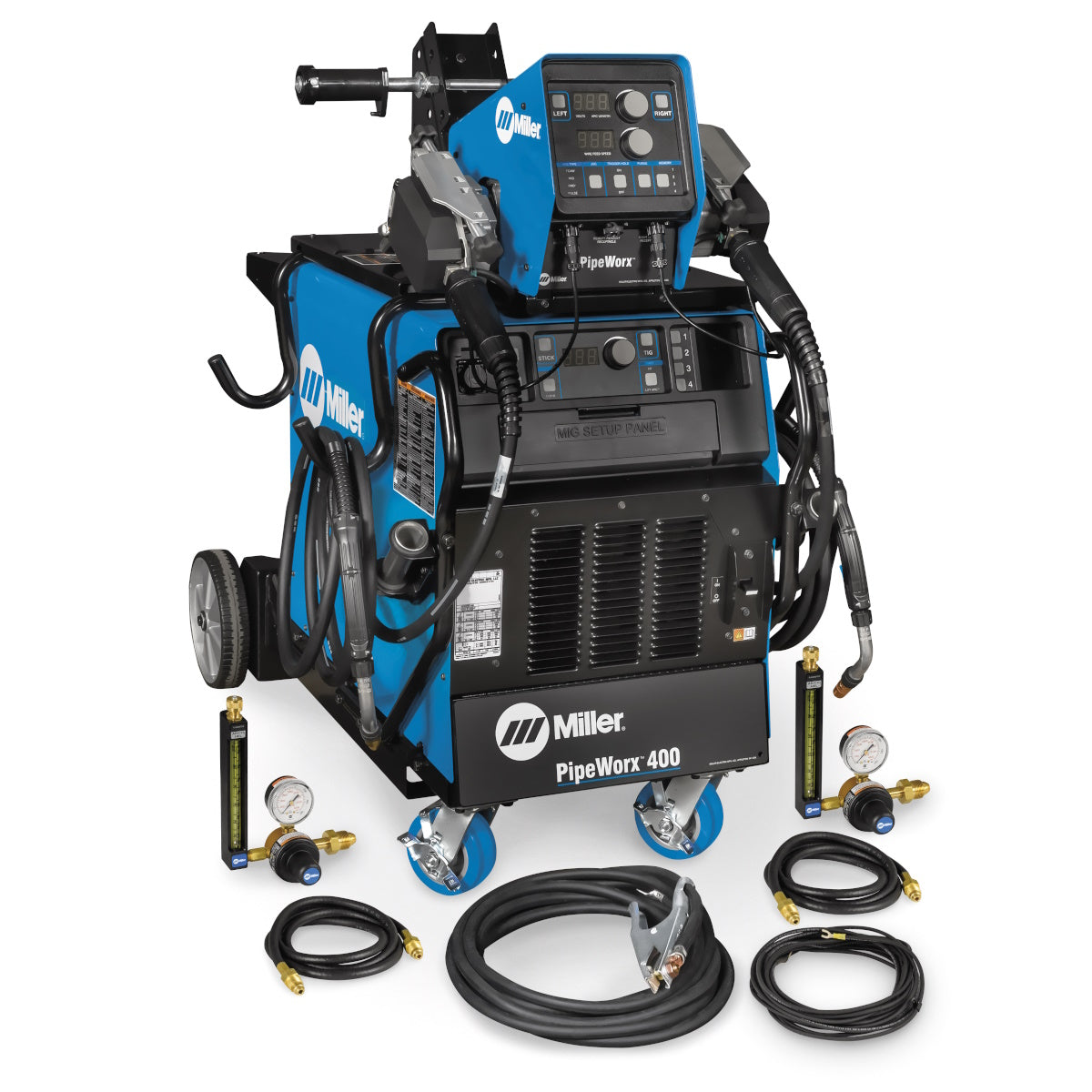

Miller PipeWorx 400 Welding System (575V) with Dual Feeder (951000095)
The Miller PipeWorx multiprocess welder is designed exclusively for pipe fabrication shops and come loaded with different MIG programs. These machines are simple to setup and start welding with less training and fewer steps. The PipeWorx features advanced RMD and pulsed MIG processes for high-quality welds and enhanced productivity. These welders are 3-Phase only.
RMD (Regulated Metal Deposition)
A precisely controlled short-circuit metal transfer that provides a calm, stable arc and weld puddle. This provides less chance of cold lap or lack of fusion, less spatter and a higher quality root pass on pipe. The stability of the weld process lessens the puddle manipulation required by the welder and is more tolerant to hi-lo conditions, reducing training requirements. Weld bead profiles are thicker than conventional root pass welds which can eliminate the need for a hot pass, improving weld productivity. In some stainless steel applications, it may be possible to eliminate the backing (purge) gas to further improve productivity and reduce welding costs.
Features

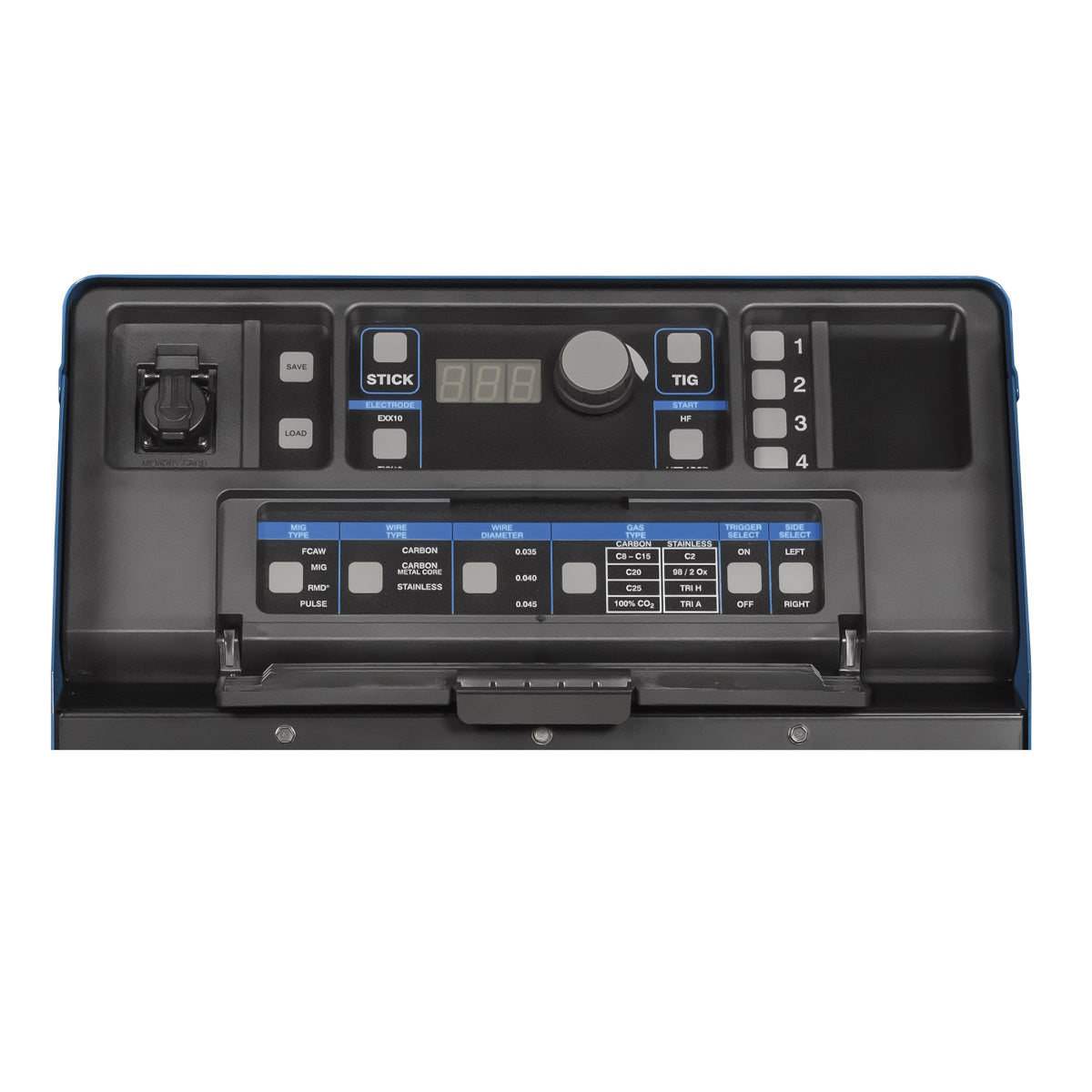

• Simple Process Setup
• Easy Process Selection
• Memory Card Slot
• Electrode Selection
• MIG Type Selection
• Electrode Selection
• HF or Lift-Arc TIG
• Left/Right Feeder Button
• Dedicated Connections for Different Cables

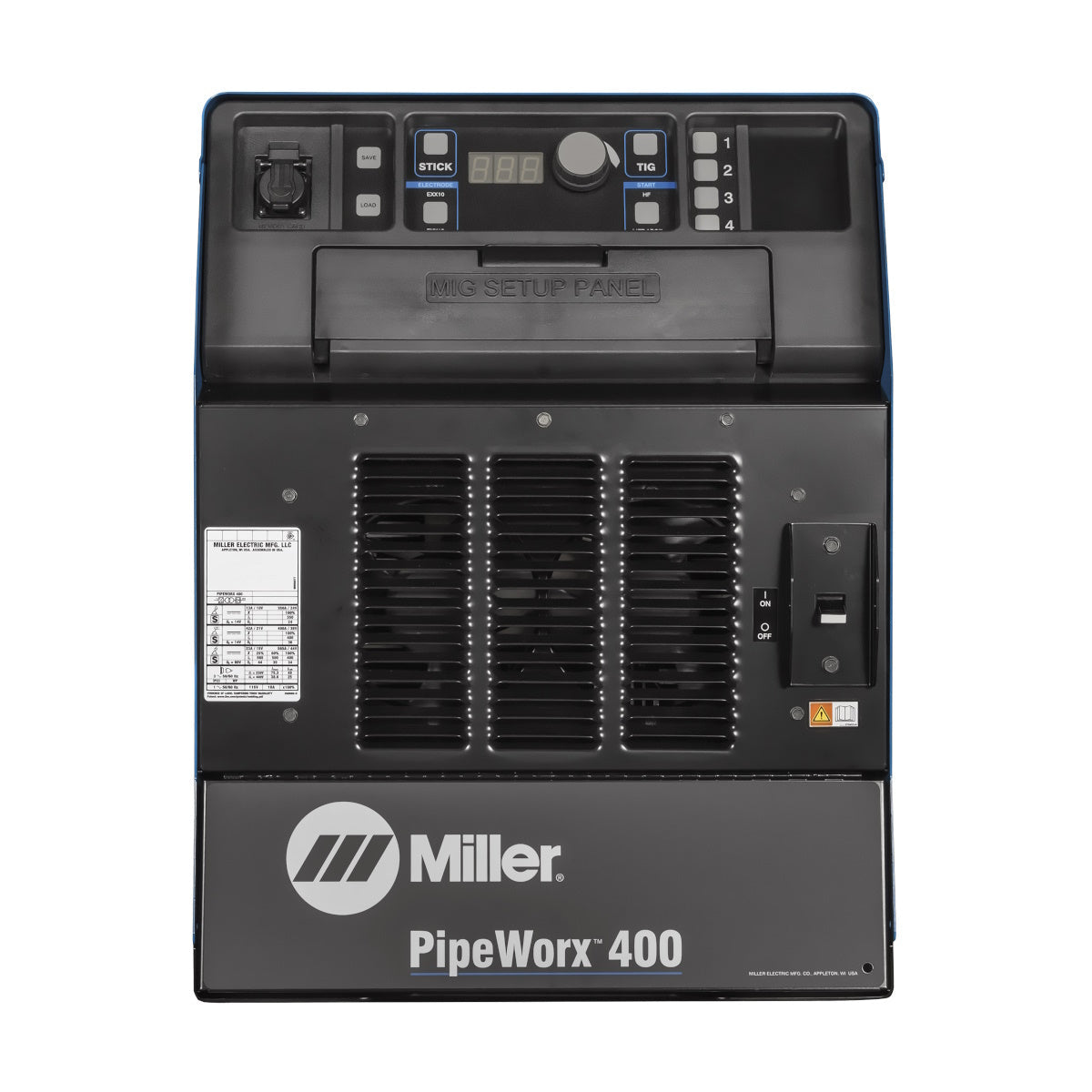

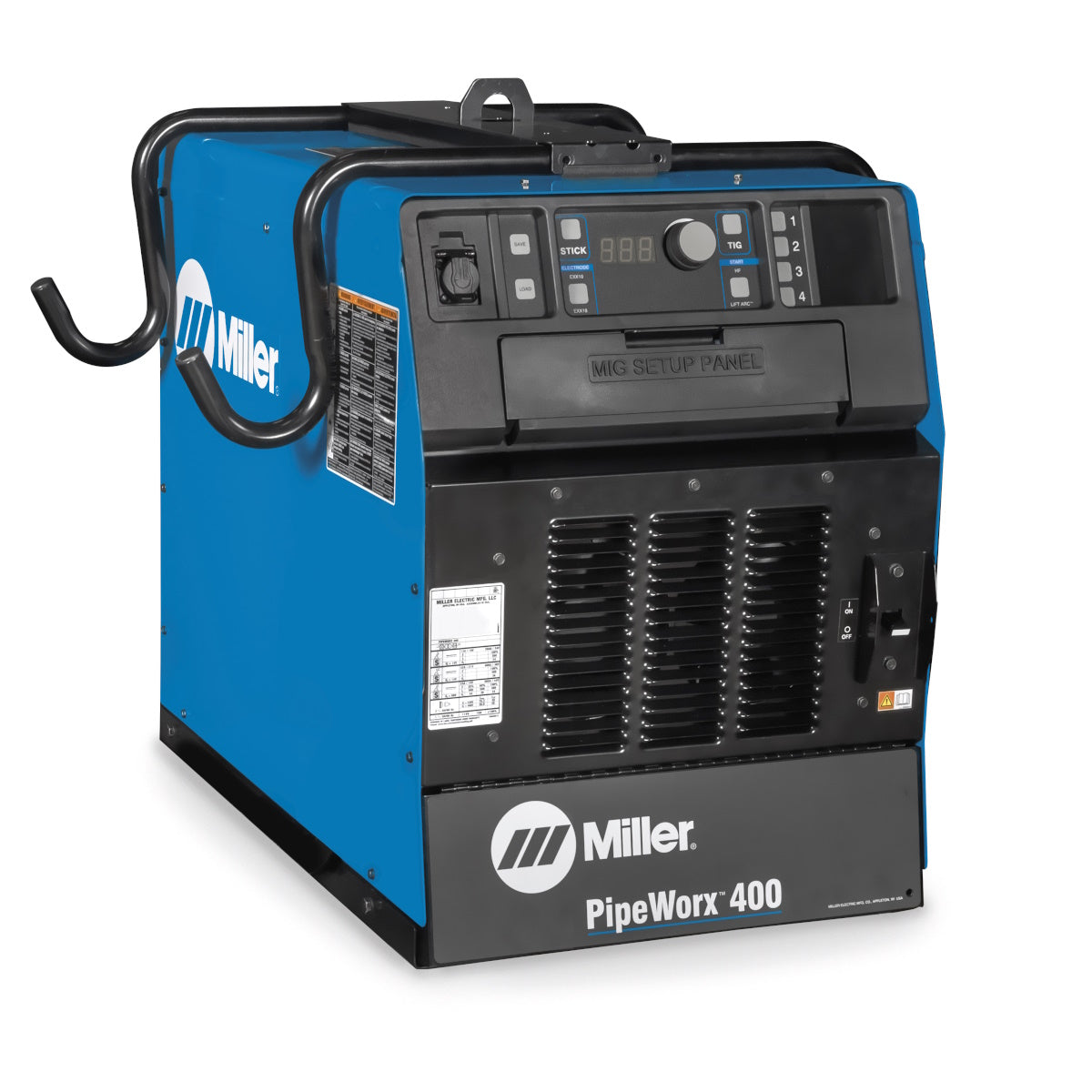

Power Source Quick Specs
• Output Range: Stick 40-400A | DC TIG 10-350A | MIG 10-44V, 400A
• Rated Output: Stick 100% @ 400A | DC TIG 350A @ 24 VDC | MIG 400A @ 34 VDC
• Power Source Dimensions: 28.5" H x 19.5" W x 31.75" D
• Power Source Weight: 225 lbs

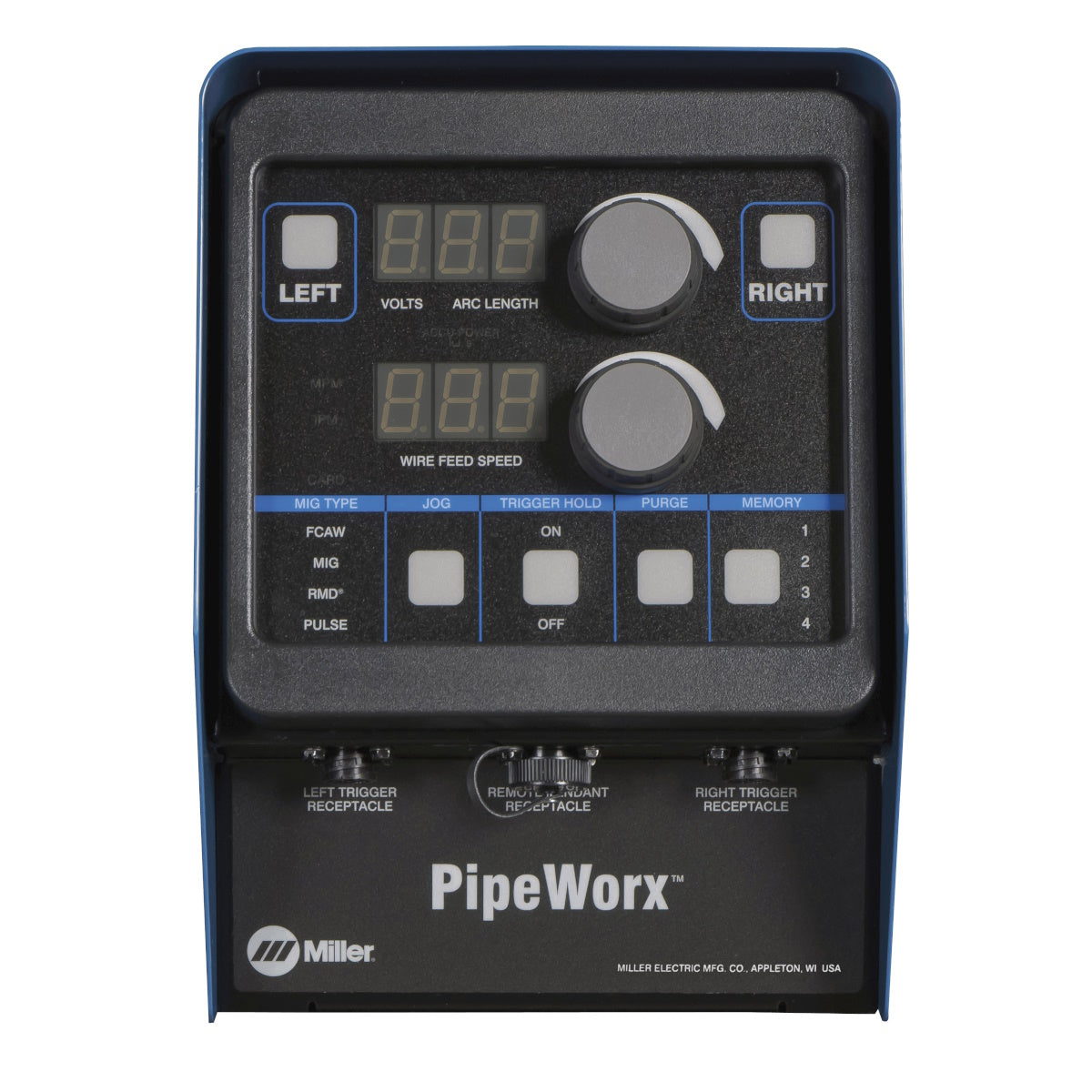

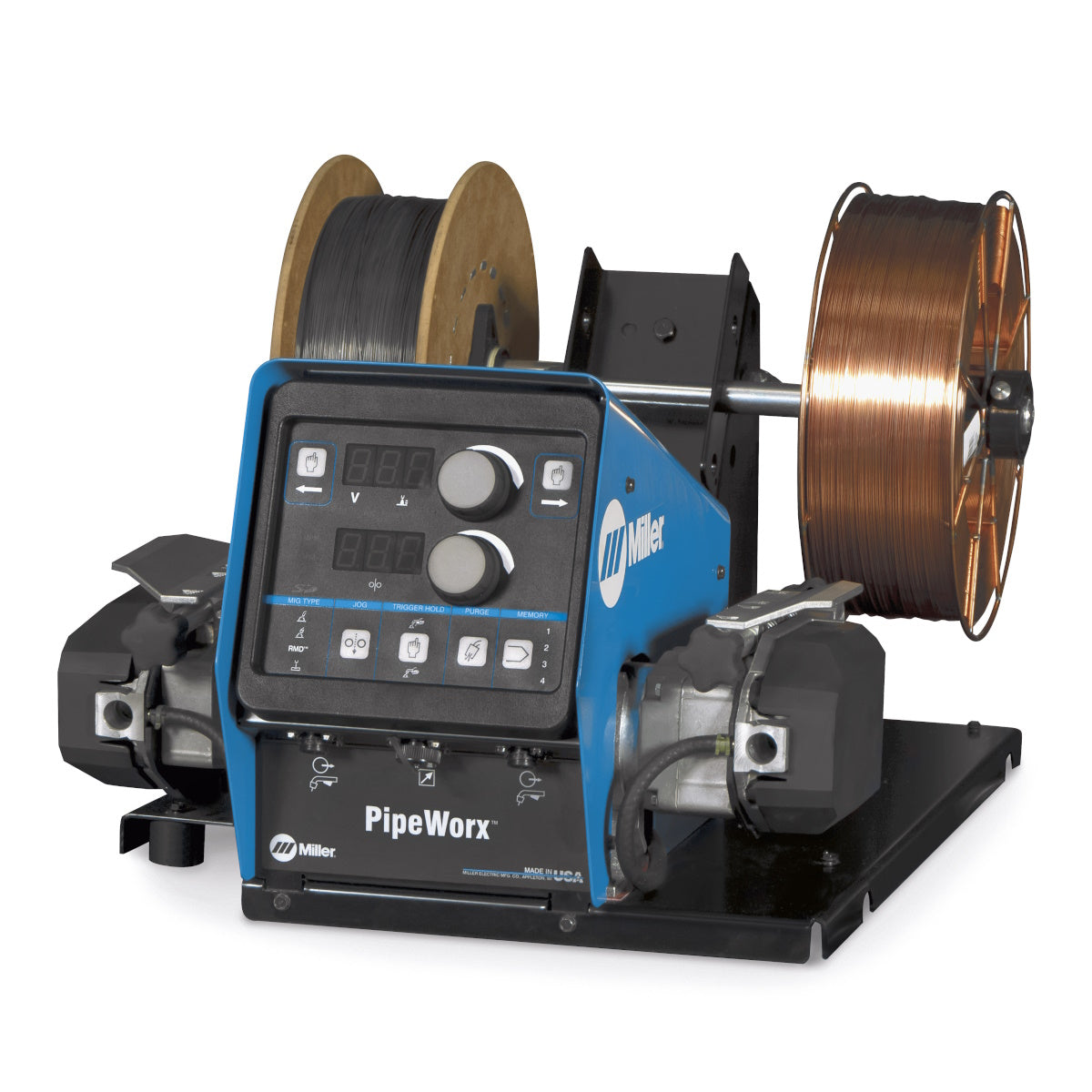

PipeWorx Dual Feeder Quick Specs
• Input Power: 24V, 11A
• Input Circuit Rating: 100V, 750A, 100% Duty Cycle
• Wire Feed Speed: 50-780 IPM
• Wire Diameter Capacity: .035-.062"
• Max Spool Capacity: 60lbs
• Dimensions: 14" H x 19" W x 29" D
• Weight: 90lbs
Includes
• 575V, 3-Phase Power Source with Side-Mount Cable Hangers (907382) (Power Cord Not Included)
• PipeWorx Dual Wire Bench Style Feeder with Drive Rolls (300366)
• Cable Kit with 25 ft Work Sense Lead (300367)
• Two 15 ft Bernard PipeWorx 300 MIG Guns (195400)
• Running Gear with Handles and Dual Cylinder Rack with Chains
• PipeWorx Accessories Kit for Dual Feeder (300568)
Phase: Three Phase
