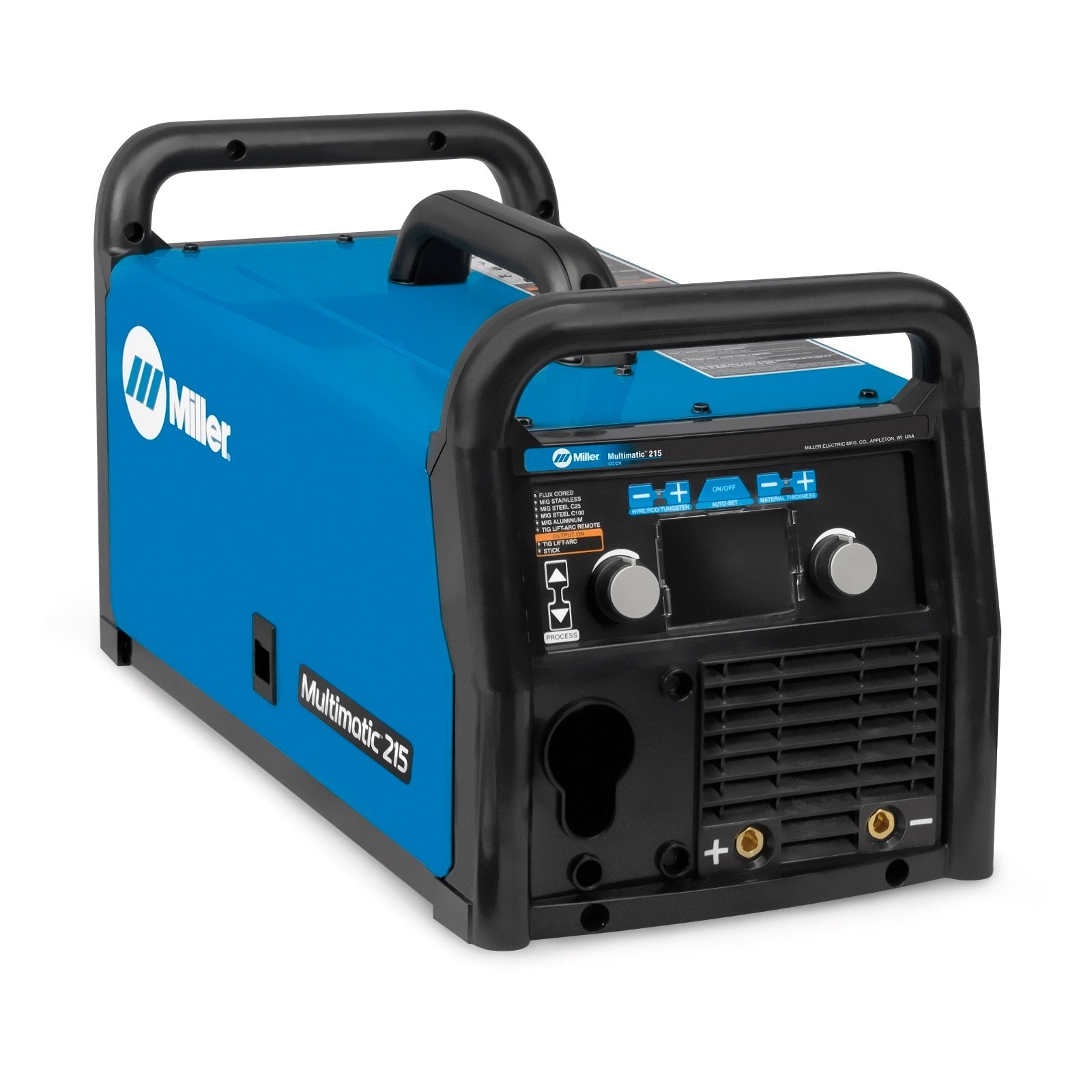

Miller Multimatic 215 Auto-Set Multiprocess Welder (907693)
Miller Multiprocess Welder: Backed by Miller’s 3-year True Blue Warranty, this 38 lb. workhorse is built to last. MIG 3/8”, TIG 3/16”, Stick 3/8”
When Miller Electric releases a new machine, they don’t just add another toy to the sandbox of options; they create a whole new playground! The Miller Multimatic 215 Auto-Set Multiprocess Welder (907693) is the latest offering in Miller’s line of go-anywhere, do-anything machines. Building upon the success of its smaller, inverter-based predecessors, the Miller Multimatic 215 is designed to reclaim Miller Electric's dominance in the multi-process welding market.
Dual solenoid: With the Miller Multimatic 215 multiprocess welder, you can leave your gasses for both MIG and TIG hooked up, allowing you to switch between the two processes easily.
All-in-one Multiprocess Capabilities:
This multiprocess welding machine can handle a variety of welding tasks. You can choose from MIG, flux-cored, DC stick, or DC TIG welding.

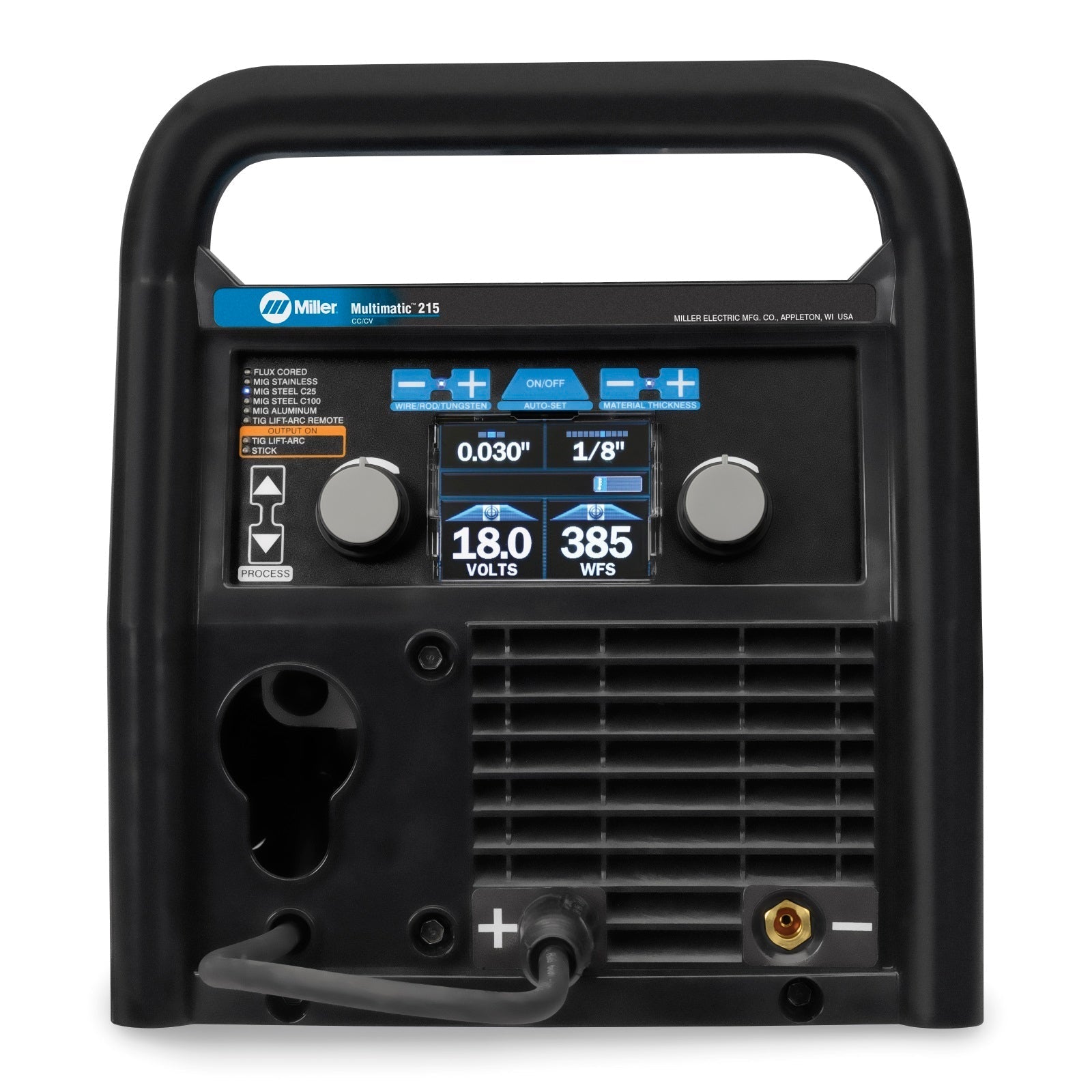

Easy-to-use color LCD Interface:
Set up is a breeze for all three processes with the LCD interface.
Up to 230 amps of Power:
The Miller 215 MIG welder can weld up to 3/8-inch mild steel in a single pass.
Portable Convenience:
Weighing only 38 pounds, the Multimatic 215 welder offers incredible power in a compact package.
Excellent Arc Characteristics:
Extremely stable arc with minimal spatter for less cleanup; Smooth-Start for consistently smooth MIG arc starts.
Smooth-feeding Wire Drive:

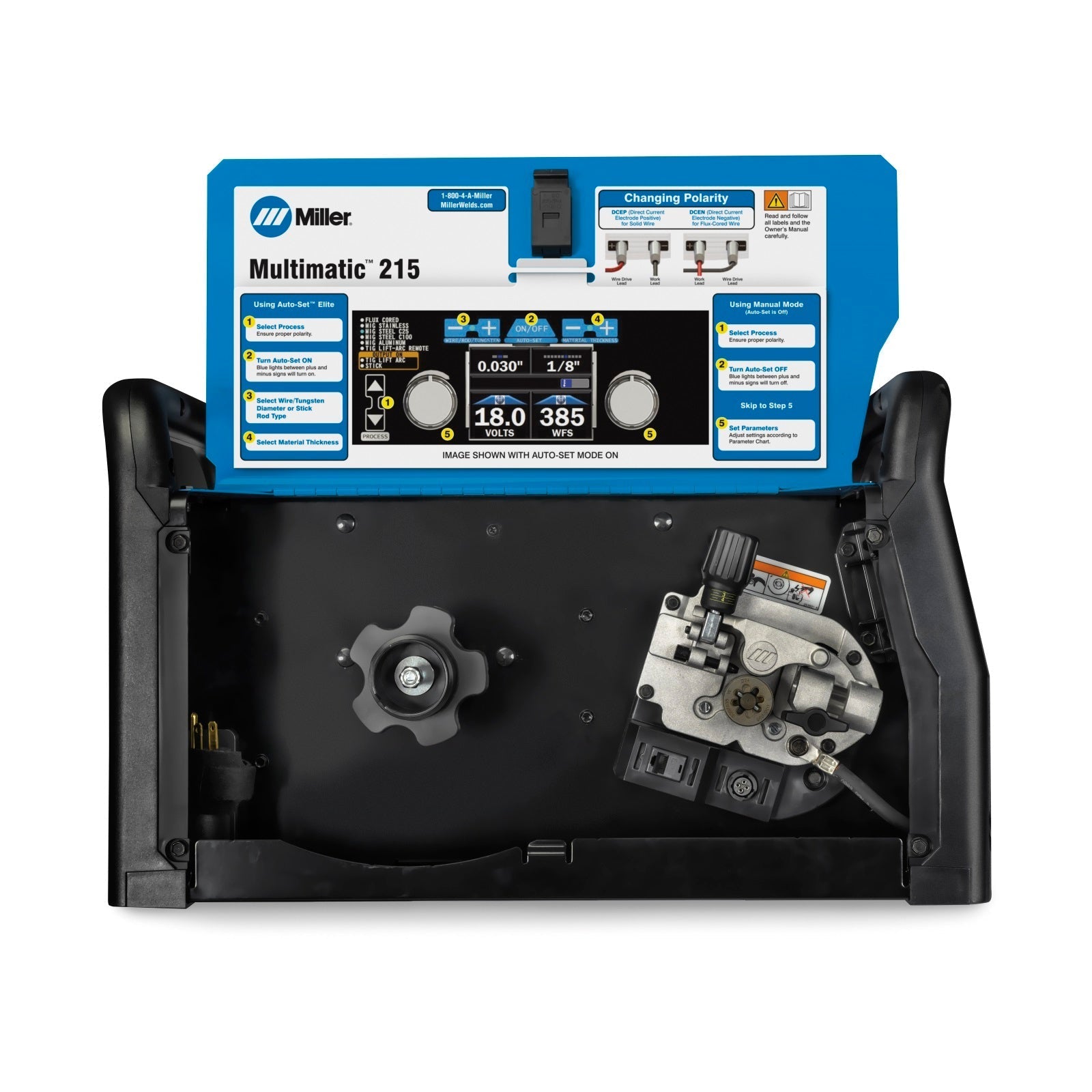

Enjoy seamless wire feeding and easy wire changes with the angled wire drive and Quick-Select drive roll.
Multi-voltage plug (MVP):
It easily connects to standard 120 V or 240 V power outlets; no tools required. Just choose the plug that fits the receptacle and connect it to the power cord.
Auto-Set Elite:
Fast and easy settings for multiple materials and processes to help you get welding quickly. Auto-Set Elite allows you to fine-tune weld settings while in Auto-Set mode.
Fan-On-Demand technology:
The power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through the machine.
Thermal overload protection:
Automatically shuts down if airflow through the unit is blocked or the duty cycle is exceeded.
Auto Spool Gun Detect:
Automatically detects when a MIG gun or spool gun is connected, eliminating the need for a switch.

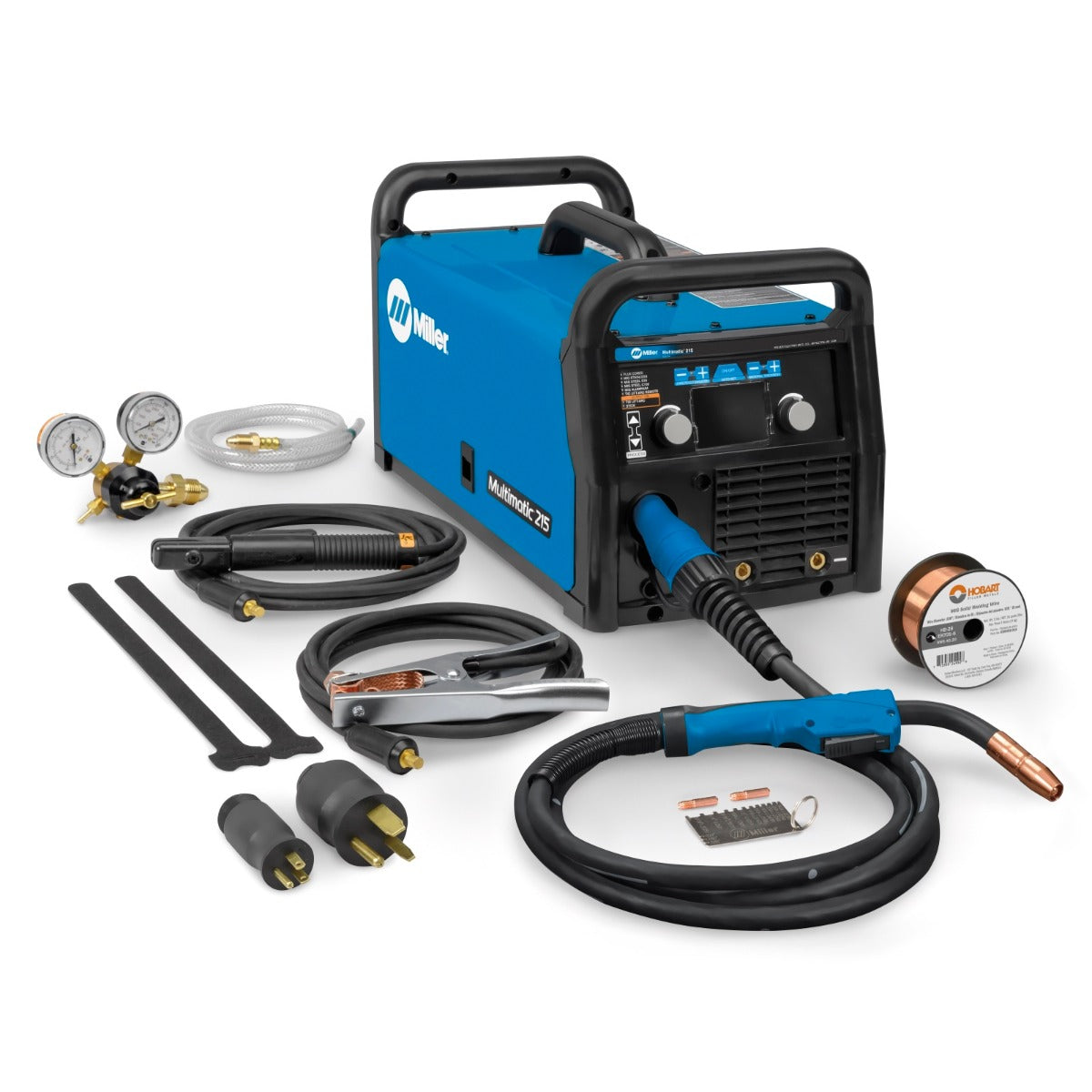

It comes complete with:
• Power cord and MVP plugs for 120 Volt and 240 Volt
• 10Ft MDX 100 MIG gun and cable assembly (Accepts Miller MDX Consumables)
• Electrode holder and 25 mm Dinse-style connector
• Work cable and clamp and 25 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon and AR/CO2 mix
• Hobart spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• Material thickness gauge
• Hook-and-loop cord wraps
The Miller 907693 Multimatic 215 Multiprocess Welder is a versatile and powerful welding machine designed to meet a wide range of welding needs. With its advanced inverter technology and multi-voltage plug (MVP), this welder delivers best-in-class arc characteristics and exceptional portability, all packed into a compact 38-pound frame. Whether you’re a seasoned professional or a DIY enthusiast, the Multimatic 215 is an excellent choice for MIG, Stick, and TIG welding applications. Its ability to switch seamlessly between different welding processes makes it a true multiprocess welder, ensuring you have the right tool for any job.
MPN: MIL907693
UPC: 715959624312
Phase: Single Phase
Switching between MIG and TIG on the Miller Multimatic 215 Multiprocess Welder
Check out the dual solenoid on the Miller Multimatic 215 Multiprocess Welder
MIG Welding on the Miller Multimatic 215 Multiprocess Welder
MIG Welding on the Miller Multimatic 215 Multiprocess Welder (alternate view)
TIG Welding on the Miller Multimatic 215 Multiprocess Welder
