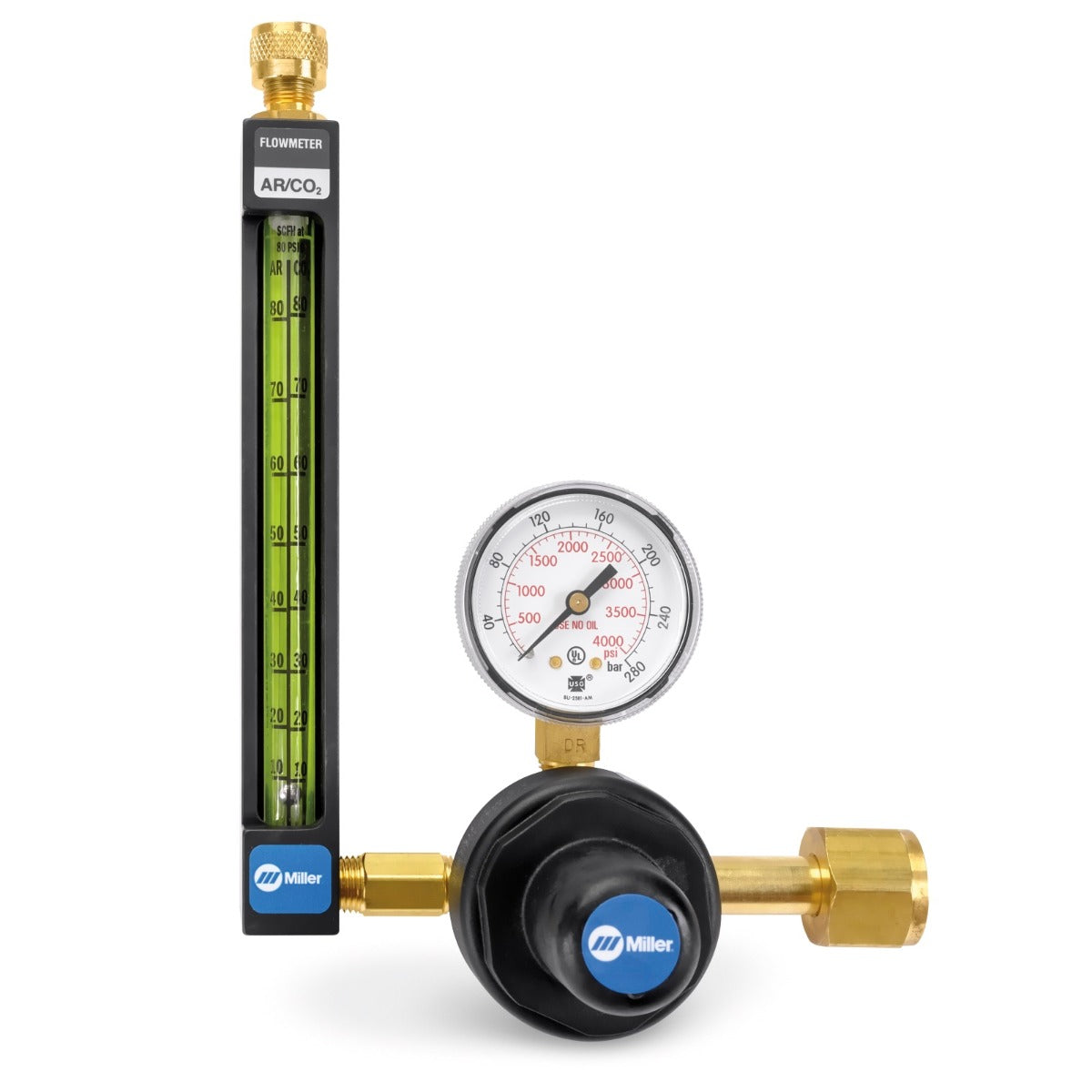

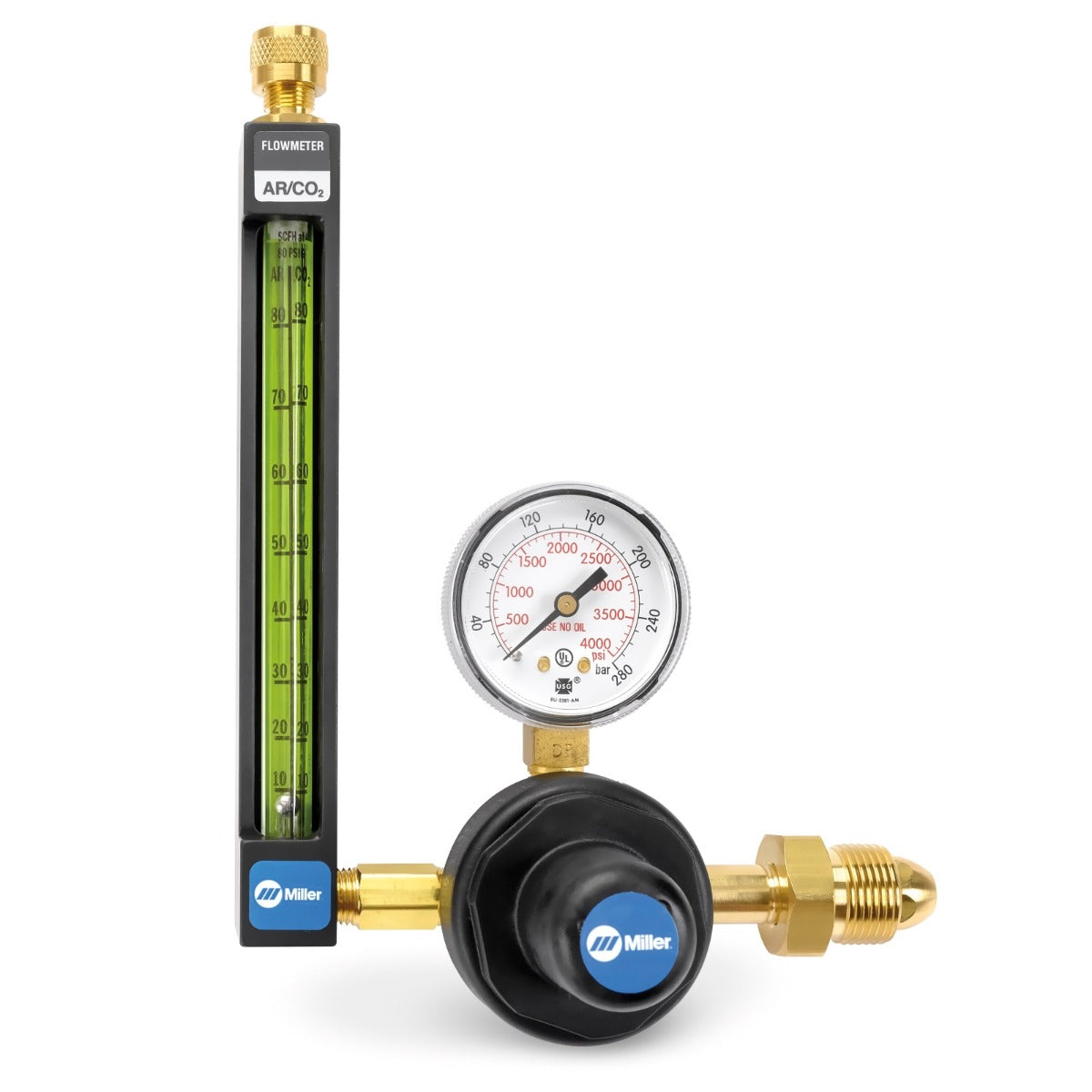

Miller HD Single Stage Argon/CO2 Inert Gas Flowmeter/Regulator (22-XX-580)
Lead time: 1-2 Weeks
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
Quantity:
The Miller heavy-duty 22 series inert gas regulators feature an exclusive self-centering ball guide which provides accurate readings even if the cylinder is tipped. This ensures optimum weld quality and gas savings. Most competitor flowmeters use a non self-centering flow tube ball that tends to float off-center, causing actual gas flow to appear two times greater than indicated. These regulators come with a 3-year warranty
Features
• Rugged Aluminum Protective Housing - protects flow tubes from damage
• Extra-Long Flow Tube - expanded scales are easy to read and accurate within 5 percent of full reading
• Shatter Resistant Flow Tube - polycarbonate resin and features easy-to-read scales for CO2, argon, and argon/co2
• Auto-Reset Pressure Relief Valve - protects regulator from damage due to high-pressure surge
• Sure-Seat Dual Filtered Seat Assembly - protects high-pressure seat from debris for reliable operation
Quick Specs
• Flow Range: Variable Depending on Model Chosen 10-160 SCFH
• Max Inlet Pressure: 3,000 PSI (207 Bar)
• Outlet Connection: 5/8"-18 RH Internal
• CGA: Variable Depending on Model Chosen 580 or 320
Features
• Rugged Aluminum Protective Housing - protects flow tubes from damage
• Extra-Long Flow Tube - expanded scales are easy to read and accurate within 5 percent of full reading
• Shatter Resistant Flow Tube - polycarbonate resin and features easy-to-read scales for CO2, argon, and argon/co2
• Auto-Reset Pressure Relief Valve - protects regulator from damage due to high-pressure surge
• Sure-Seat Dual Filtered Seat Assembly - protects high-pressure seat from debris for reliable operation
Quick Specs
• Flow Range: Variable Depending on Model Chosen 10-160 SCFH
• Max Inlet Pressure: 3,000 PSI (207 Bar)
• Outlet Connection: 5/8"-18 RH Internal
• CGA: Variable Depending on Model Chosen 580 or 320
