Miller Gold Star 302 Stick Welder (903373)

Miller Gold Star 302 Stick Welder (903373)

Sale price$3,368.00 Regular price$4,019.00
Sold out

warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

This product is no longer available. You can find other Miller's welders by clicking here.

BRAND NEW MILLER GOLD STAR 302 STICK WELDER 903373 200/230/460 60HZ, 3 PHASE.

CUT AND PASTE IN YOUR BROWSER FOR FULL SPEC SHEET:

http://www.millerwelds.com/pdf/spec_sheets/DC8-1.pdf FOR POWER REQUIREMENTS.

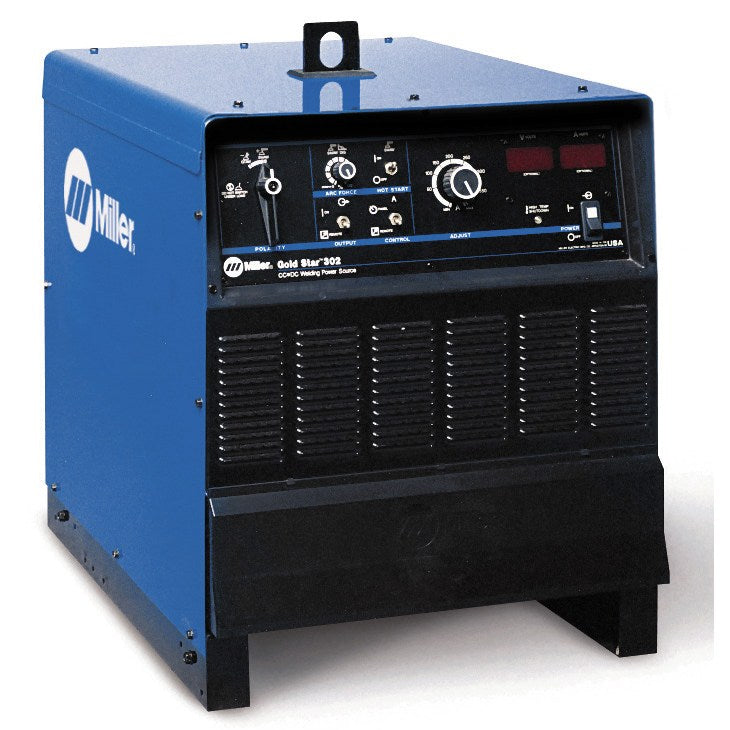

GOLD STAR 302

From steel erection to shipbuilding, from foundries to refineries, the Gold Star Series from Miller is known by welders the world over for rugged, reliable performance and superior arc characteristics.

Fan-On-Demand??__??__??__??_

Internal power source cooling system that only works when needed, keeping internal components cleaner.

Hot Start??__??__??__??_

Used on some Stick (SMAW) machines to make it easier to start difficult-to-start electrodes. Used for arc starting only.

LVC??__??__??__??_ Line Voltage CompensationKeeps output of the power source constant regardless of fluctuation in input power + OR - 10%.

Thermal Overload Protection

Internal components are protected from damage by thermal overload protection which automatically shuts down the unit if duty cycle is exceeded or air flow and cooling are restricted.

Features

Gold Star models are available in 300, 450 and 650 amps. Choose the model that best suits your welding application whether its Stick, TIG or Air Carbon Arc gouging.

Built-in arc control for Stick welding allows operators more flexibility when welding in tight areas where sticking electrodes is a problem.

Hot Start??__??__??__??_ makes it easy to start difficult electrodes.

Simple control panel provides easy, efficient operation.

Unique Fan-On-Demand??__??__??__??_ cooling system operates only when needed. Reduces contaminants drawn into the machine and excess noise in work areas.

Automatic thermal overload protection with indicator light.

Enclosed circuit board provides additional protection by eliminating contaminants which cause premature failure of components.

Power efficient for exceptional value and return on you investment.

Power cord strain relief.

Optional digital voltmeter and ammeter.

Remote control capability allows operators fine tuning capability at an extended distance.

List Price

Base Model

Starting at:$ 4,019.00 (US $)

PROCESSES (MOST REQUIRE OPTIONAL EQUIPMENT)

Stick (SMAW)

TIG (GTAW)

Air Carbon Arc (CAC-A) thru 1/4" carbons

Flux Cored (FCAW)

MIG Spray Transfer (GMAW) Welding with

Voltage-Sensing Feeder

Heavy Industrial Applications

Steel Building Erection

Pipe Welding

Maintenance and Repair

Shipbuilding

Construction

Foundries

Input Power Requires 3-Phase Power

Rated Output 300A at 32 VDC, 60% Duty Cycle

Output Power Range 15 - 395 Amps

Net Weight 352 lb (160 kg)
