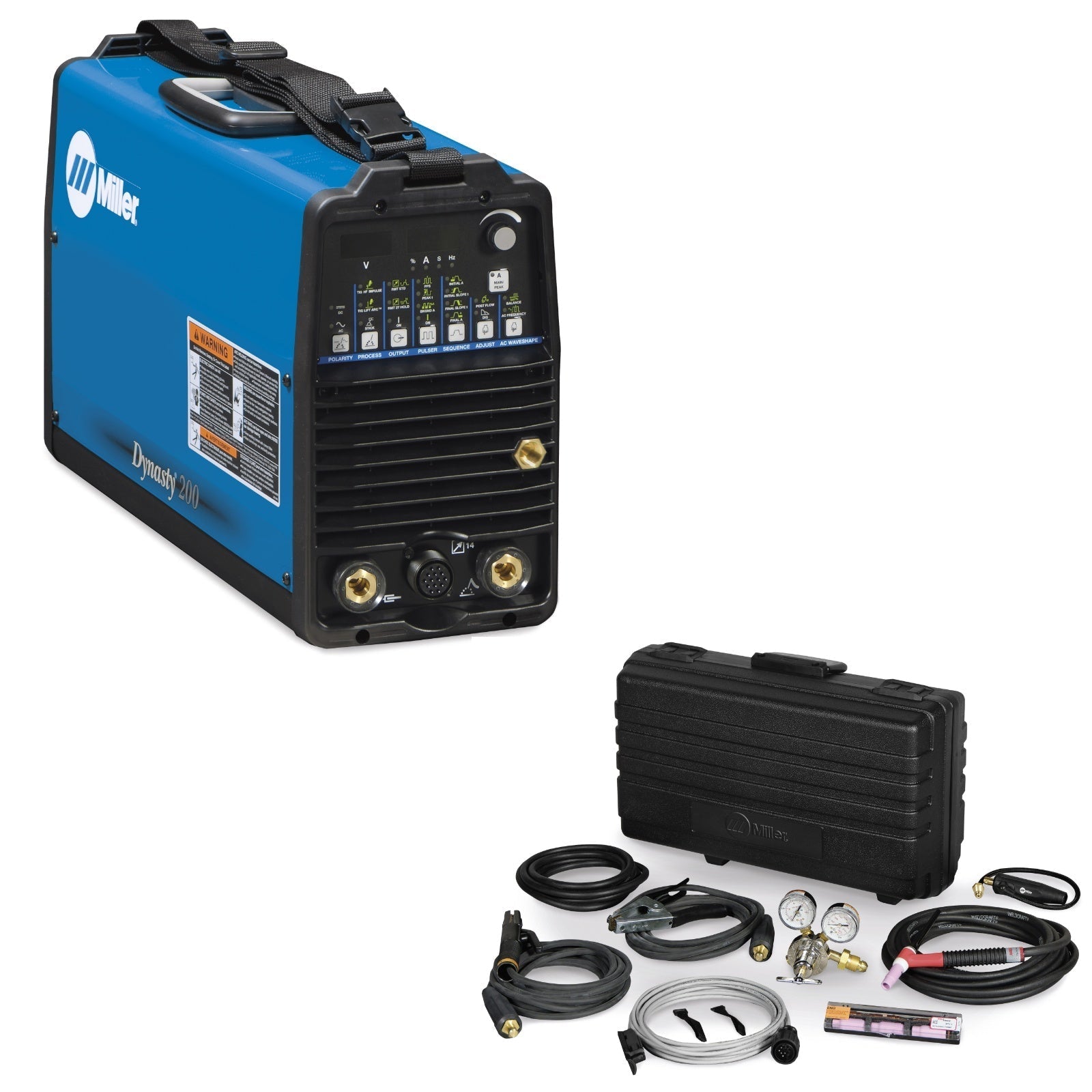

Miller Dynasty 200 DX TIG Welder and Air-Cooled Contractor Kit with Fingertip Control (951175)
The Miller Dynasty 200 DX TIG Welder and Air-Cooled Contractor Kit with Fingertip Control offers pulse on/off, pulse frequency, peak duty cycle, background amperage, initial amperage, initial slope time, final slope time and final amperage control.
Wireless Remote Control Compatible
Improve productivity, eliminate clutter and cord tangles in the work area. Eliminate cord failure and associated downtime/repair costs and extend the operator's welding range without adding cord extensions.
Lift-Arc
Lift-Arc starting provides x-ray clean welds in AC or DC arc starting without the use of high frequency.
Blue Lightning - High Frequency Arc Starter
For TIG non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters. Easy to set up and increases productivity.
Auto-Line Power Management Technology
Allows for any input voltage hookup (115-460 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable.
AC Waveforms
• Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds.
• Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action.
• Sine wave is for customers that like a traditional arc. It is quiet with good wetting.
• Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.
AC and DC TIG Features
• Extended AC balance (30-99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.
• AC frequency (20-250 hz) controls the width of the arc cone and the force of the arc.
• DC TIG provides exceptionally smooth and precise arc for welding exotic materials.
Stick Features (AC/DC)
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010.
• Hot Start adaptive control provides positive arc starts without sticking.
• AC frequency control adds additional stability when Stick welding in AC for smoother welds.
• Low OCV Stick is a simple design that reduces open-circuit voltage to 5-10 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.

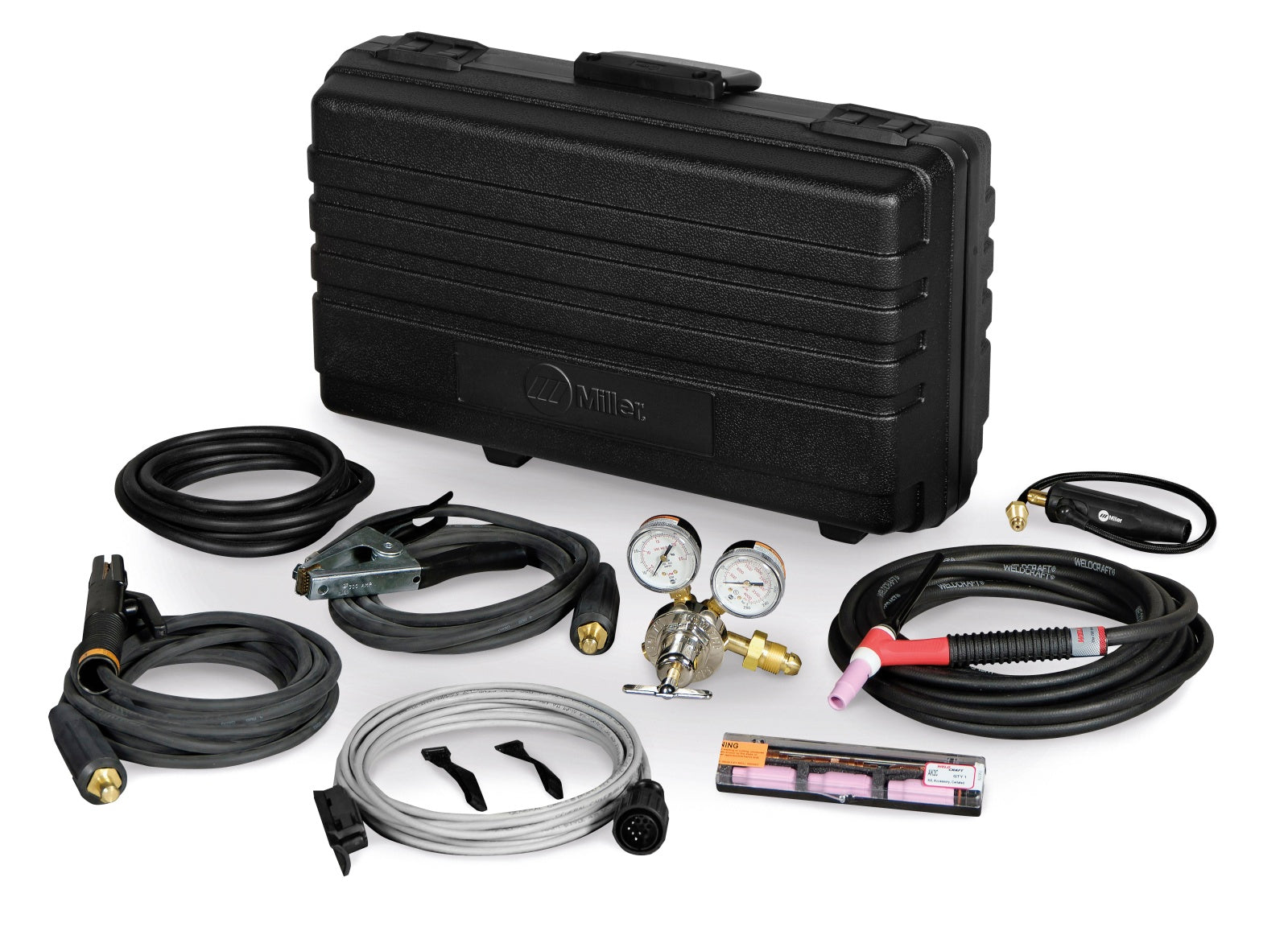

Contractor Kit (195055) includes:
• RCCS-14 fingertip control
• Protective carrying case
• 150 amp Weldcraft 25 ft (7.6 m) WP17 TIG torch with adapter
• Smith flow gauge regulator with gas hose
• AK2C accessory kit (.040", 1/16" and 3/32" cerium tungsten, collets and cups)
• 200 amp, 15 ft (4.6 m) stick electrode holder with Dinse connector
• Work clamp with 15 ft (4.6 m) #4 cable and Dinse connector
Comes complete with:

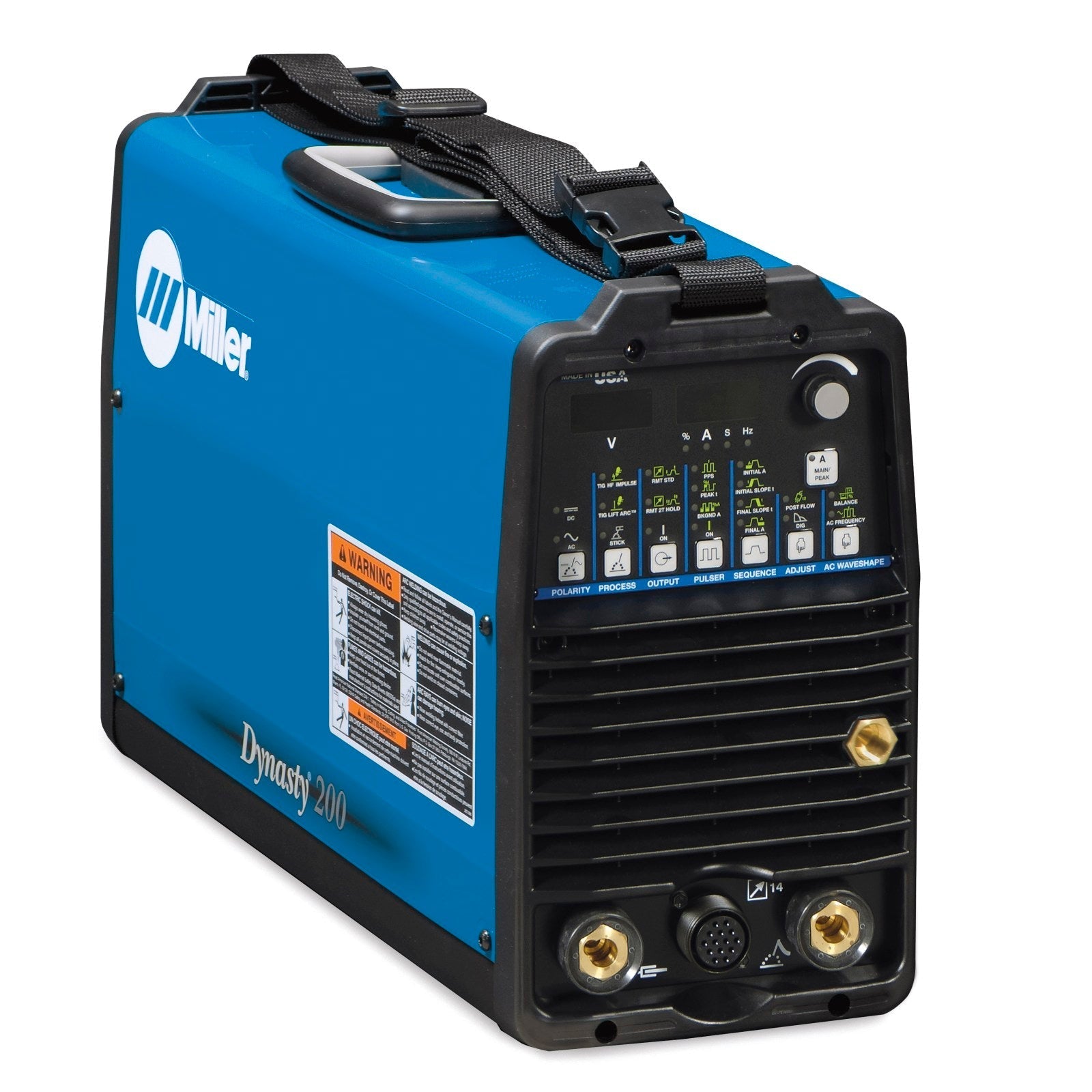

• Dynasty 200 DX power source
• Quick Reference Guide: English | Spanish
• 8 ft (2.4 m) primary cord
• DVD set-up video
• (2) Dinse 50 mm connectors
• Air-cooled torch adapter (195378)
• Adjustable shoulder strap
Wireless Remote Control Compatible
Improve productivity, eliminate clutter and cord tangles in the work area. Eliminate cord failure and associated downtime/repair costs and extend the operator's welding range without adding cord extensions.
Lift-Arc
Lift-Arc starting provides x-ray clean welds in AC or DC arc starting without the use of high frequency.
Blue Lightning - High Frequency Arc Starter
For TIG non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters. Easy to set up and increases productivity.
Auto-Line Power Management Technology
Allows for any input voltage hookup (115-460 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable.
AC Waveforms
• Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds.
• Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action.
• Sine wave is for customers that like a traditional arc. It is quiet with good wetting.
• Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.
AC and DC TIG Features
• Extended AC balance (30-99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.
• AC frequency (20-250 hz) controls the width of the arc cone and the force of the arc.
• DC TIG provides exceptionally smooth and precise arc for welding exotic materials.
Stick Features (AC/DC)
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010.
• Hot Start adaptive control provides positive arc starts without sticking.
• AC frequency control adds additional stability when Stick welding in AC for smoother welds.
• Low OCV Stick is a simple design that reduces open-circuit voltage to 5-10 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
Contractor Kit (195055) includes:
• RCCS-14 fingertip control
• Protective carrying case
• 150 amp Weldcraft 25 ft (7.6 m) WP17 TIG torch with adapter
• Smith flow gauge regulator with gas hose
• AK2C accessory kit (.040", 1/16" and 3/32" cerium tungsten, collets and cups)
• 200 amp, 15 ft (4.6 m) stick electrode holder with Dinse connector
• Work clamp with 15 ft (4.6 m) #4 cable and Dinse connector
Comes complete with:
• Dynasty 200 DX power source
• Quick Reference Guide: English | Spanish
• 8 ft (2.4 m) primary cord
• DVD set-up video
• (2) Dinse 50 mm connectors
• Air-cooled torch adapter (195378)
• Adjustable shoulder strap
MPN: MIL951175
UPC: 715959420396
Phase: Both
