Miller Bobcat 200 Air Pak Diesel Welder Generator (907760)
Miller Bobcat 200 Air Pak Diesel Welder Generator (907760)
Miller Bobcat 200 Air Pak Diesel Welder Generator (907760)
Miller Bobcat 200 Air Pak Diesel Welder Generator (907760)
Miller Bobcat 200 Air Pak Diesel Welder Generator (907760)

Miller Bobcat 200 Air Pak Diesel Welder Generator (907760)

Sale price$23,932.00 Regular price$27,643.00
Save $3,711.00

Lead time: 1-2 Weeks

Quantity:
warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

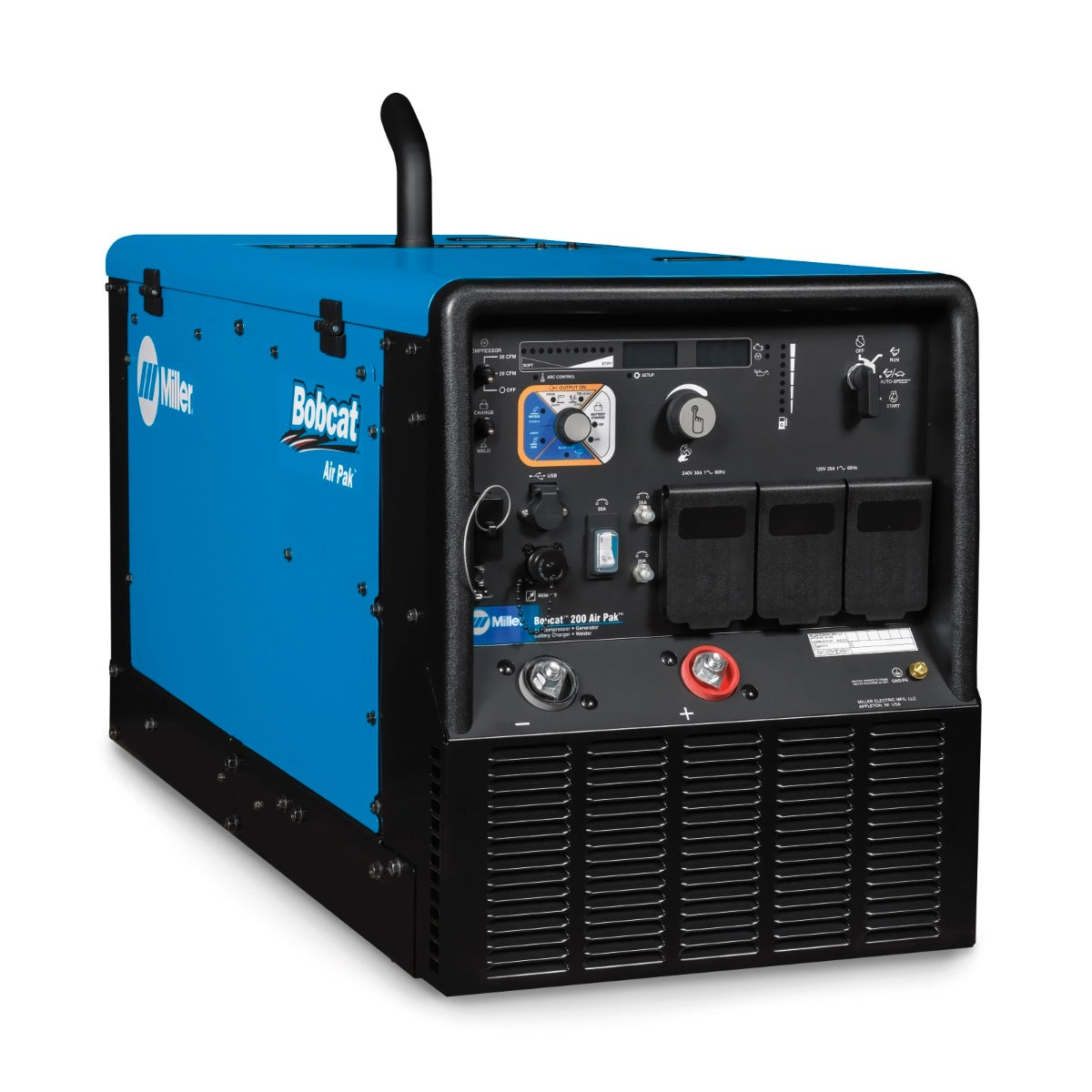

The Miller Bobcat 200 Air Pak Diesel welder generator features a built in air compressor along with battery charge capabilities. This engine drive delivers up to 210 amps of DC stick welding power while generating 6,500 watts of continuous power. The Bobcat 200 Diesel has a 19 HP Kubota D722 engine with a 60 amp alternator and electronic governor. The Diesel units come with a 7 gallon fuel tank and a standard engine block heater,

The Bobcat 200 air paks are designed for work-truck operators looking to consolidate or improve reliability of their power equipment. This unit features a compact lightweight footprint, reducing weight by up to 600 lbs over competitor units. These units feature Miller's Auto-Speed technology, whereby the engine speed is matched to the weld and battery charge demands, thus reducing fuel consumption, maintenance costs, and overall noise. The battery charge/crank assist produces up to 100 amps of DC current to quickly charge 12 and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist.

The 200 Diesel comes with a 30 CFM rotary-screw compressor that can power virtually any air tool, including most 3/4 inch impact wrenches. The rotary-screw compressor provides air on demand without the need to recover so you can finish your tasks without down-time. This compressor provides 20 CFM of output at idle or 30 CFM at full speed. The typical pressure for the compressor is 80-175 PSI, yet can reach a max output of 200 PSI. The compressor will automatically conduct a safety shutdown if the compressor reaches 200 PSI.

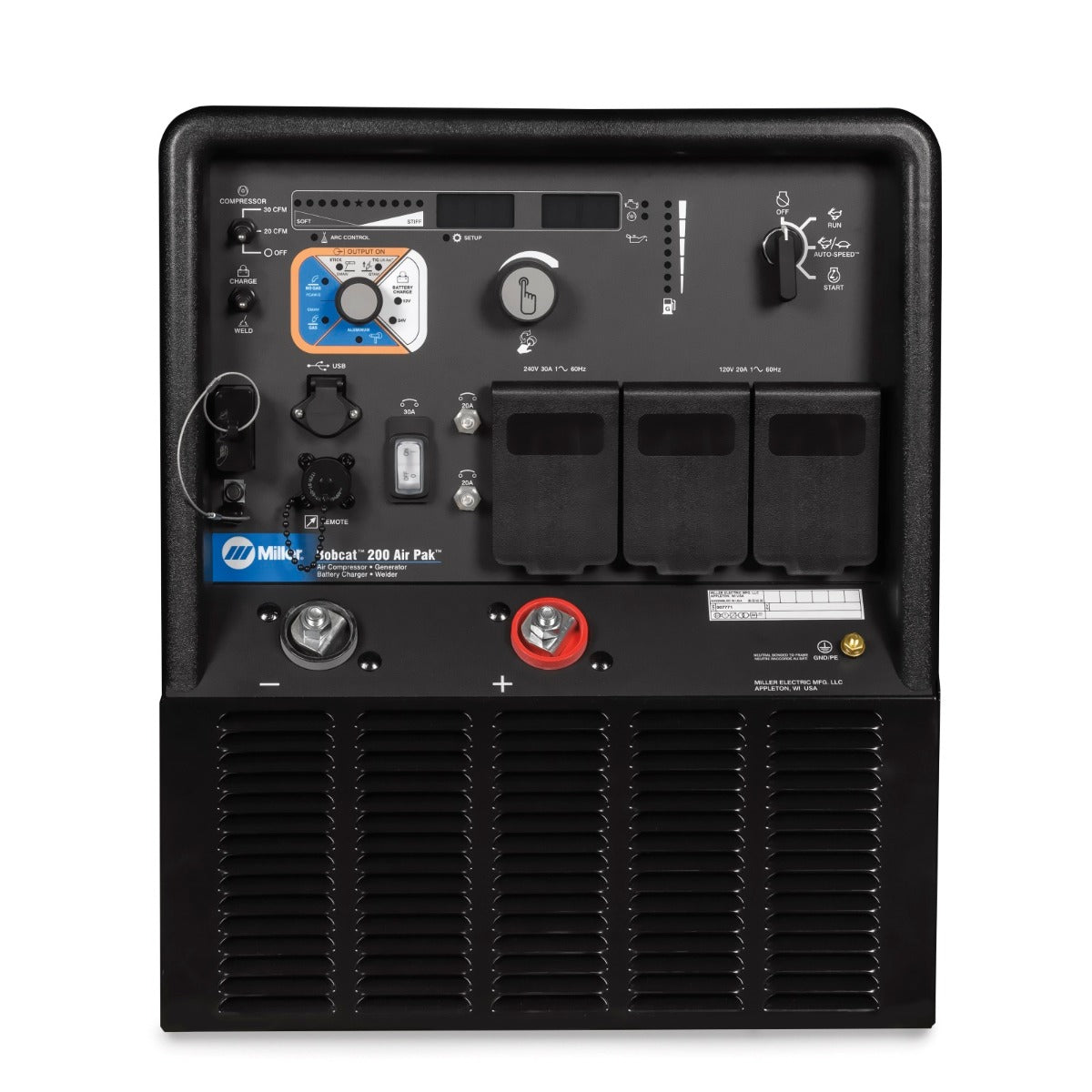

Control Panel Features
• Air compressor switch and indicator lights
• Battery charge/crank assist switch
• Battery charge/crank assist receptacle
• Maintenance indicator lights
• Engine control switch
• (4) 120V and (1) 240V receptacles

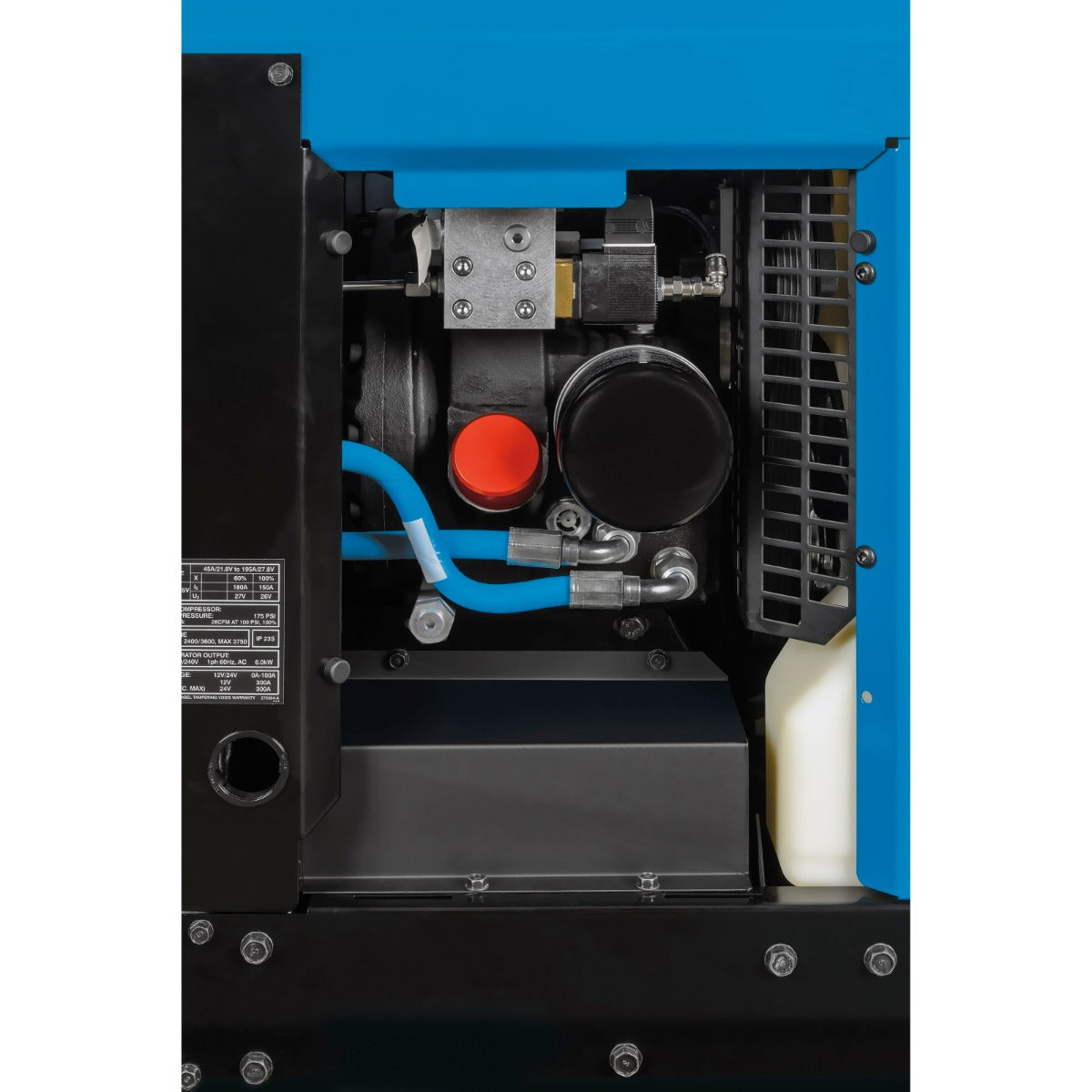

Air Compressor Specs
• Rotary screw with electric clutch for on/off
• 30 CFM delivery at 3,600 RPM
• Working pressure 80-175 PSI
• 100% Duty Cycle
• 2 quart oil capacity
• 200 PSI high pressure automatic shutdown (safety prevention)

Generator Specs
• Generator Power: 6,500 Continuous Watts
• Sound Levels: 66 db at idle | 73 db at high speed
• DC Stick Amperage Range: 30-210A
• Duty Cycle: 100% @ 120A | 20% @ 210A
• Dims: 28.9" H x 20" W x 47.25" D (30" Height with Exhaust)
• Weight: 618 lbs
