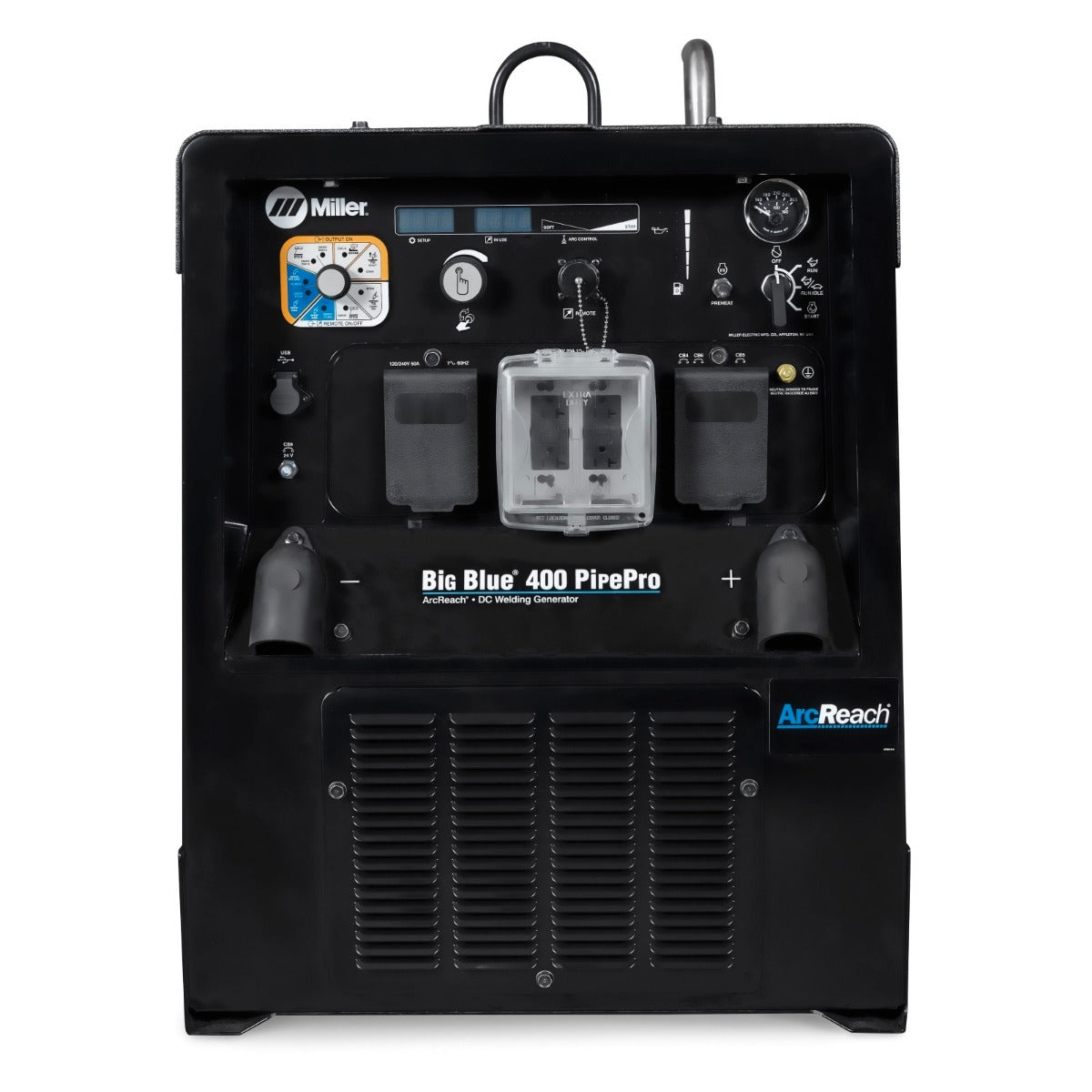

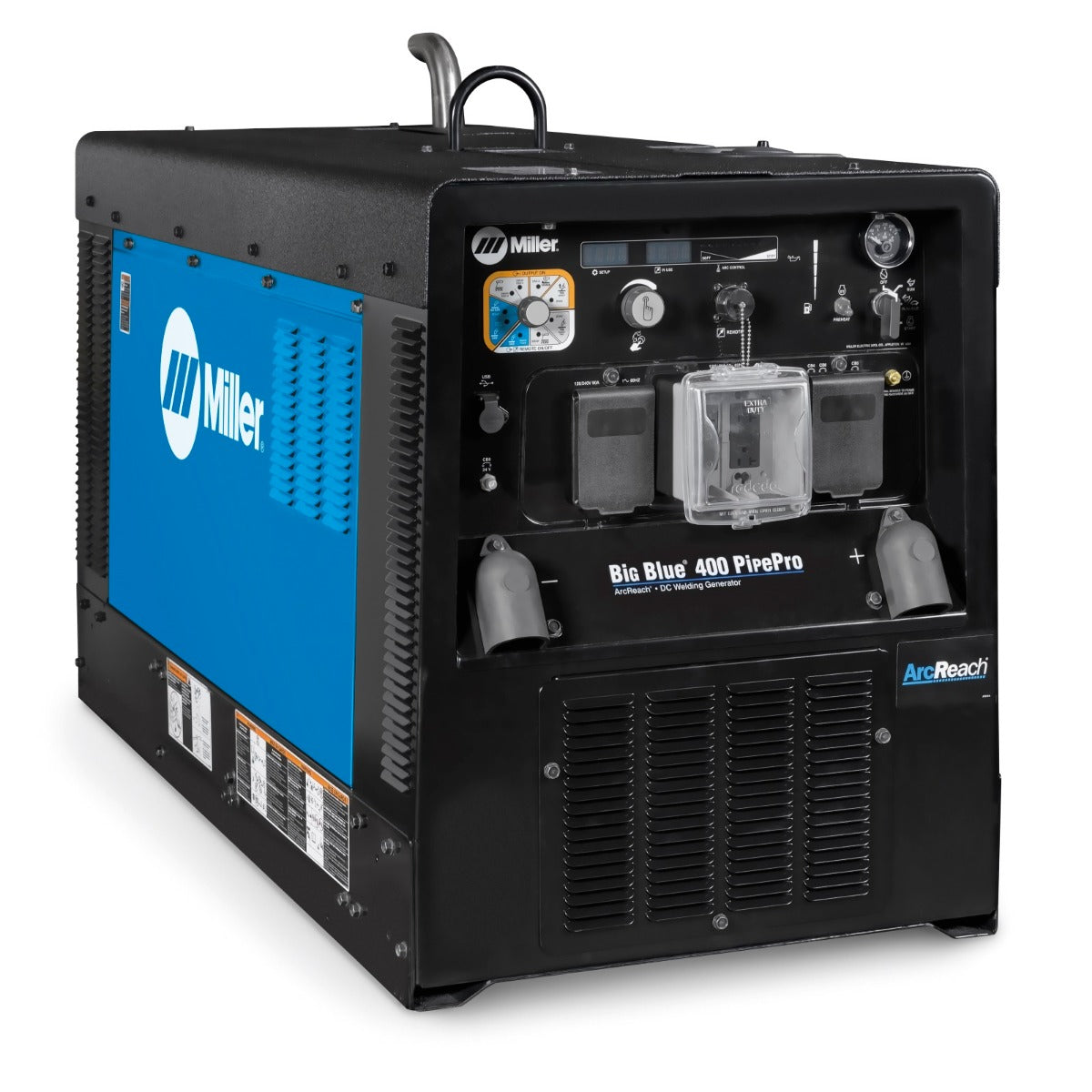

Miller Big Blue 400 PipePro Mitsubishi Welder/Generator (907703001)
This model is no longer available. The suggested replacement is the 907805001.
The Miller Big Blue 400 Pipe Pro series diesel welder generators are designed for the transmission pipeline welder. The 400 Pipe Pro offers superior downhill stick arc characteristics, as well as MIG/flux-cored capabilities for the most demanding pipeline jobs. The Pipe Pro series generators feature a "Line-X" top cover which can be used as a workbench due to its superior impact rating and abrasion protection.
ArcReach Benefits
• Cable Length Compensation (CLC)
• No Expensive Control Cords
• Improved Jobsite Safety
• Maximize Fleet Compatibility with ArcReach Power Sources
• More Operator Control
Features
• Digital Meters with SunVision Technology
• Simple-to-set Controls
• Industrial USB Port
• Adjustable Hot Start
• Automatic Engine Idle
• 120V Block Heater
• Low OCV Stick
• Thermal Overload Protection
• Standard 14-Pin Receptacle
• HD Powder Coat resists Rust and Corrosion
Quick Specs
• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output: DC Stick 20-400A | DC TIG 20-400A | FCAW/MIG 14-40V
• Generator Output: 12,000W Peak | 10,000W Continuous
• Sound Level: 68.7 dB @ Idle | 72.1 dB @ Weld
• Dimensions: 32" H x 26.25" W x 56" L
• Weight: 993 lbs
The Miller Big Blue 400 Pipe Pro series diesel welder generators are designed for the transmission pipeline welder. The 400 Pipe Pro offers superior downhill stick arc characteristics, as well as MIG/flux-cored capabilities for the most demanding pipeline jobs. The Pipe Pro series generators feature a "Line-X" top cover which can be used as a workbench due to its superior impact rating and abrasion protection.
ArcReach Benefits
• Cable Length Compensation (CLC)
• No Expensive Control Cords
• Improved Jobsite Safety
• Maximize Fleet Compatibility with ArcReach Power Sources
• More Operator Control
Features
• Digital Meters with SunVision Technology
• Simple-to-set Controls
• Industrial USB Port
• Adjustable Hot Start
• Automatic Engine Idle
• 120V Block Heater
• Low OCV Stick
• Thermal Overload Protection
• Standard 14-Pin Receptacle
• HD Powder Coat resists Rust and Corrosion
Quick Specs
• Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc
• Output: DC Stick 20-400A | DC TIG 20-400A | FCAW/MIG 14-40V
• Generator Output: 12,000W Peak | 10,000W Continuous
• Sound Level: 68.7 dB @ Idle | 72.1 dB @ Weld
• Dimensions: 32" H x 26.25" W x 56" L
• Weight: 993 lbs
MPN: MIL907703001
UPC: 715959657600
Phase: Single Phase
