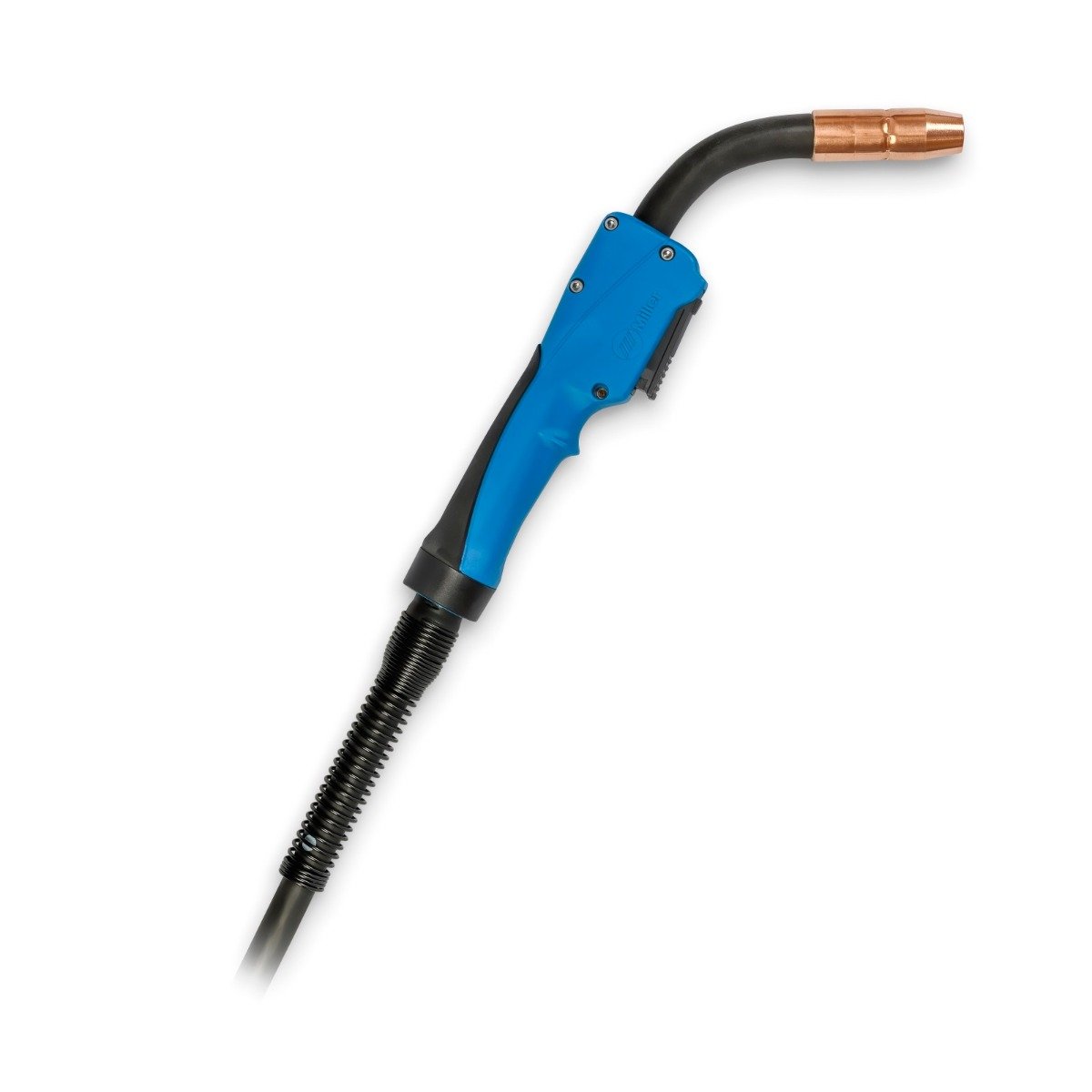

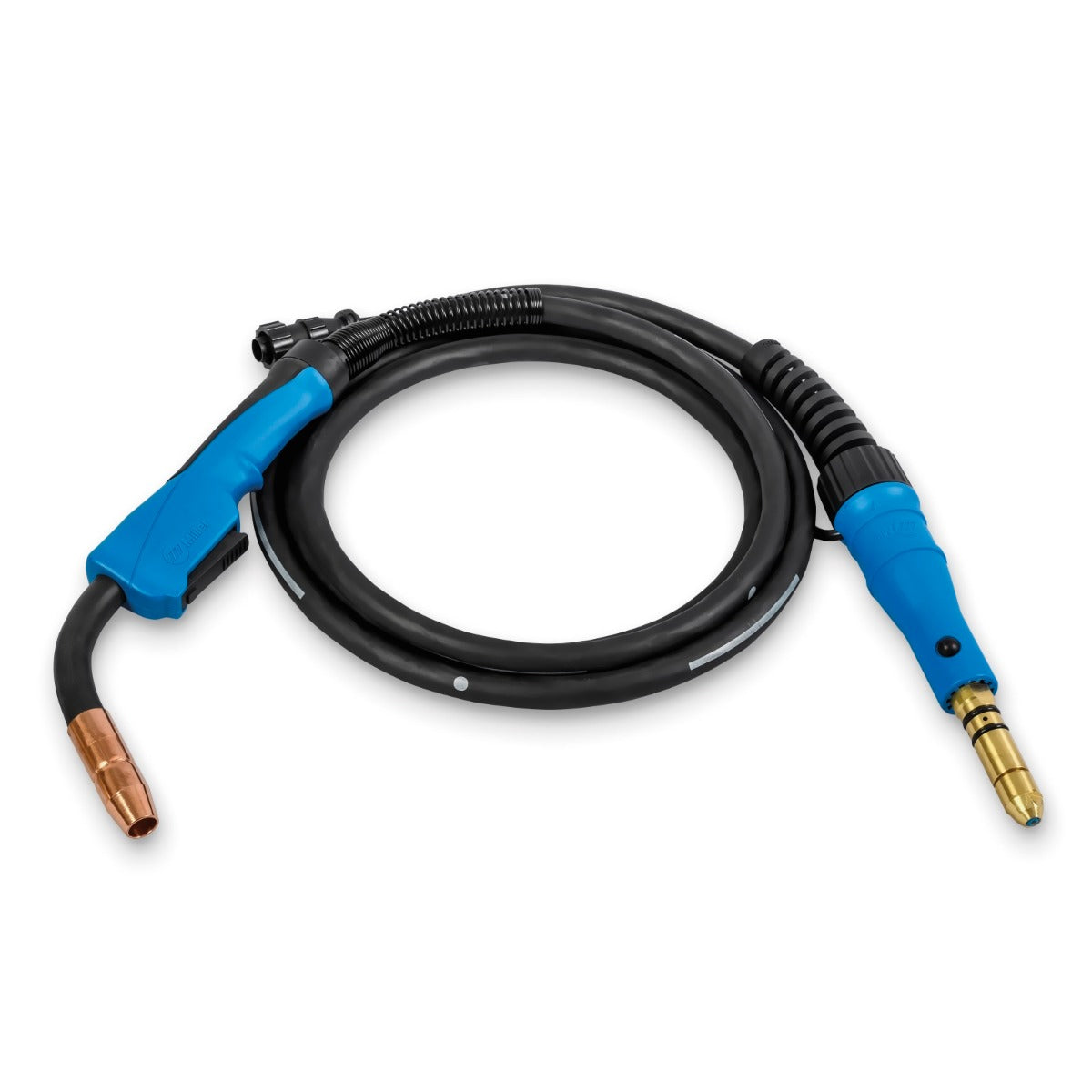

Miller MDX 100 MIG Gun (1770028)
The Miller MDX 100 MIG gun has been redesigned with a few new features. The new ergonomic handle features and overmolding for improved grip and a rear swivel strain relief. The gun’s AccuLock consumables with dual-locked, front-loading liner ensures smooth, consistent wire feeding for reliable operation.
MDX 100 Features
• 10 foot length
• .030-.035 Liner Included
• AccuLock Consumables
• 100% Duty Cycle @ 100A CO2 | 60% With Mixed Gas
Compatible With
• Millermatic 141 and 211
• Multimatic 215 and 220 AC/DC

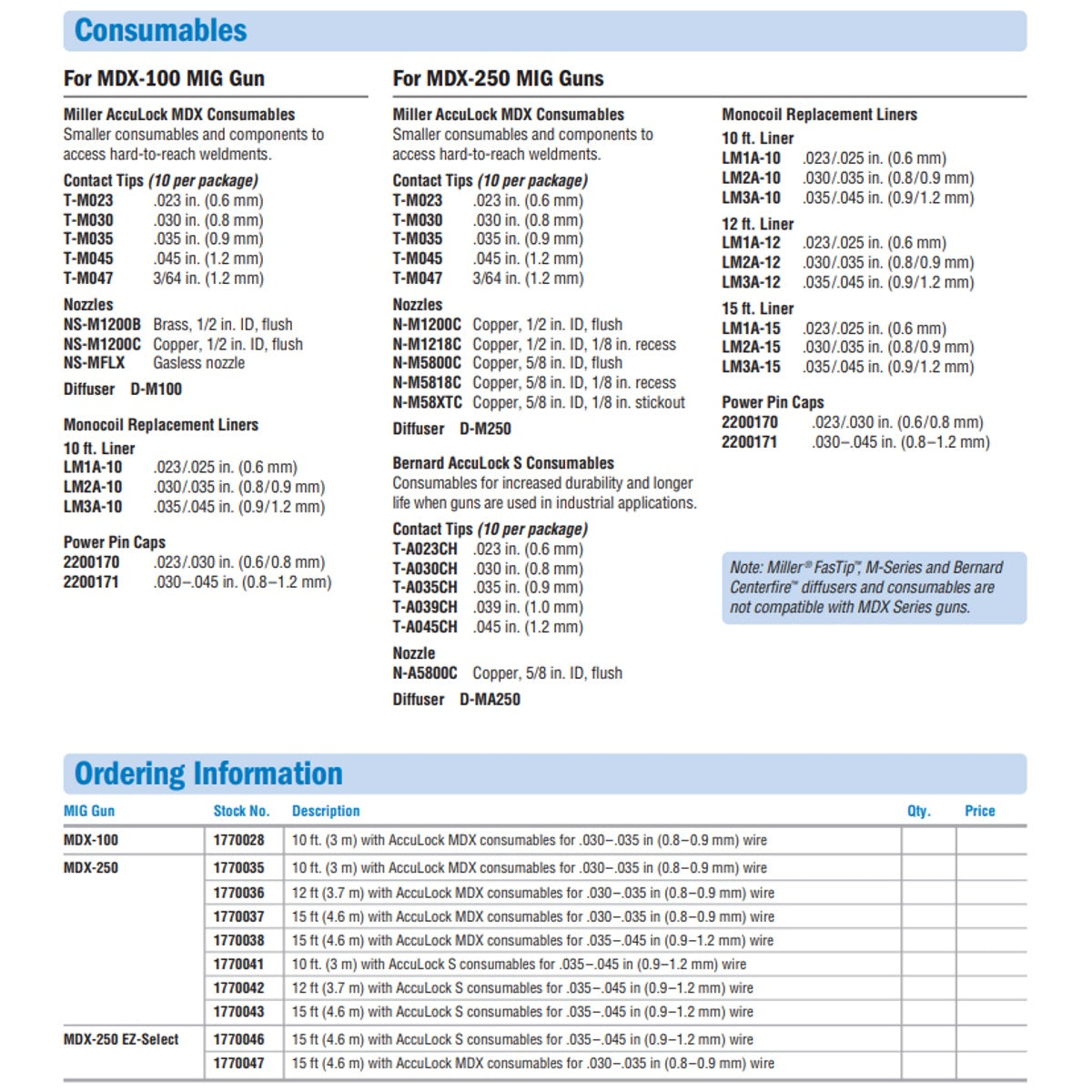

Miller AccuLock MDX series consumables are designed to maximize wire feedability and simplify consumables replacement.
AccuLock MDX Features
Superior Feeding - The front-loading liner is centered and locked at both ends of the gun (without the use of set screws) to ensure smooth wire delivery to the contact tip. Plus, error-proof liner trimming ensures accurate replacement every time for reduced burnbacks, birdnests and erratic arc/wire chatter.
Long-Life Consumables - Tapered mating surfaces between the AccuLock contact tip and gas diffuser lock tips in place for maximized electrical conductivity and longer tip life.
Threaded Nozzle - Stays tight during use and cleaning due to the steel retaining ring on the diffuser.
MDX 100 Features
• 10 foot length
• .030-.035 Liner Included
• AccuLock Consumables
• 100% Duty Cycle @ 100A CO2 | 60% With Mixed Gas
Compatible With
• Millermatic 141 and 211
• Multimatic 215 and 220 AC/DC
Miller AccuLock MDX series consumables are designed to maximize wire feedability and simplify consumables replacement.
AccuLock MDX Features
Superior Feeding - The front-loading liner is centered and locked at both ends of the gun (without the use of set screws) to ensure smooth wire delivery to the contact tip. Plus, error-proof liner trimming ensures accurate replacement every time for reduced burnbacks, birdnests and erratic arc/wire chatter.
Long-Life Consumables - Tapered mating surfaces between the AccuLock contact tip and gas diffuser lock tips in place for maximized electrical conductivity and longer tip life.
Threaded Nozzle - Stays tight during use and cleaning due to the steel retaining ring on the diffuser.
MPN: MIL1770028
UPC: 662991614408
