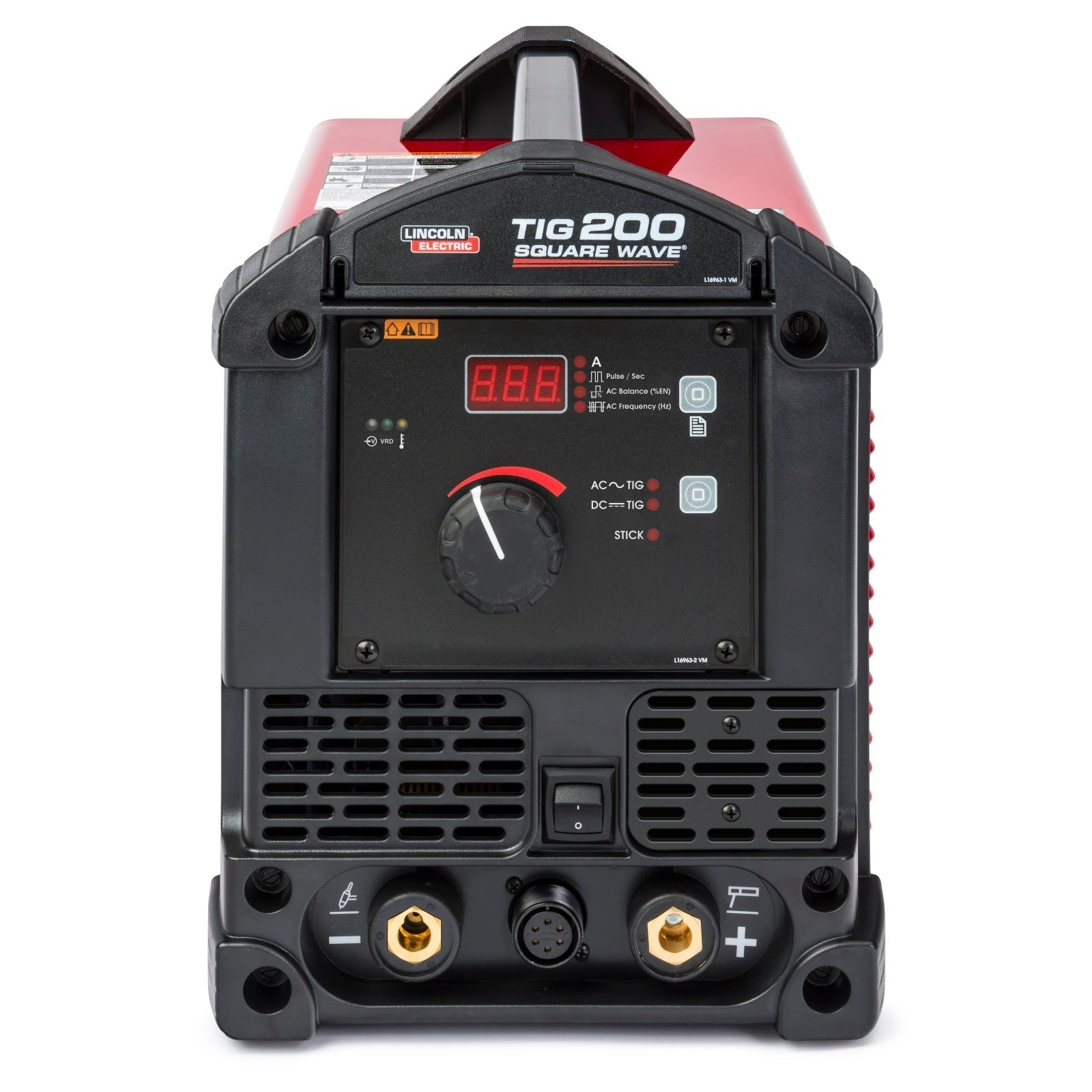

Lincoln Square Wave TIG 200 Welder (K5126-1)
The Lincoln Square Wave TIG 200 Welder (K5126-1) is the hottest TIG welder on the market right now. Operators of all skill levels are flocking to the Lincoln Electric TIG 200 Square Wave thanks to its easy setup, ease of use, and the ability to dial in the settings to adapt to nearly any application. No matter your skill level, you won’t be disappointed. The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel, and chrome-moly. A user-friendly interface enables the operators to set it, forget it, and weld it.

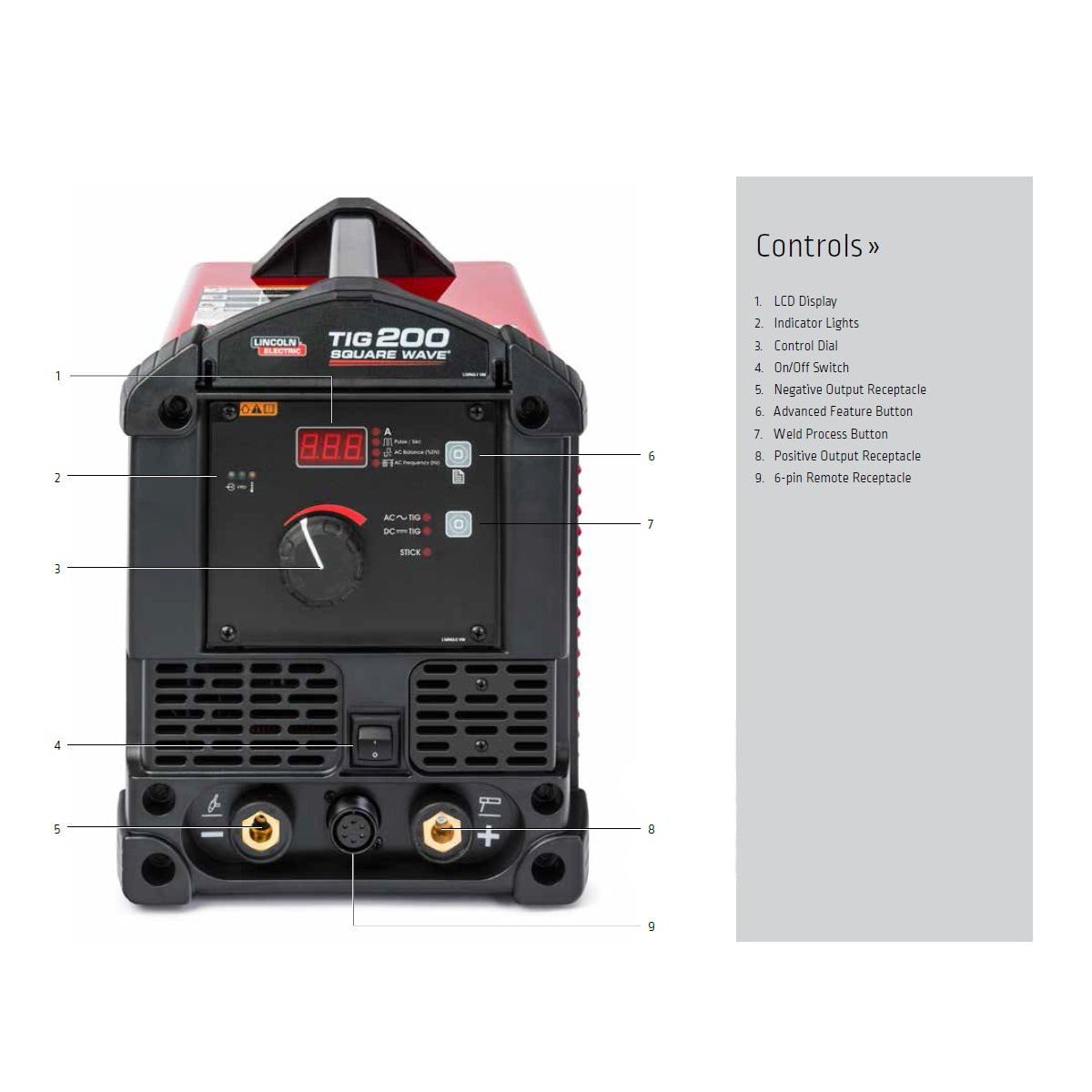

The Lincoln Square Wave 200 has advanced features, yet is easy to use with its simple user interface & pulse feature. It has a high-frequency starting, which makes it an ideal aluminum tig welder. It features built-in settings for more cleaning action & allows for wider or tighter arc configurations. The Lincoln TIG Welder 200 offers both TIG and stick functionality. You can take this welder on the road since it only weighs 46 pounds & utilizes both 120 V and 230 V plugs. This Square Wave 200 will TIG weld up to 3/16" Aluminum or 3/16" Steel.Features on the Lincoln TIG 200::
• AC/DC TIG & Stick welding capabilities
• 200 A output
• Extremely portable - Only 46 pounds
Lincoln 200 TIG Quick Specs:
• Input Power: 120 or 230 V, Single Phase, 60 Hz
• Output Range: 120 V = TIG (10-125 A), Stick (10-110 A)
• Output Range: 230 V = TIG (10-200 A), Stick (10-170 A)
• Rated Output: 230 V = TIG (200 A @ 25%), (130 A @ 60%)
• AC Frequency Range: 60-150 Hz
• AC Balance: 60-90 (%Electrode Negative)
• Pulse: 0.1-20 (Pulses per Second)
• Weight: 46 pounds (21kg)
• Dimensions: 14"h X 10.75"w X 19.25"d (358 X 282 X 502mm)

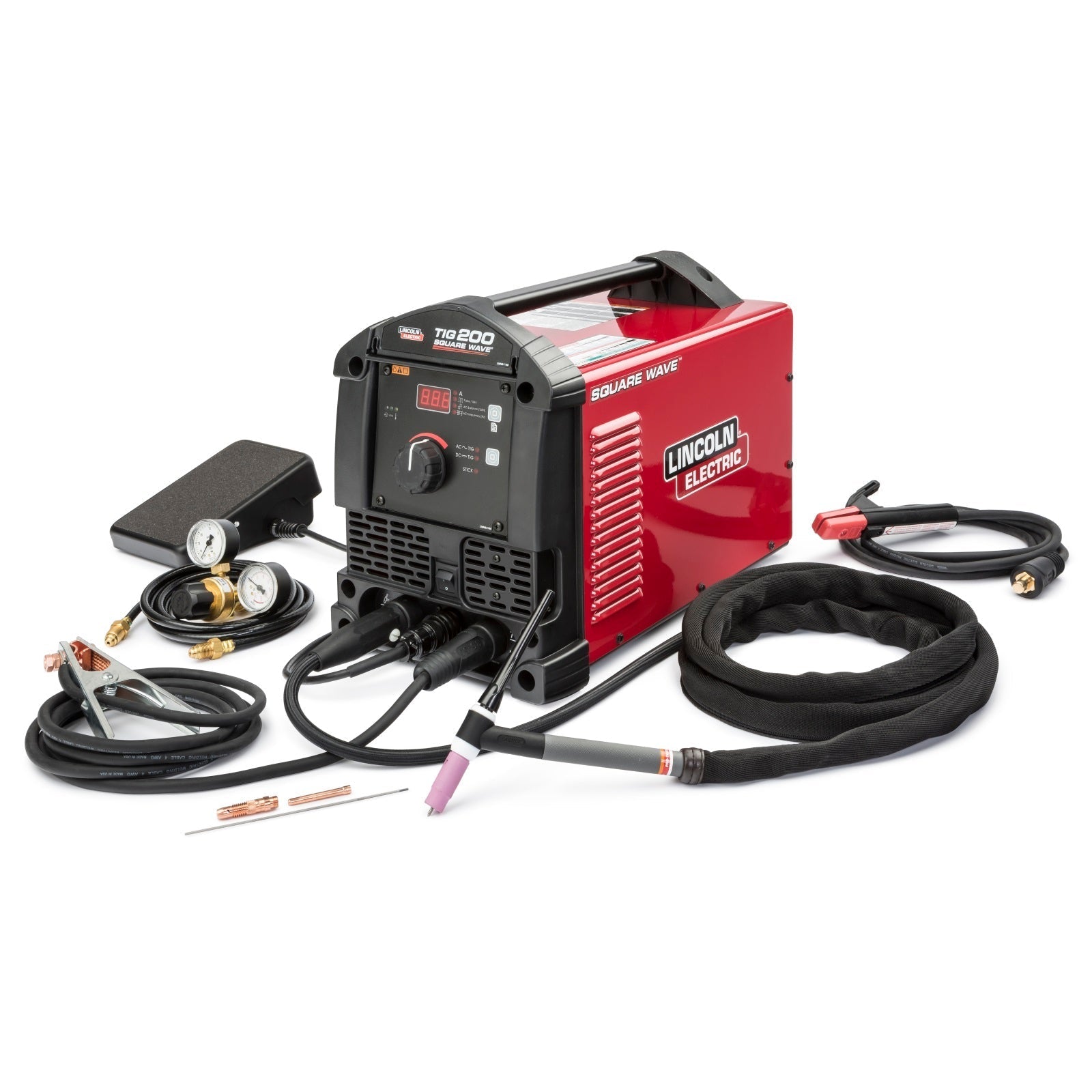

Includes:
• Square Wave 200 Welder
• PTA-17 Series 150 A Air-cooled TIG torch w/ flexible head & ultra-flex cable assembly
• Foot Amptrol
• Regulator/Flowmeter with gas hose
• Stick Electrode Holder
• Ground Clamp
• 120/230 V Input Cords
MPN: LINK5126-1
UPC: 015082616285
