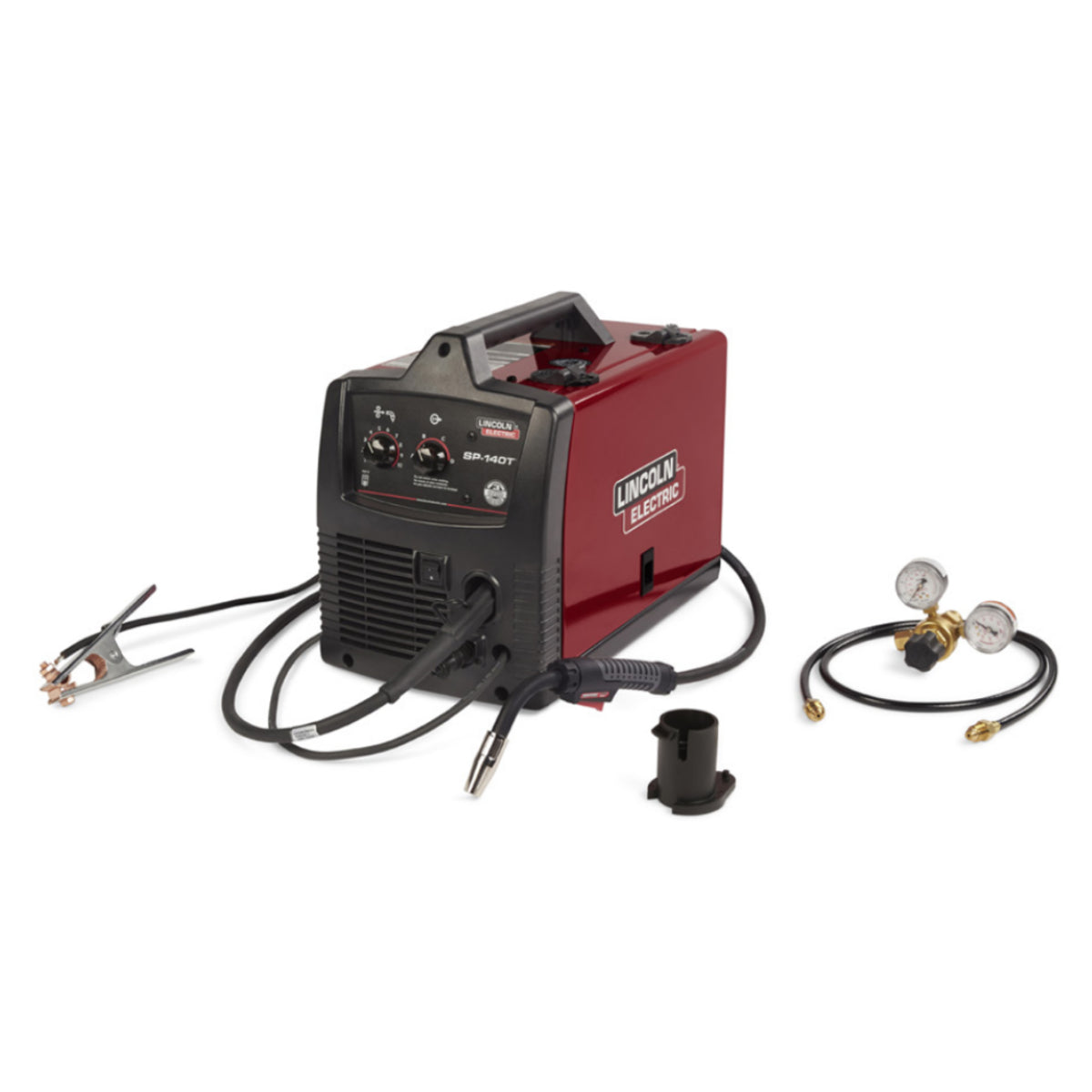

Lincoln SP 140T MIG Welder Pkg (K5261-1)
The Lincoln SP 140T MIG Welder is a great little 120 Volt compact wire welder; perfect for that welding project in your garage, on the farm or in your autobody shop. It's forgiving arc and simple tapped voltage control make dialing in your application easy. You'll also love the wide amp welding output range (30 - 140 amps).
Superior Arc Performance - Forgiving arc and simple tapped voltage control make dialing in your application easy. Smooth arc starts with minimal spatter. Wide 30-140 amp welding output range.
Precise Wire Drive - Precision full adjustment drive system reduces chance of wire tangling and crushing. Brass-to-Brass gun connections for enhanced conductivity. Large industrial closed design drive motor for improved torque and trouble-free performance.
No Hassle Tool-less Design – For wire spool mounting, wire drive service and polarity changes.
Spool Gun Capable – Add the economical Magnum 100SG spool gun for enhanced aluminum wire feeding performance.
Toughest PC Board Protection in the industry Potted to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance.
Includes
• SP-140T MIG Power Source
• Magnum PRO 100L gun, 10 ft. (3.0 m)
• Gas Nozzle | Diffuser | Liner
• .025 - .030 and .035 Smooth Drive Rolls
• Work Cable and Clamp
• Adjustable Gas Regulator and Hose
• Spindle Adapter
Quick Specs
• Input Power - 120V | Single Phase | 20A Draw
• Duty Cycle - 20% @ 90A
• Output Range - 30-140A
• Wire Feed Speed - 50-500 IPM
• Dimensions - 13.6" H x 10.4" W x 17.9" L
• Weight - 49.5 lbs
Superior Arc Performance - Forgiving arc and simple tapped voltage control make dialing in your application easy. Smooth arc starts with minimal spatter. Wide 30-140 amp welding output range.
Precise Wire Drive - Precision full adjustment drive system reduces chance of wire tangling and crushing. Brass-to-Brass gun connections for enhanced conductivity. Large industrial closed design drive motor for improved torque and trouble-free performance.
No Hassle Tool-less Design – For wire spool mounting, wire drive service and polarity changes.
Spool Gun Capable – Add the economical Magnum 100SG spool gun for enhanced aluminum wire feeding performance.
Toughest PC Board Protection in the industry Potted to seal sensitive components from the environment, ‘trayed’ in a tough plastic tray to add rigidity and shock resistance.
Includes
• SP-140T MIG Power Source
• Magnum PRO 100L gun, 10 ft. (3.0 m)
• Gas Nozzle | Diffuser | Liner
• .025 - .030 and .035 Smooth Drive Rolls
• Work Cable and Clamp
• Adjustable Gas Regulator and Hose
• Spindle Adapter
Quick Specs
• Input Power - 120V | Single Phase | 20A Draw
• Duty Cycle - 20% @ 90A
• Output Range - 30-140A
• Wire Feed Speed - 50-500 IPM
• Dimensions - 13.6" H x 10.4" W x 17.9" L
• Weight - 49.5 lbs
MPN: LINK5261-1
Phase: Single Phase
