Lincoln Magnum Pro Curve HDE 250 Mig Gun Ready Pak (K4531)
Select Size (Parts & Accessories):
Select Size (Parts & Accessories)
Quantity:

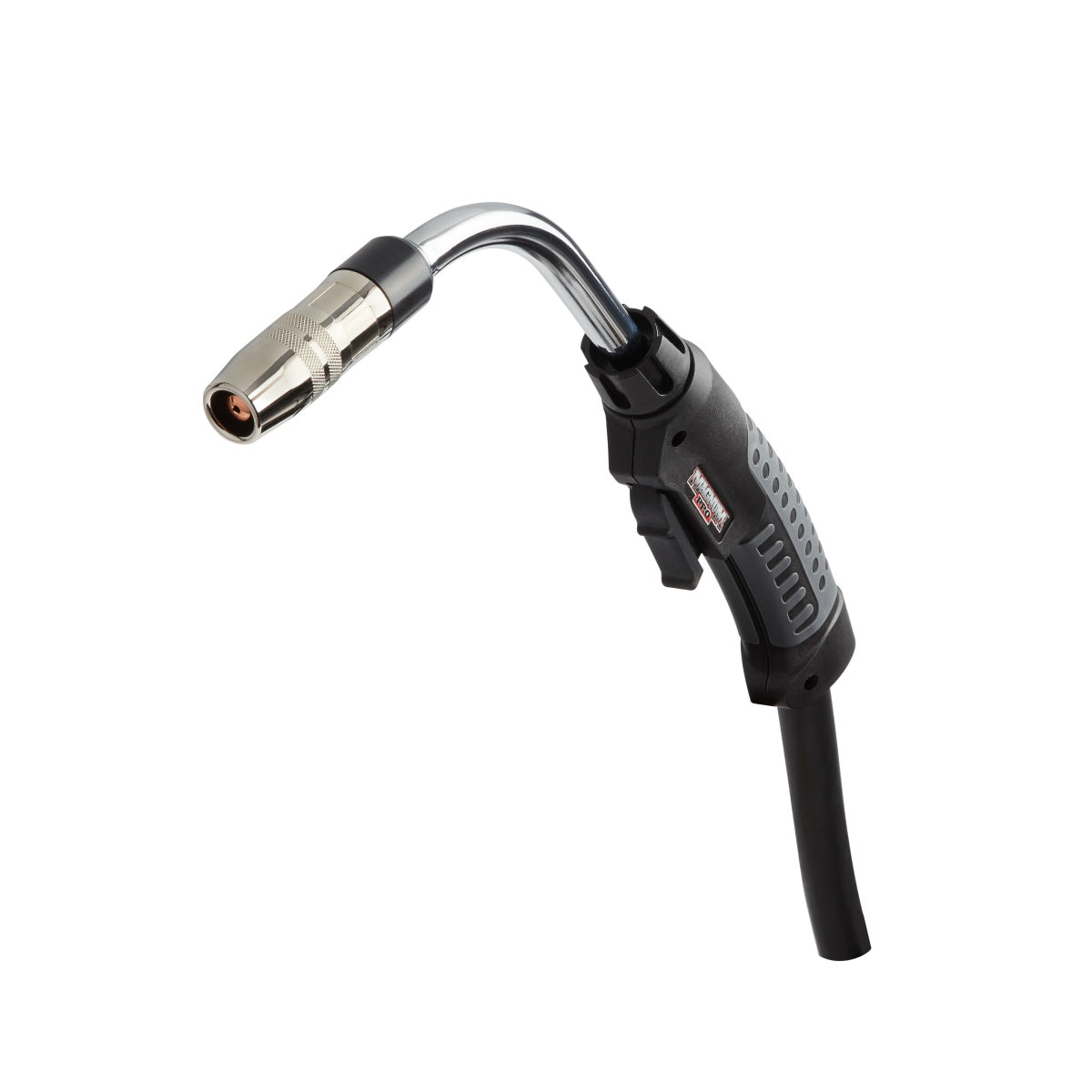

The Magnum Pro Curve HDE 250 series MIG guns feature a lightweight curved handle along with a rotating gun tube for those tight spaces. These guns are suitable for MIG, Flux-Cored (FCAW), and Pulsed MIG operations. These guns have the highest duty cycle rating in their class, boasting a 100% rating at 250 amps with mixed gas and CO2. The HDE guns have a 360 degree tool-less rotatable gun tube, and a soft rubber molded handle for greater comfort.

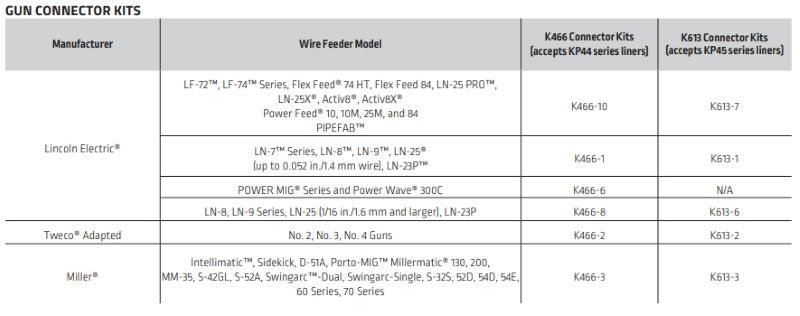

The HDE Ready-Pak MIG guns come with the liner and connector kit pre-installed for plug-n-play out of the box. Please choose the correct gun connector for your machine. For example, K4531-2-10-45 comes with a K466-10 gun connector. Please see "specs" tab for further breakdown.
Features
• Duty Cycle: 100% @ 250A (Mixed Gas) | 100% @ 250A (CO2)
• Wire Diameter: .025 - .045
• High Quality Copper Parts
• Curve Handle Design

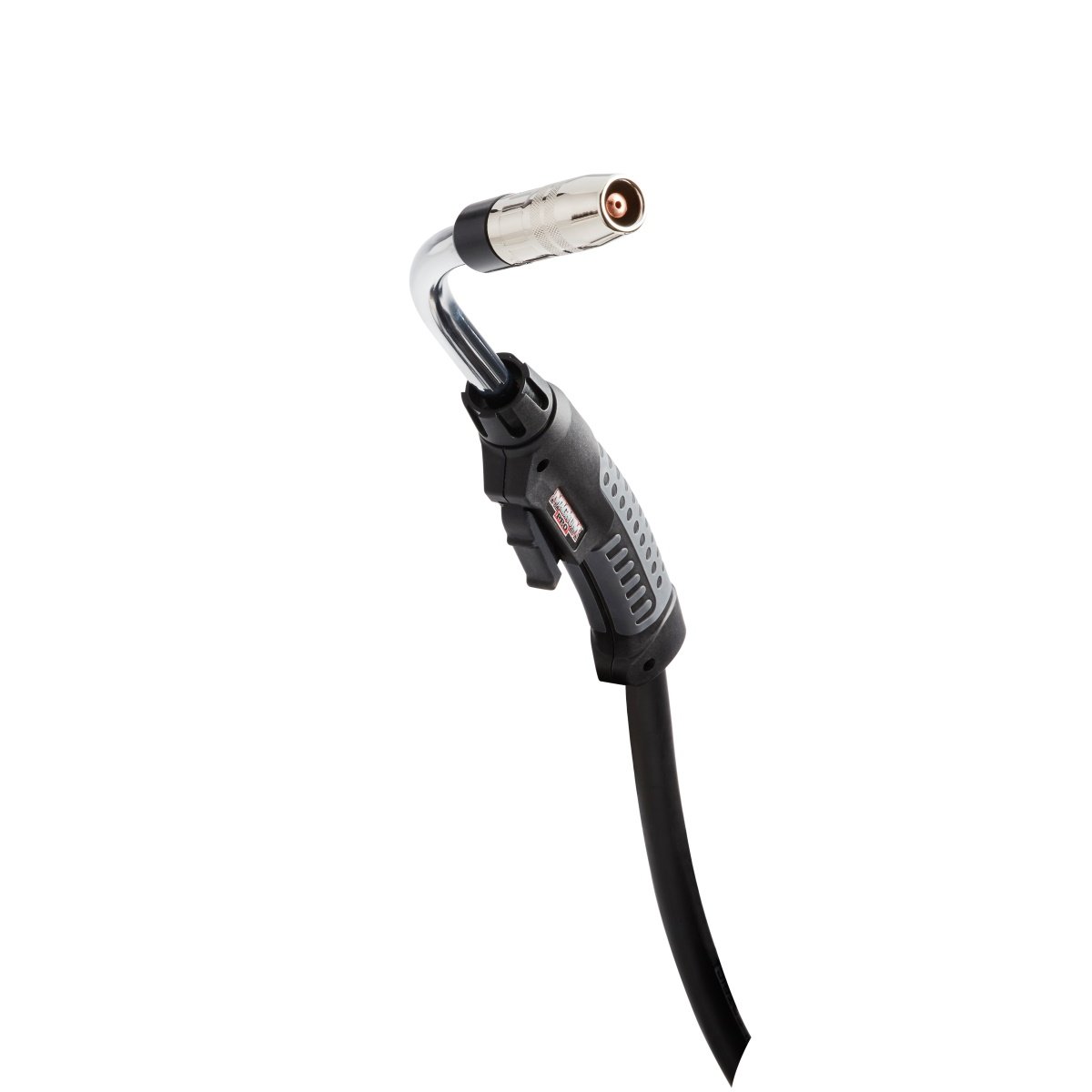

• Tool-Less Rotating Gun Tube
Includes
• Magnum Pro Curve HDE 250 Gun
• .035 - .045 Liner
• Built-In Connector (choose correct gun connector)
• (1) KP2744-035 Contact Tip
• (1) 5/8" Thread On Nozzle with 1/8" Recess (KP2742-1-62R)
• (1) Thread-On-Diffuser (KP2746-1)
• (1) Insulator (KP2773-2)
The HDE Ready-Pak MIG guns come with the liner and connector kit pre-installed for plug-n-play out of the box. Please choose the correct gun connector for your machine. For example, K4531-2-10-45 comes with a K466-10 gun connector. Please see "specs" tab for further breakdown.
Features
• Duty Cycle: 100% @ 250A (Mixed Gas) | 100% @ 250A (CO2)
• Wire Diameter: .025 - .045
• High Quality Copper Parts
• Curve Handle Design
• Tool-Less Rotating Gun Tube
Includes
• Magnum Pro Curve HDE 250 Gun
• .035 - .045 Liner
• Built-In Connector (choose correct gun connector)
• (1) KP2744-035 Contact Tip
• (1) 5/8" Thread On Nozzle with 1/8" Recess (KP2742-1-62R)
• (1) Thread-On-Diffuser (KP2746-1)
• (1) Insulator (KP2773-2)
MPN: LINK4531
