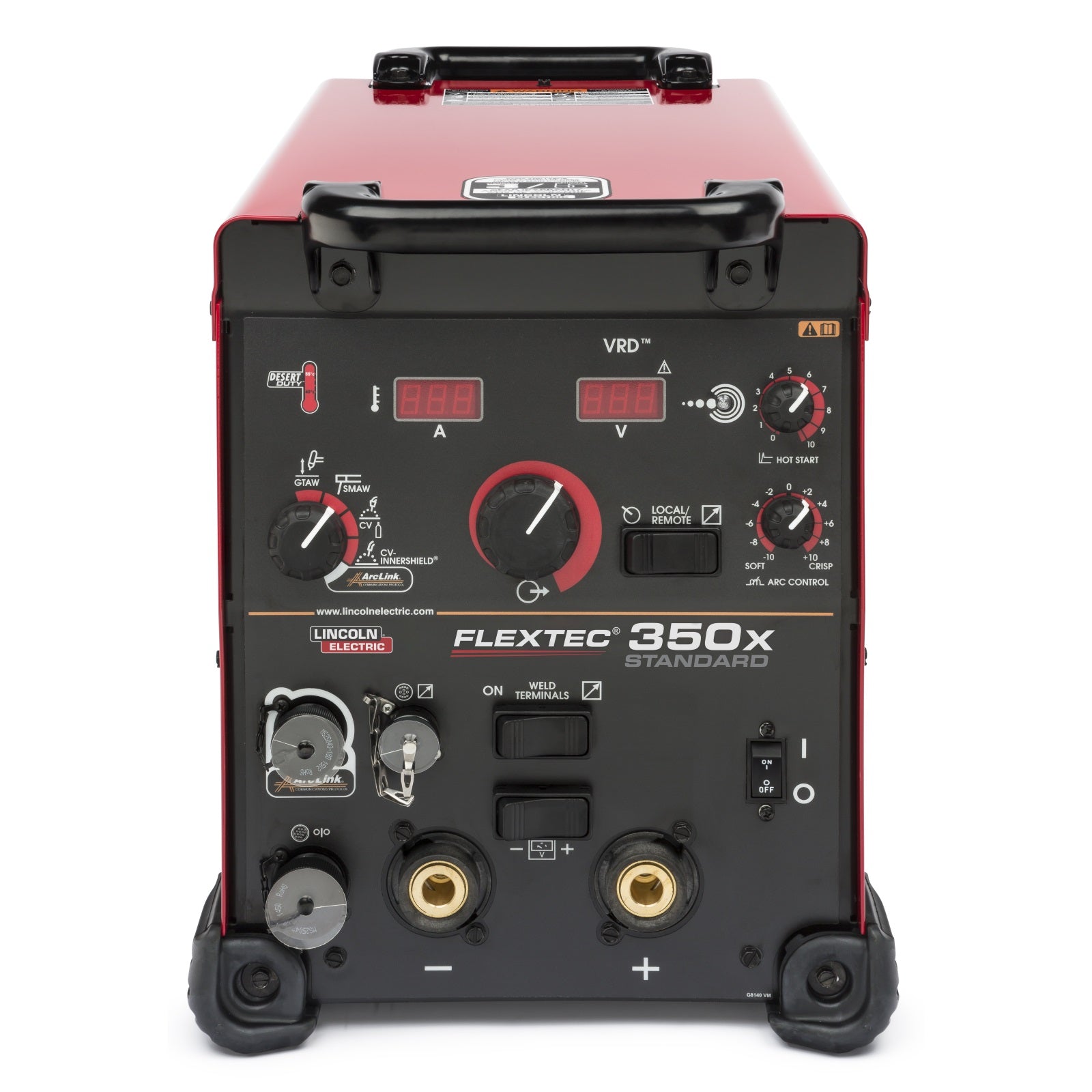

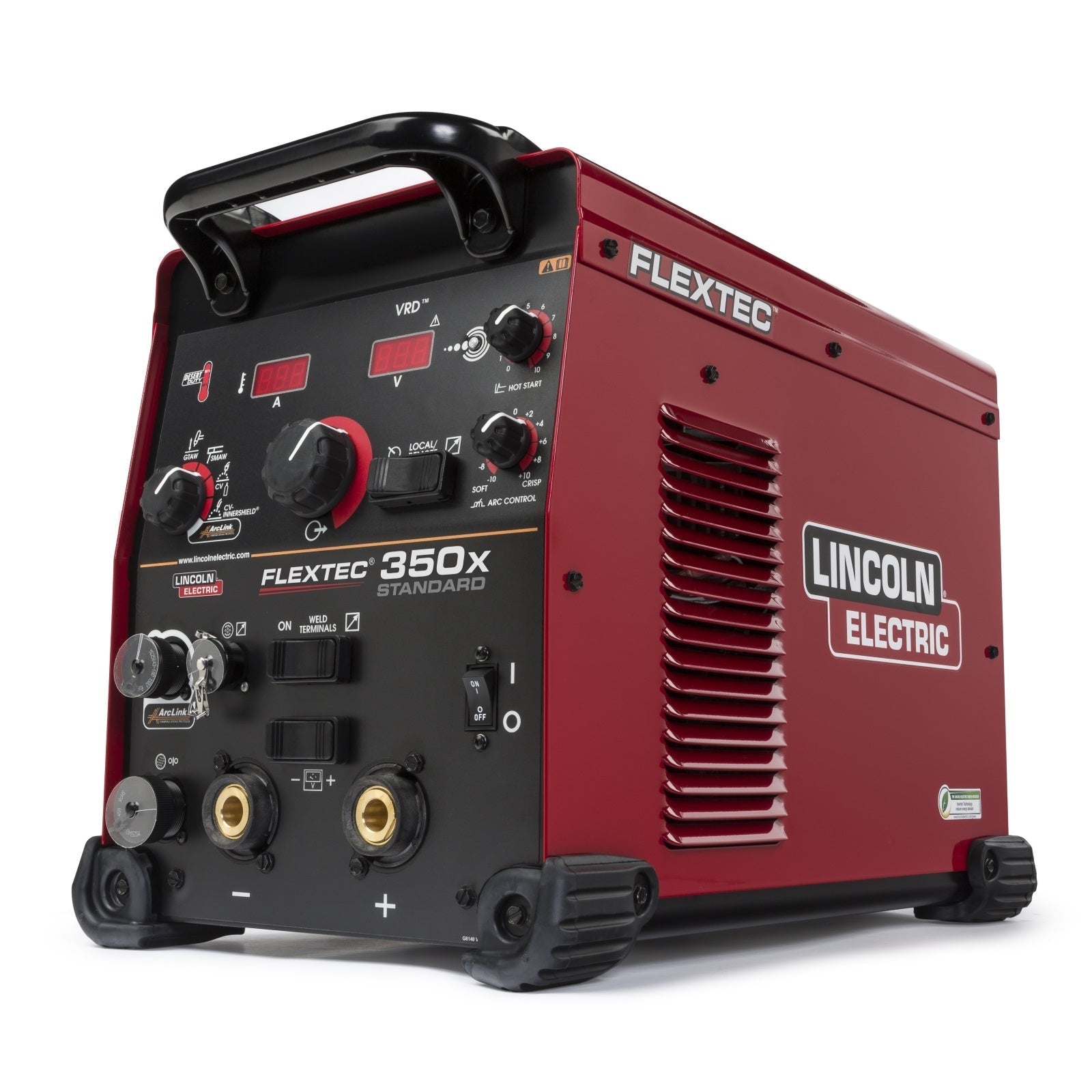

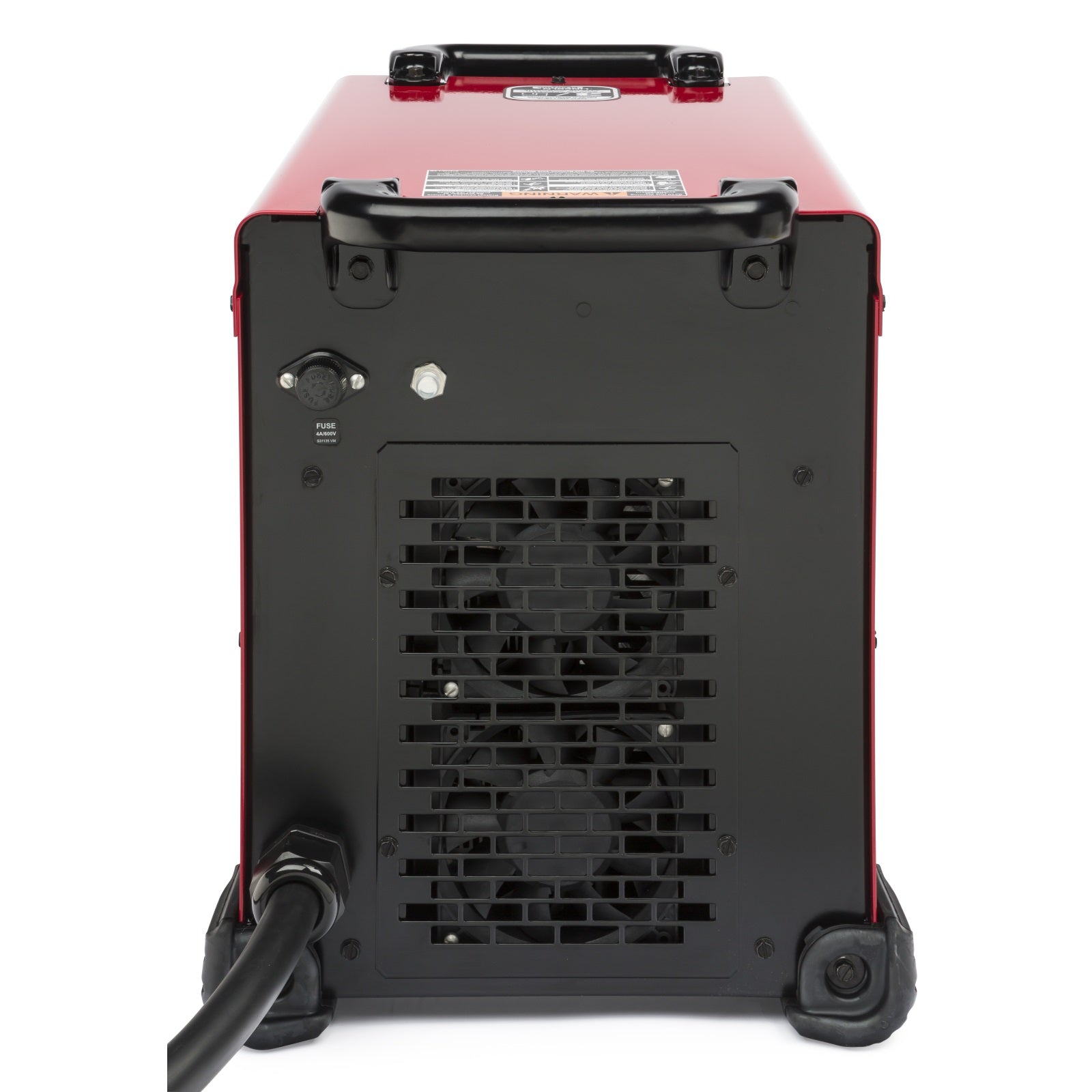

Lincoln Flextec 350X (Standard Model) with LF-72 Feeder One Pak (K3438-1)
The Lincoln Flextec 350X multi process welder is easy to setup and simple to operate, yet rugged enough to withstand temperatures up to 131 degrees fahrenheit.
Processes
• Stick
• Flux-Cored
• MIG
• TIG
• Gouging
Features
• Easy process selection
• Fully encapsulated and environmentally protected electronics

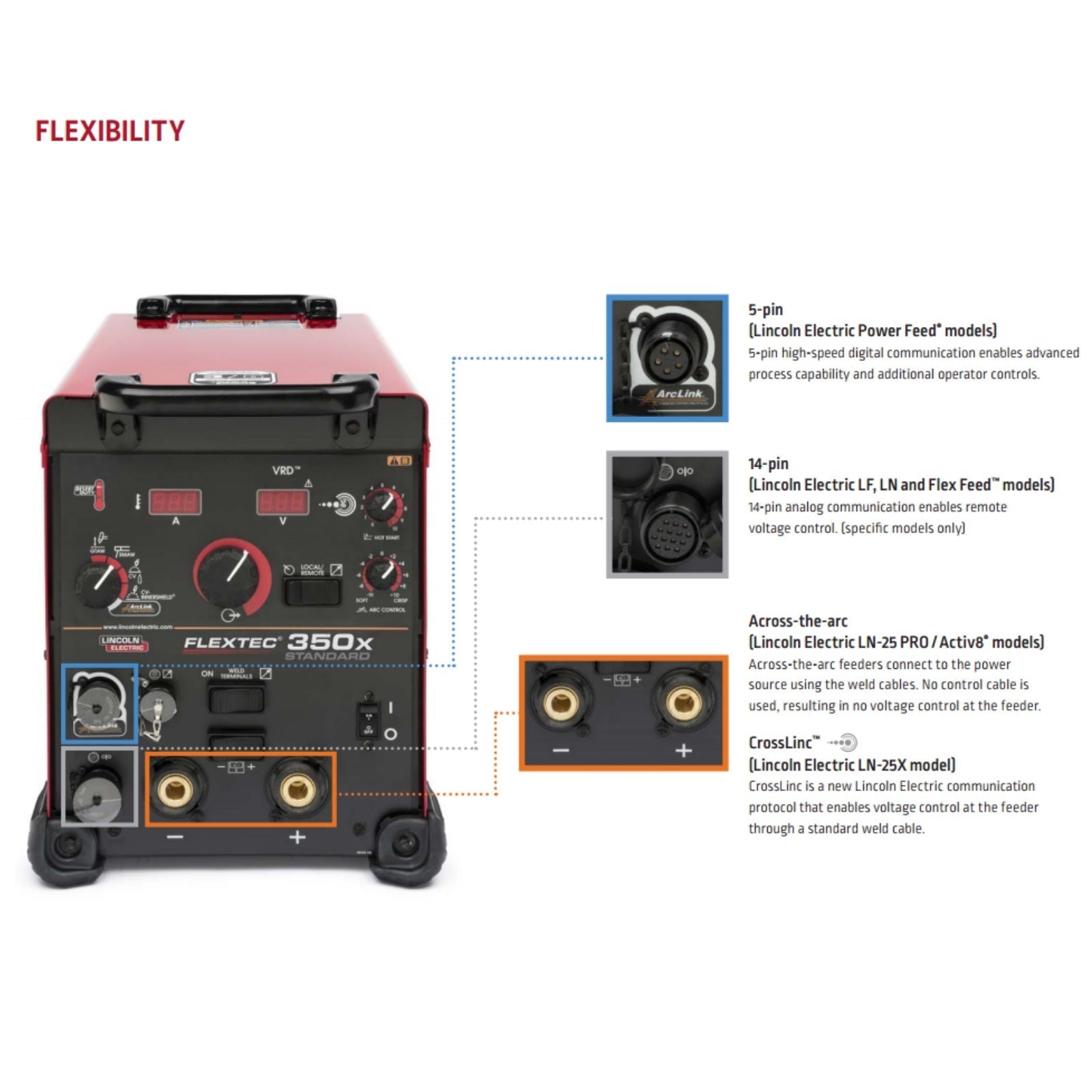

• Compatible with across-the-arc, analog, digital, or crosslinc feeders
• Lightweight and portable
• Full functionality without control cables
• Enables remote procedure setting at the feeder
• Voltage reduction device reduces open circuit voltage for added safety
• Capable of arc gouging with 3/16 inch carbons
Power Source Quick Specs
• 380-600 Volt 3 phase power
• Weight - 82lbs (Standard Model) | 77lbs (Construction Model)
• Duty Cycle - 100% at 300 amps | 60% at 350 amps
• Output Range - 5-425 amps
• Dims - 17 in H x 13 in W x 23 L
LF-72 Feeder Quick Specs
• Solid wire range - .023 - 1/16 in
• Cored wire range - .030 - 5/64 in
• Wire speed range - 50 - 800 ipm
• Dims - 12.5 in x 10.0 in x 22.5 in
• Weight - 48.5 lbs

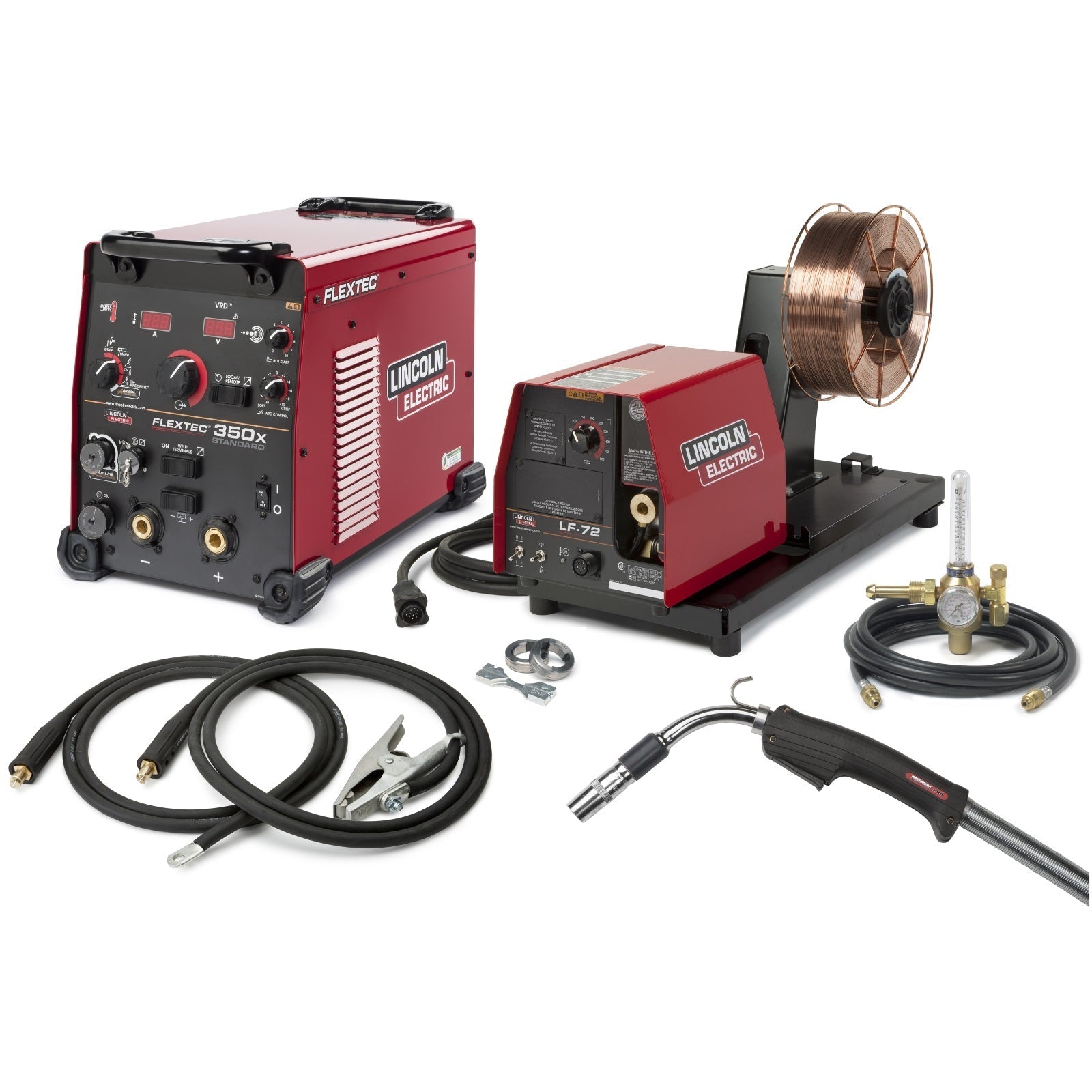

Includes
• Flextec 350X power source (standard model) (K4272-1)
• 8.5 ft power cord (no plug)
• LF-72 bench model feeder (K2327-7)
• 15 ft Magnum pro curve 300 gun (K2951-2-10-45)
• 2 drive roll and wire guide .035-.045 solid wire (K1696-1)
• 10 ft work cable with clamp and 10 ft electrode holder (K1803-2)
• 10 ft Harris flowmeter regulator and hose
Processes
• Stick
• Flux-Cored
• MIG
• TIG
• Gouging
Features
• Easy process selection
• Fully encapsulated and environmentally protected electronics
• Compatible with across-the-arc, analog, digital, or crosslinc feeders
• Lightweight and portable
• Full functionality without control cables
• Enables remote procedure setting at the feeder
• Voltage reduction device reduces open circuit voltage for added safety
• Capable of arc gouging with 3/16 inch carbons
Power Source Quick Specs
• 380-600 Volt 3 phase power
• Weight - 82lbs (Standard Model) | 77lbs (Construction Model)
• Duty Cycle - 100% at 300 amps | 60% at 350 amps
• Output Range - 5-425 amps
• Dims - 17 in H x 13 in W x 23 L
LF-72 Feeder Quick Specs
• Solid wire range - .023 - 1/16 in
• Cored wire range - .030 - 5/64 in
• Wire speed range - 50 - 800 ipm
• Dims - 12.5 in x 10.0 in x 22.5 in
• Weight - 48.5 lbs
Includes
• Flextec 350X power source (standard model) (K4272-1)
• 8.5 ft power cord (no plug)
• LF-72 bench model feeder (K2327-7)
• 15 ft Magnum pro curve 300 gun (K2951-2-10-45)
• 2 drive roll and wire guide .035-.045 solid wire (K1696-1)
• 10 ft work cable with clamp and 10 ft electrode holder (K1803-2)
• 10 ft Harris flowmeter regulator and hose
MPN: LINK3438-1
UPC: 15082823362
Phase: Three Phase
