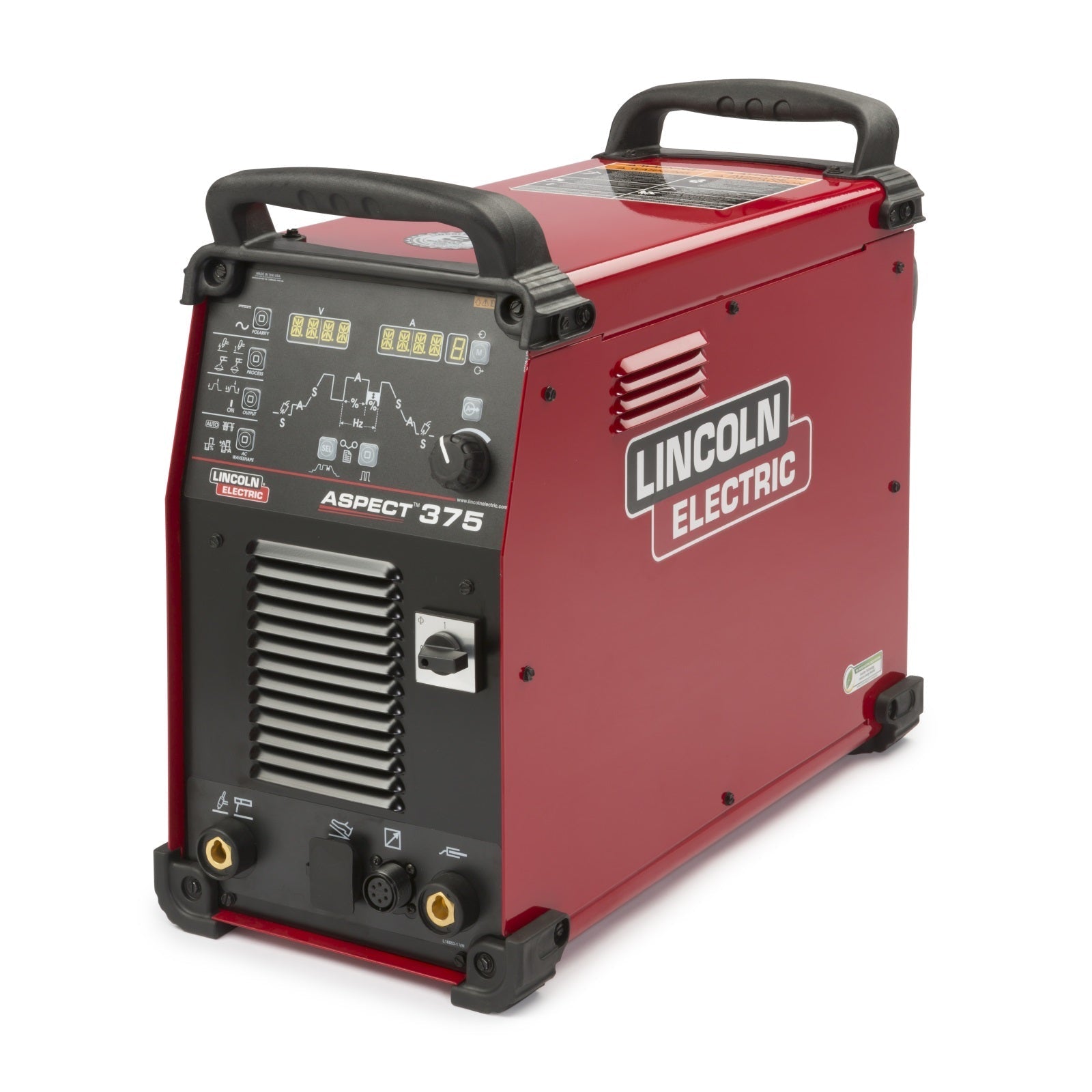

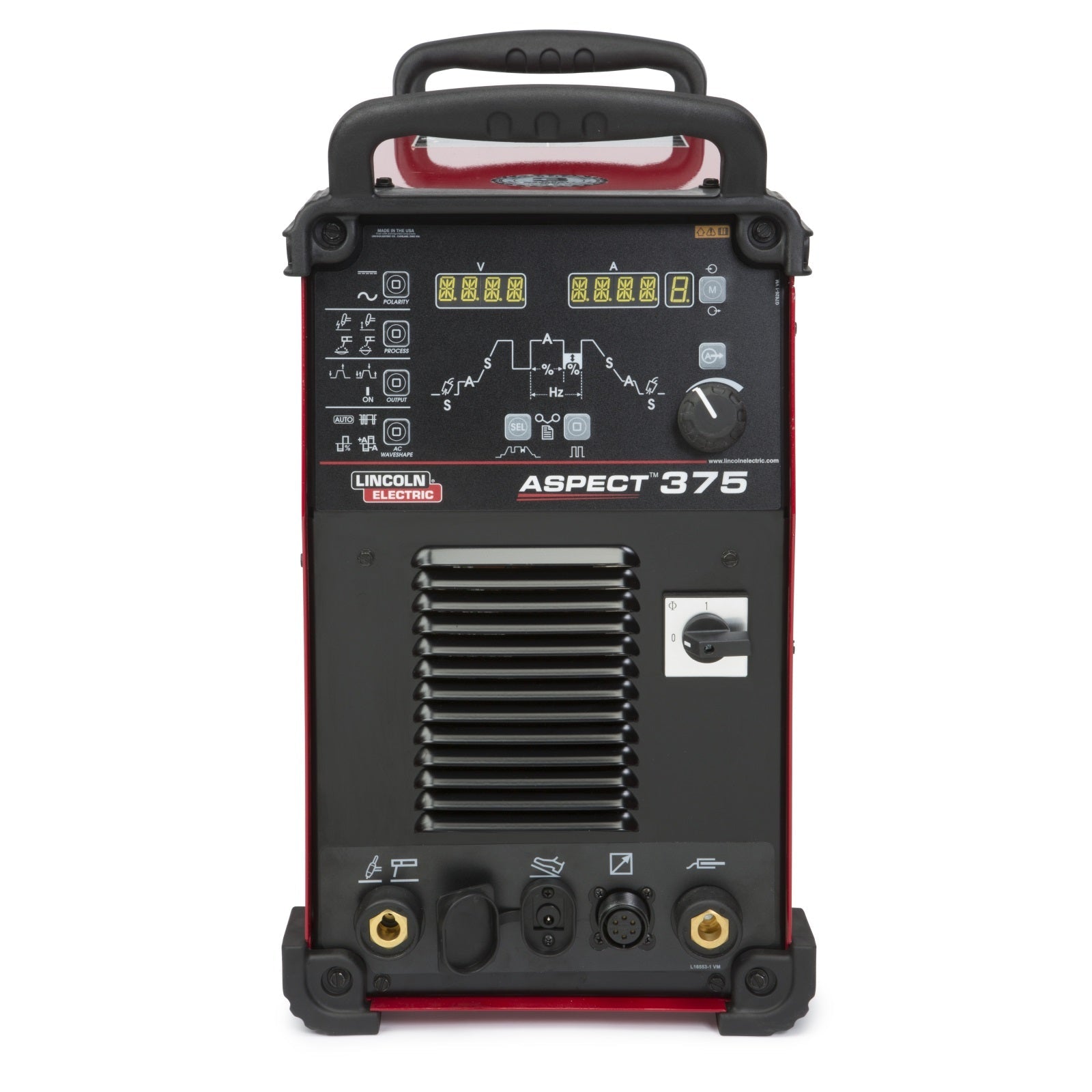

Lincoln Aspect 375 AC/DC TIG Welder (K3945-1)
This advanced TIG welding machine meets the demanding quality standards of the aerospace, motorsports, shipbuilding, education, and fabrication industries with the widest output range in its class (2-375 amps). The Aspect 375 is the perfect choice for mission critical welds, especially on applications that must stand up to the most rigorous testing requirements. Auto or Manual...the choice is yours. .
Features
• Effortless arc control - Extremely fast arc response and stability for the smoothest and most efficient weld possible
• Simplicity when you want it - Activate Intellistart Technology to automatically provide softer starts and minimal distortion on thinner materials
• Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum

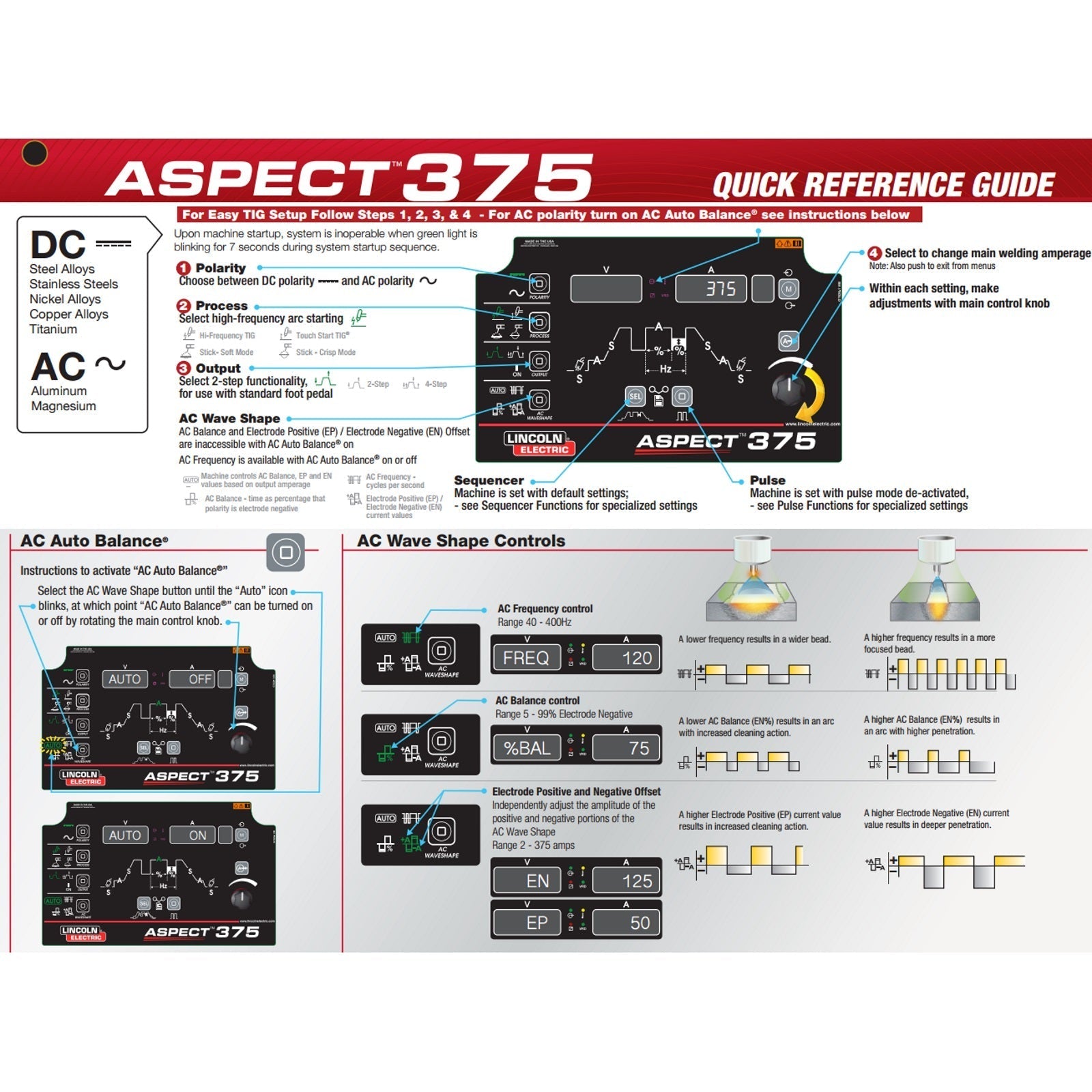

• Customization when you need it - AC Wave Shape control enables you to customize the arc for critical aluminum welding
• Manage AC frequency, balance, and offset to modify arc profile, cleaning action or penetration

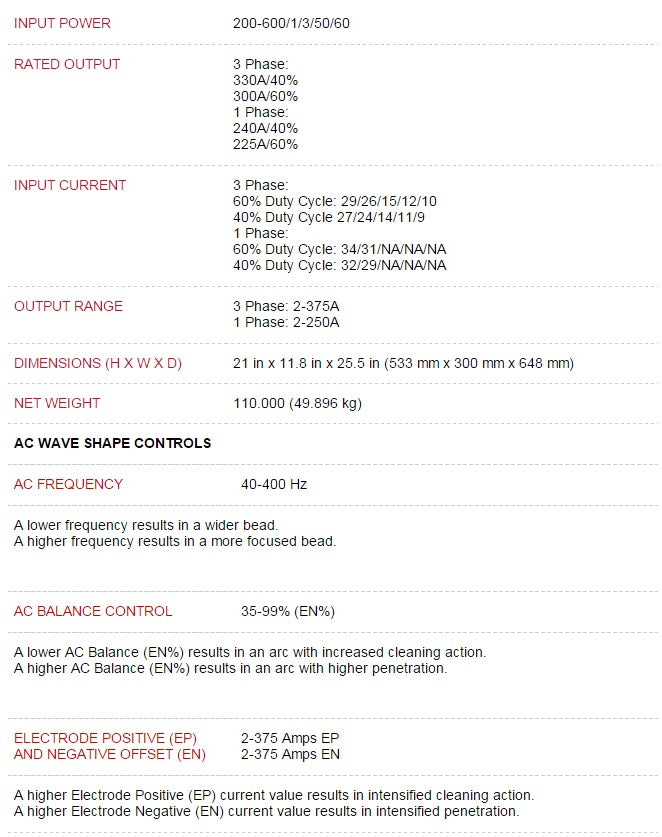

Quick Specs
• Input Power: 200-600V, 1/3 Phase, 50/60 Hertz
• 3 Phase - 60% duty cycle @ 300A, 1 Phase - 60% duty cycle @ 225A
• Output Range: 3-Phase 2-375 Amps, 1-Phase 2-250 Amps
• Weight: 105 lbs
• Dims: 21"H X 11.8"W X 25.5"D
Includes:
• Aspect 375 Power Source Only
Features
• Effortless arc control - Extremely fast arc response and stability for the smoothest and most efficient weld possible
• Simplicity when you want it - Activate Intellistart Technology to automatically provide softer starts and minimal distortion on thinner materials
• Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum
• Customization when you need it - AC Wave Shape control enables you to customize the arc for critical aluminum welding
• Manage AC frequency, balance, and offset to modify arc profile, cleaning action or penetration
Quick Specs
• Input Power: 200-600V, 1/3 Phase, 50/60 Hertz
• 3 Phase - 60% duty cycle @ 300A, 1 Phase - 60% duty cycle @ 225A
• Output Range: 3-Phase 2-375 Amps, 1-Phase 2-250 Amps
• Weight: 105 lbs
• Dims: 21"H X 11.8"W X 25.5"D
Includes:
• Aspect 375 Power Source Only
MPN: LINK3945-1
UPC: 015082563824
Phase: Both
