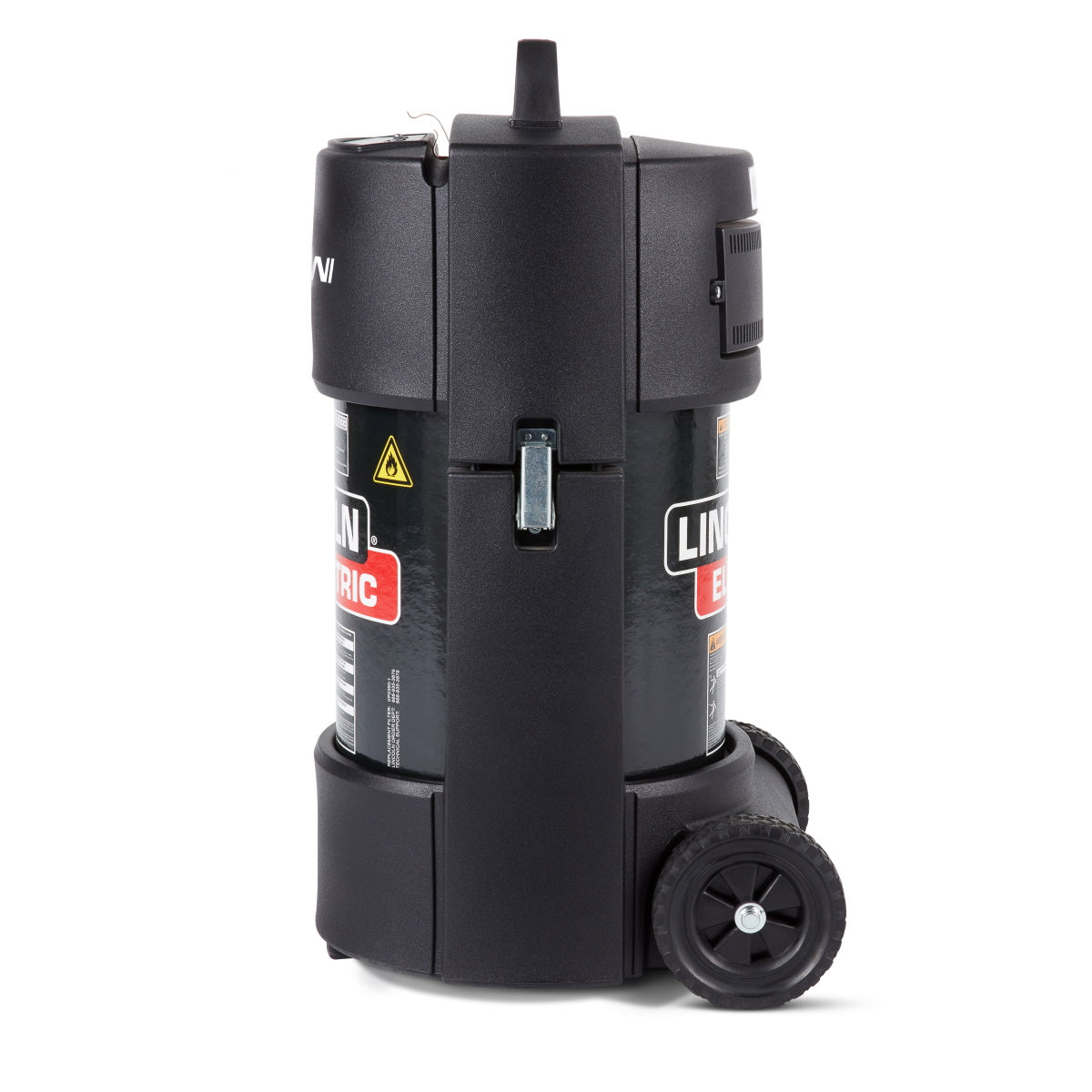

Lincoln 115V Miniflex Portable Fume Extractor (K3972-3)
The Miniflex is a portable and effective solution for the removal and filtration of welding fumes in confined and other hard to reach spaces. Unlike other bulkier welding fume extractors, the Miniflex leads the industry in portability and ease of use.

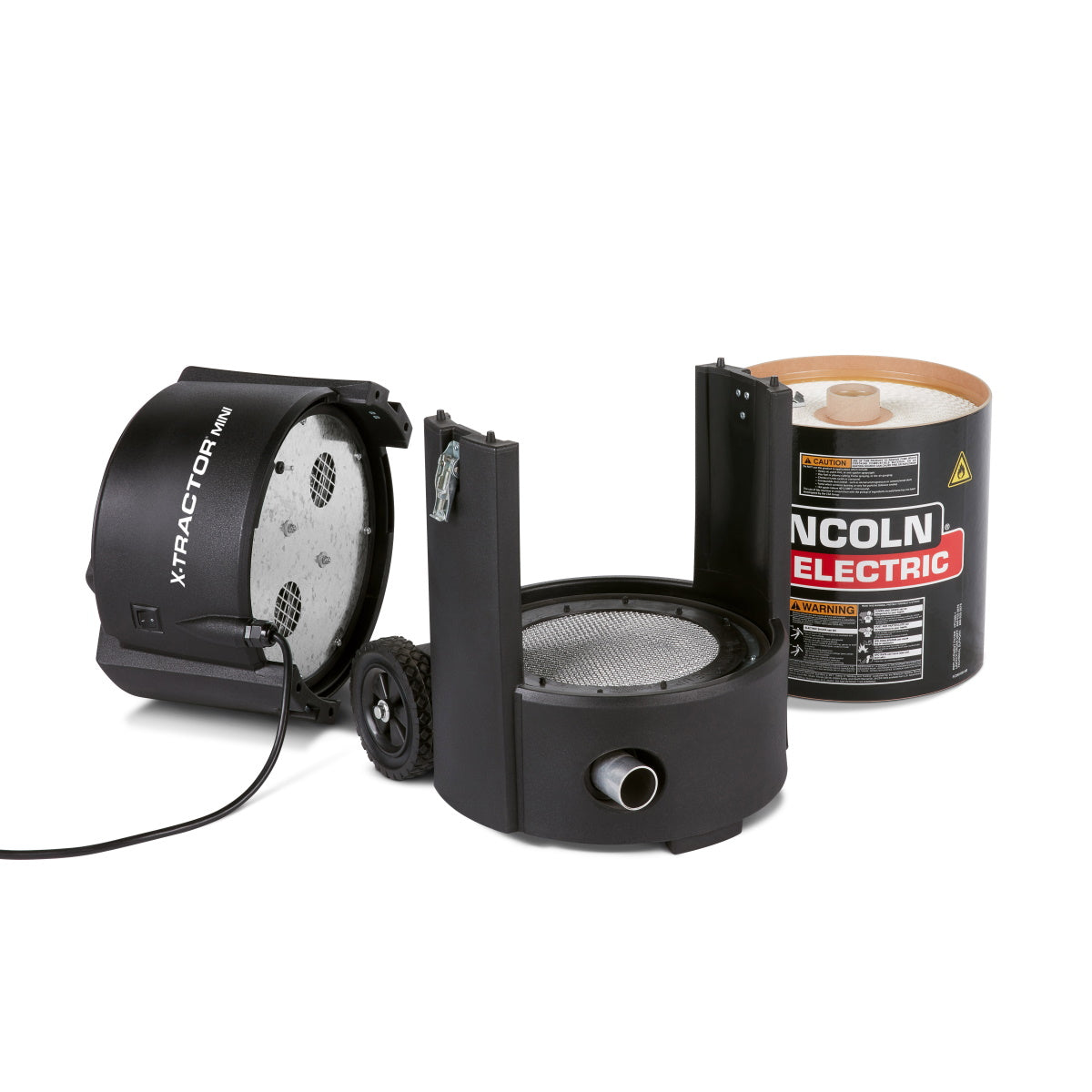

The miniflex uses a 5 stage filtration process.
• Stage 1 - Air passes through a removable/washable pre-filter where heavier particles and foreign material are captured in the collection tray.
• Stage 2 - Air passes through a second pre-separator to further reduce medium to heavy particulate matter.
• Stage 3 - Air passes through the LongLife-H filter where welding fume particles are captured and deposited.
• Stage 4 - Activated carbon filter (optional) will help prevent or neutralize the release of odors back into the environment.
• Stage 5 - Final filtration as air passes through the HEPA H12 class filter.
Applications
• Contractors
• Maintenance Workers
• Small to Medium Fabrication Shops
• Home Hobbyist
Processes
• Stick (Light Duty)
• TIG
• MIG
• Flux-Cored (Light Duty)

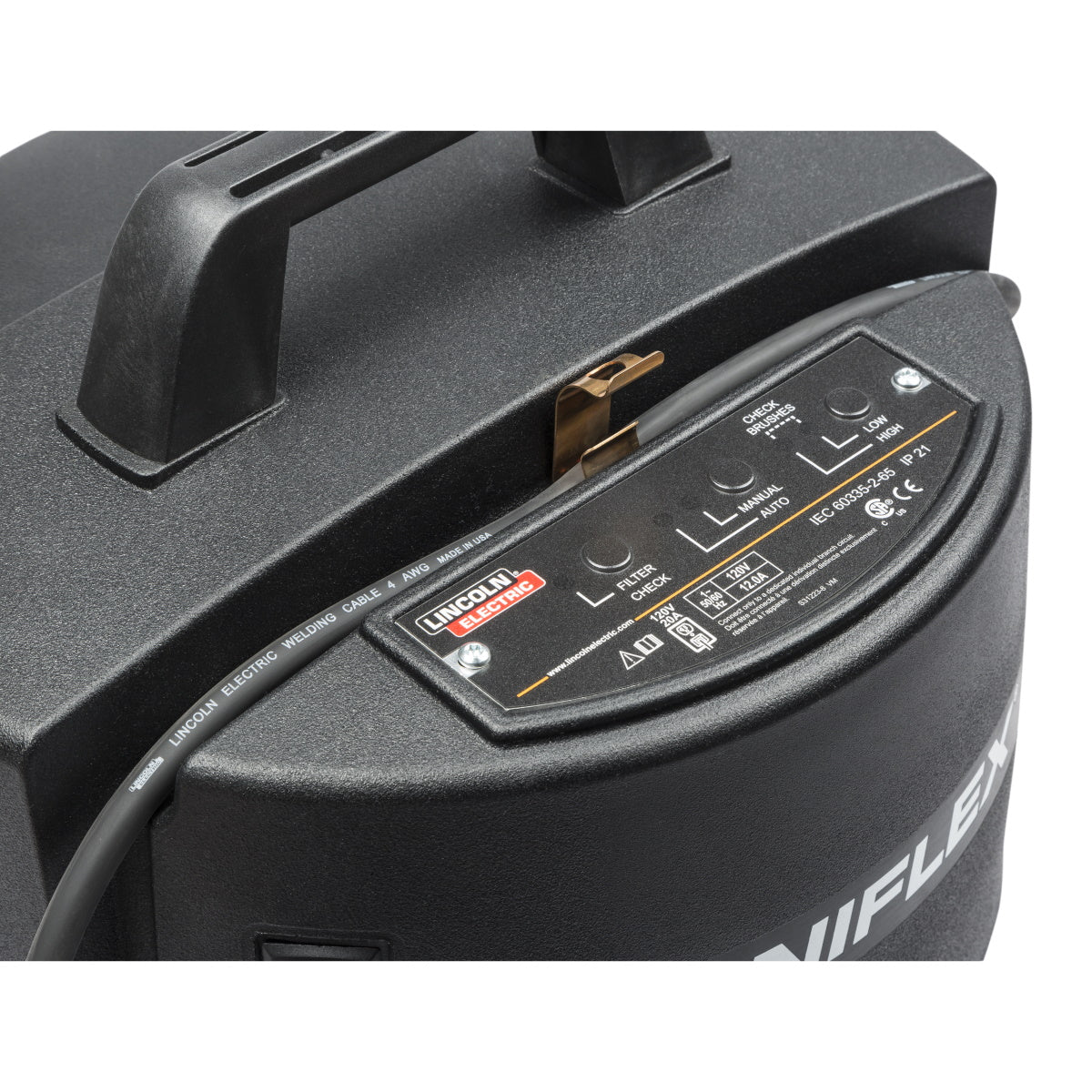

Features
• Current Sensor - Allows convenient automatic start/stop capability by sensing welding currect
• Multiple Extraction Settings - Choose extraction capacity setting based on environmental conditions (94 CMF (Low) or 135 CFM (High))
• Quiet Operation - Operates at a sound level of less than 70 decibels
• Carbon Brushes Early Warning System - Alerts the user when 80% of the carbon brushes have been consumed
• System Airflow Check - Allows the user to check the extraction performance of the unit
Quick Specs
• Weight - 38 lbs
• Input Power - 115V, 60 Hertz, 1-Phase
• Input Current - 14.6A
• Dimensions - 28.75"H X 16.5"W
Includes:
• 9 ft. (2.7 m) cord (AWG 14) with 15 amp plug (NEMA 5-15)
• 8 ft. (2.4 m) length x 1-3/4 in. (45 mm) O.D. extraction hose
• LongLife-H main filter
• HEPA filter
• 2 spare sets of carbon brushes and seals for motors
Extraction Nozzle(s) Must Be Ordered Separately
The miniflex uses a 5 stage filtration process.
• Stage 1 - Air passes through a removable/washable pre-filter where heavier particles and foreign material are captured in the collection tray.
• Stage 2 - Air passes through a second pre-separator to further reduce medium to heavy particulate matter.
• Stage 3 - Air passes through the LongLife-H filter where welding fume particles are captured and deposited.
• Stage 4 - Activated carbon filter (optional) will help prevent or neutralize the release of odors back into the environment.
• Stage 5 - Final filtration as air passes through the HEPA H12 class filter.
Applications
• Contractors
• Maintenance Workers
• Small to Medium Fabrication Shops
• Home Hobbyist
Processes
• Stick (Light Duty)
• TIG
• MIG
• Flux-Cored (Light Duty)
Features
• Current Sensor - Allows convenient automatic start/stop capability by sensing welding currect
• Multiple Extraction Settings - Choose extraction capacity setting based on environmental conditions (94 CMF (Low) or 135 CFM (High))
• Quiet Operation - Operates at a sound level of less than 70 decibels
• Carbon Brushes Early Warning System - Alerts the user when 80% of the carbon brushes have been consumed
• System Airflow Check - Allows the user to check the extraction performance of the unit
Quick Specs
• Weight - 38 lbs
• Input Power - 115V, 60 Hertz, 1-Phase
• Input Current - 14.6A
• Dimensions - 28.75"H X 16.5"W
Includes:
• 9 ft. (2.7 m) cord (AWG 14) with 15 amp plug (NEMA 5-15)
• 8 ft. (2.4 m) length x 1-3/4 in. (45 mm) O.D. extraction hose
• LongLife-H main filter
• HEPA filter
• 2 spare sets of carbon brushes and seals for motors
Extraction Nozzle(s) Must Be Ordered Separately
MPN: LINK3972-3
UPC: 015082576664
