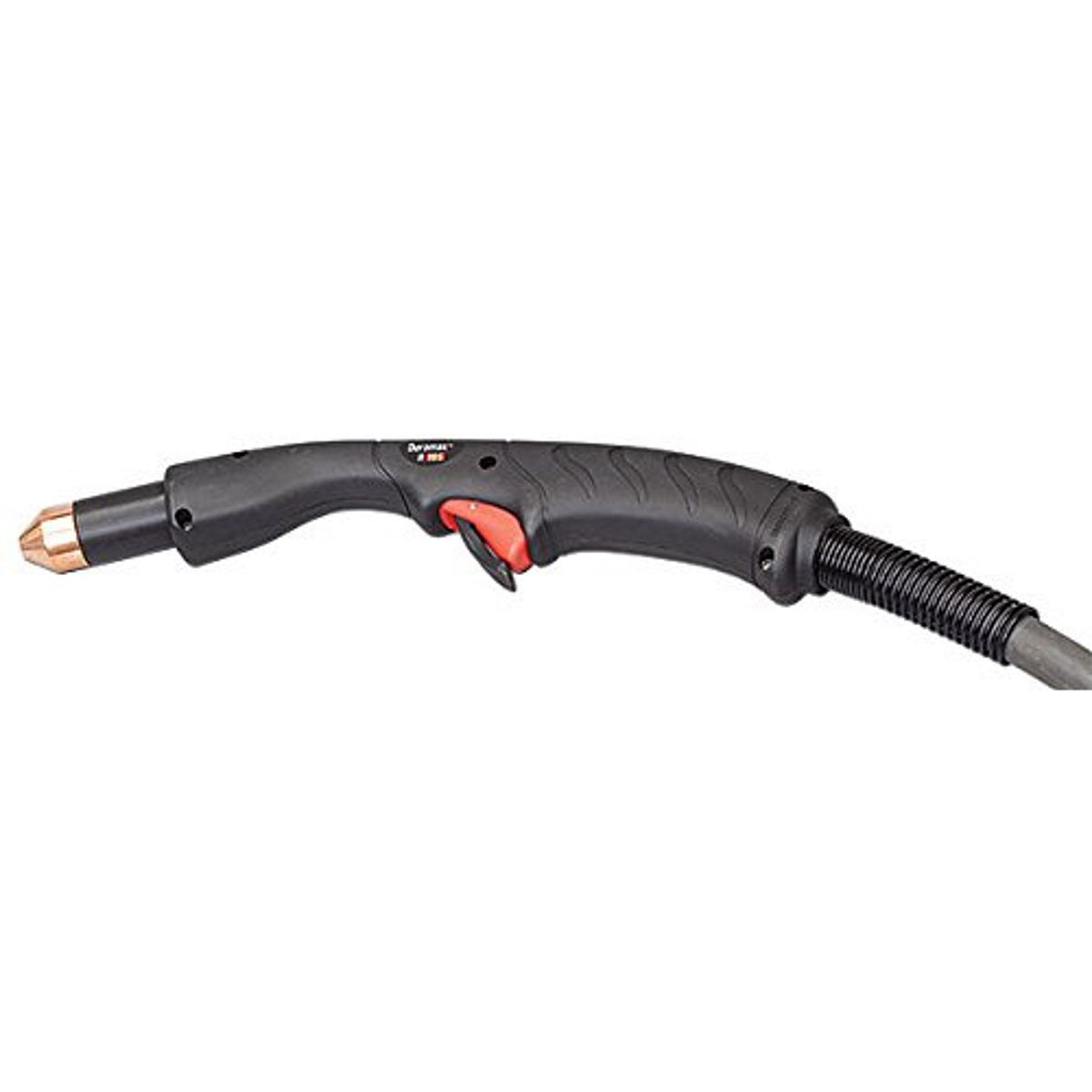

Hypertherm 50ft Duramax 15 Deg Hand Torch Assembly (088163)
Hypertherm's 50ft 15 Degree Duramax Lock torch for the Powermax45 XP features a comfortable ergonomic grip and a thinner neck for more arc visibility. The Duramax torches increase consumable life and consolidate consumable inventory.
This model torch comes with a 50-foot lead, 15 degree head, and the Fast-Connect hookup. This is a great backup torch and is often used when gouging metal. Duramax torches have a 1-year warranty. Consumables not Included.
Compatible with:
• Powermax45 XP Only
This torch will not work with older Powermax 45 units equipped with the T45V torch.
Benefits of Genuine Hypertherm Consumables:
• Made in the USA
• Tool free allows consumables to be easily changed out
• TrueFlow™ allows for centered electrode alignment with the water tube to ensure optimal cooling, which increases life and produces a higher and consistent cut quality
• SpringStart™ electrode technology ensures consistent, reliable starting by eliminating moving parts in the torch
• Vented shield™ is electrically isolated to prevent double arcing, the vent holes around the orifice stabilize the arc, cool the consumables, and protect them from spatter. These features improve piercing capabilities and increase consumable life
• Advanced axial swirl ring allows the long vented nozzle with exposed vent holes and swirl ring to align near the tip of the electrode, ensuring the correct amount of gas flow and optimal consumable life
• Conical Flow™ nozzle technology increases arc energy density for superior cut quality with little dross
• CoolFlow™ delivers enhanced cooling of the nozzle through key features such as a deep groove, angled o-ring seal and specific shoulder contact for increased nozzle life and cut quality
This model torch comes with a 50-foot lead, 15 degree head, and the Fast-Connect hookup. This is a great backup torch and is often used when gouging metal. Duramax torches have a 1-year warranty. Consumables not Included.
Compatible with:
• Powermax45 XP Only
This torch will not work with older Powermax 45 units equipped with the T45V torch.
Benefits of Genuine Hypertherm Consumables:
• Made in the USA
• Tool free allows consumables to be easily changed out
• TrueFlow™ allows for centered electrode alignment with the water tube to ensure optimal cooling, which increases life and produces a higher and consistent cut quality
• SpringStart™ electrode technology ensures consistent, reliable starting by eliminating moving parts in the torch
• Vented shield™ is electrically isolated to prevent double arcing, the vent holes around the orifice stabilize the arc, cool the consumables, and protect them from spatter. These features improve piercing capabilities and increase consumable life
• Advanced axial swirl ring allows the long vented nozzle with exposed vent holes and swirl ring to align near the tip of the electrode, ensuring the correct amount of gas flow and optimal consumable life
• Conical Flow™ nozzle technology increases arc energy density for superior cut quality with little dross
• CoolFlow™ delivers enhanced cooling of the nozzle through key features such as a deep groove, angled o-ring seal and specific shoulder contact for increased nozzle life and cut quality
MPN: HYP088163
UPC: 662310368180
