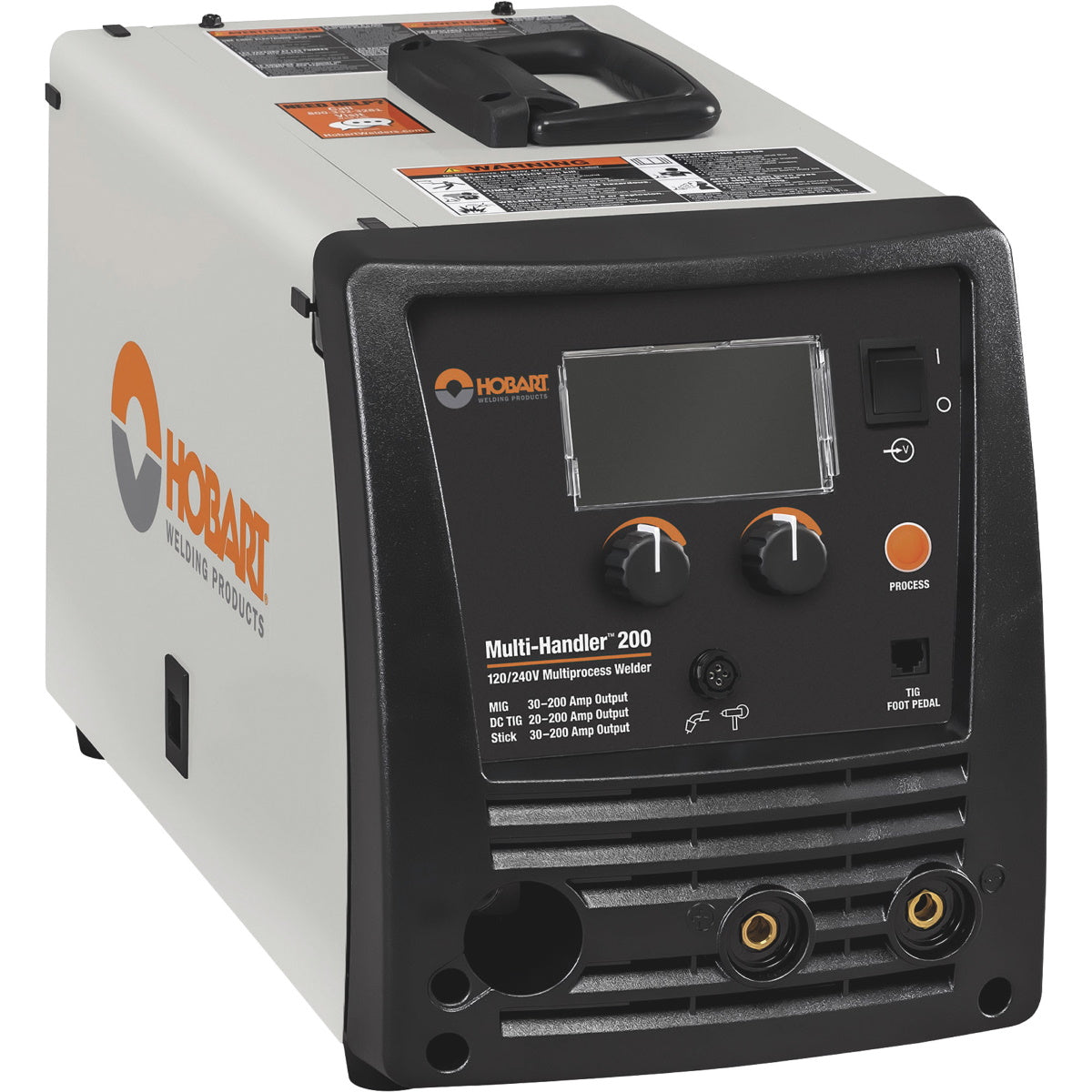

Hobart Multi Handler 200 Multiprocess Welder (500578)
The Hobart Multi Handler 200 provides MIG, DC TIG, and stick capabilities, multi-voltage plugs, and a color LCD screen for easy-to-read display. The Multi Handler 200 can MIG weld up to 3/8 inch and TIG weld up to 3/16 inch mild steel. With two knobs and a process button, setting up or changing over this unit is quick and easy. These welders are equipped with a quick select drive roll that offers three grooves - two for different size solid wire and a third for flux-cored wire. The Multi Handler 200 is spoolgun ready, simply purchase the SpoolRunner 100 and you'll be ready to tackle those aluminum projects.
The Multi Handler 200 is DC TIG Only - it will NOT TIG weld aluminum. The Multi Handler 200 is not recommended for use with 6010 Stick Electrodes.
Quick Specs
• Output Range (240V): MIG - 30-200A | DC TIG - 20-200A | Stick - 30-200A
• Duty Cycle: (240V): MIG - 30% @ 165A | DC TIG - 30% @ 165A | Stick - 30% @ 140A
• Wire Feed Speed: 60-650 IPM
• Dimensions: 13.4" H x 10.6" W x 20.8" L
• Weight: 39 lbs

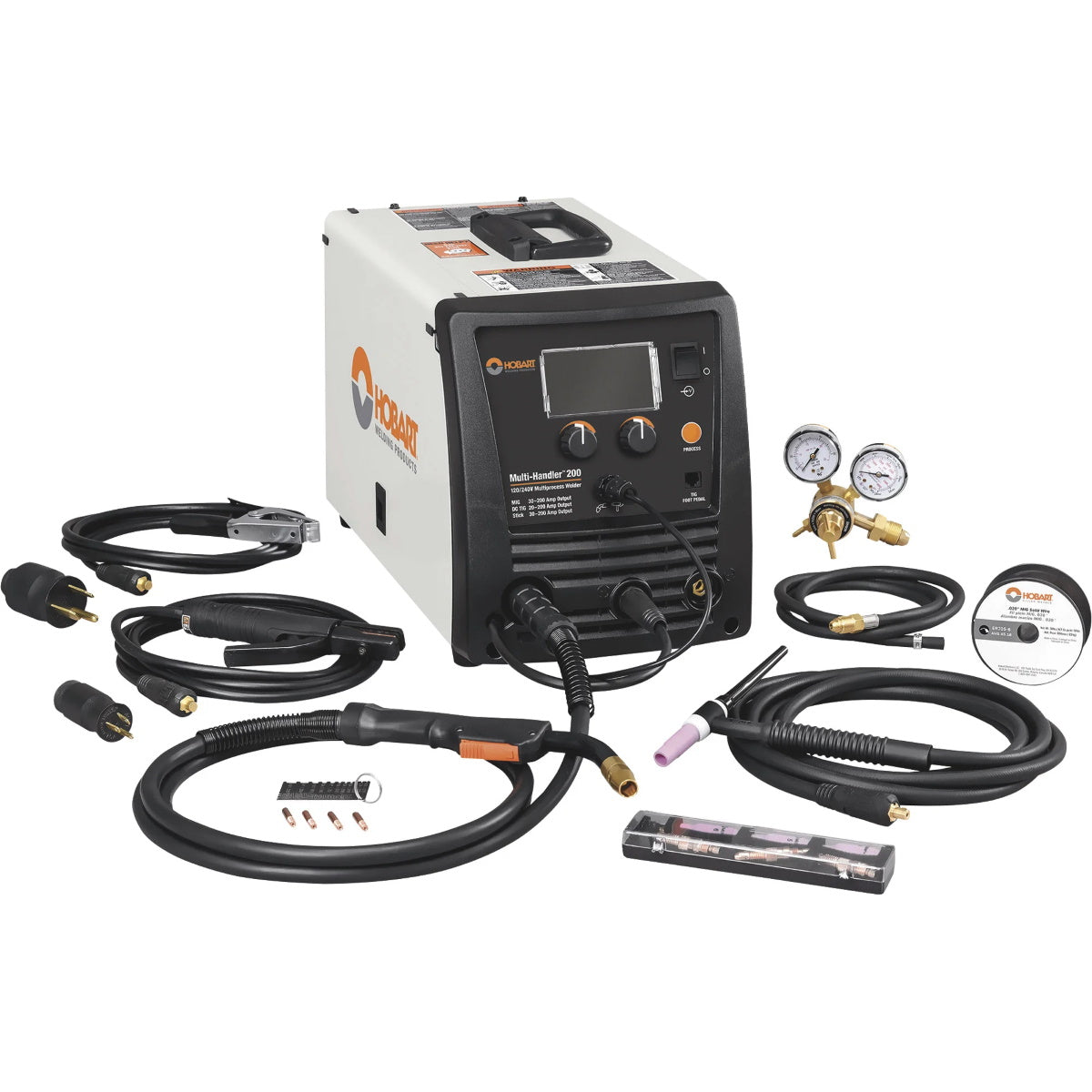

Includes
• Multi Handler 200
• 10 Ft MIG Gun
• 10 Ft Electrode Holder
• 10 Ft Work Clamp
• 12.5 Ft TIG Torch
• Power Cord with MVP Plugs (120V, 240V)
• Regulator and Gas Hose
• Spare .030 and .035 Contact Tips
• Quick Select Drive Roll - Solid Wire: .024 | .030/.035 | Flux Cored Wire: .030/.035
• 2lb Spool of 70S6 .030 Solid Wire
• Spare TIG Insulator, Nozzles, Collet, and Collet Bodies
• Material Thickness Gauge
The Multi Handler 200 is DC TIG Only - it will NOT TIG weld aluminum. The Multi Handler 200 is not recommended for use with 6010 Stick Electrodes.
Quick Specs
• Output Range (240V): MIG - 30-200A | DC TIG - 20-200A | Stick - 30-200A
• Duty Cycle: (240V): MIG - 30% @ 165A | DC TIG - 30% @ 165A | Stick - 30% @ 140A
• Wire Feed Speed: 60-650 IPM
• Dimensions: 13.4" H x 10.6" W x 20.8" L
• Weight: 39 lbs
Includes
• Multi Handler 200
• 10 Ft MIG Gun
• 10 Ft Electrode Holder
• 10 Ft Work Clamp
• 12.5 Ft TIG Torch
• Power Cord with MVP Plugs (120V, 240V)
• Regulator and Gas Hose
• Spare .030 and .035 Contact Tips
• Quick Select Drive Roll - Solid Wire: .024 | .030/.035 | Flux Cored Wire: .030/.035
• 2lb Spool of 70S6 .030 Solid Wire
• Spare TIG Insulator, Nozzles, Collet, and Collet Bodies
• Material Thickness Gauge
MPN: HOB500578
UPC: 715959679602
Phase: Single Phase
