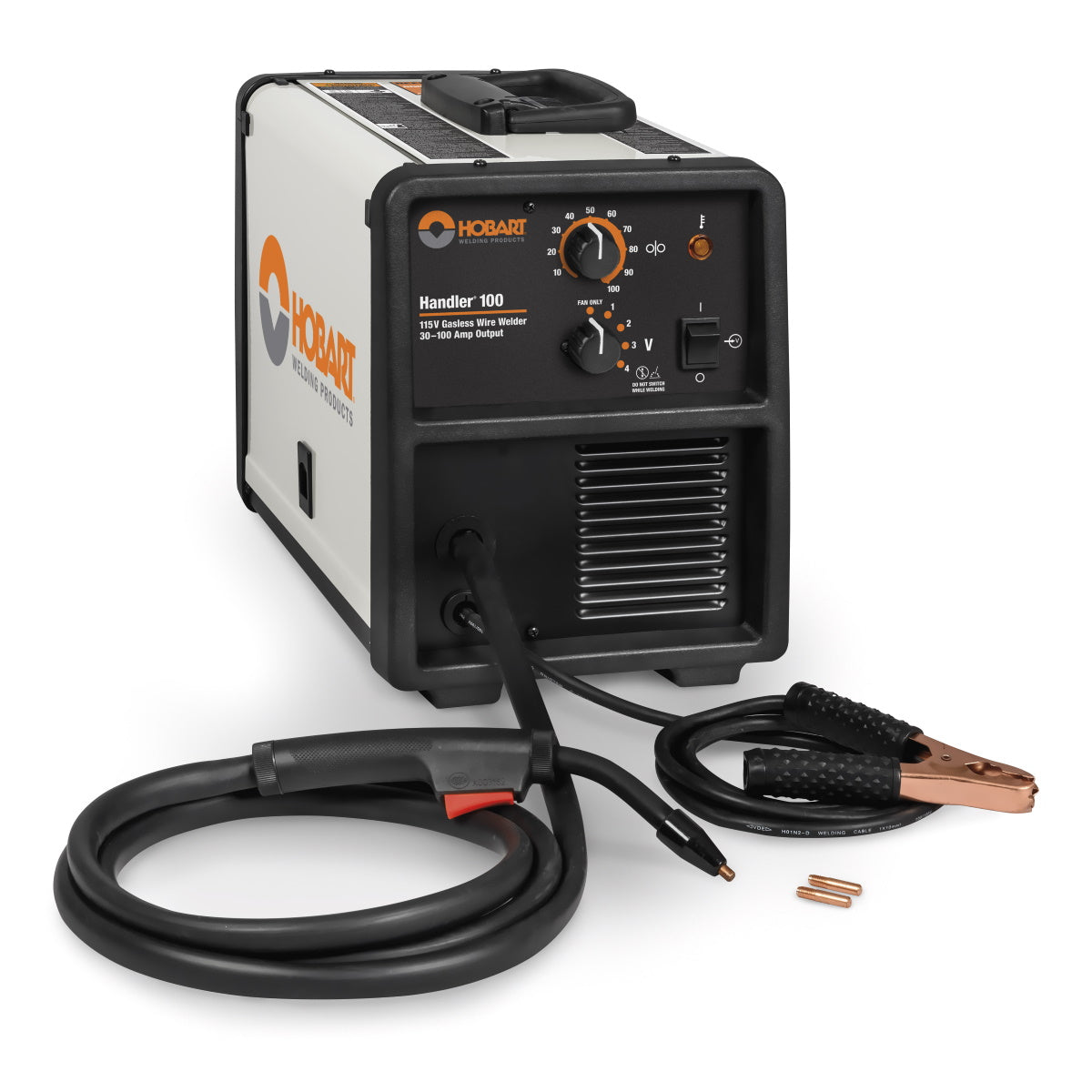

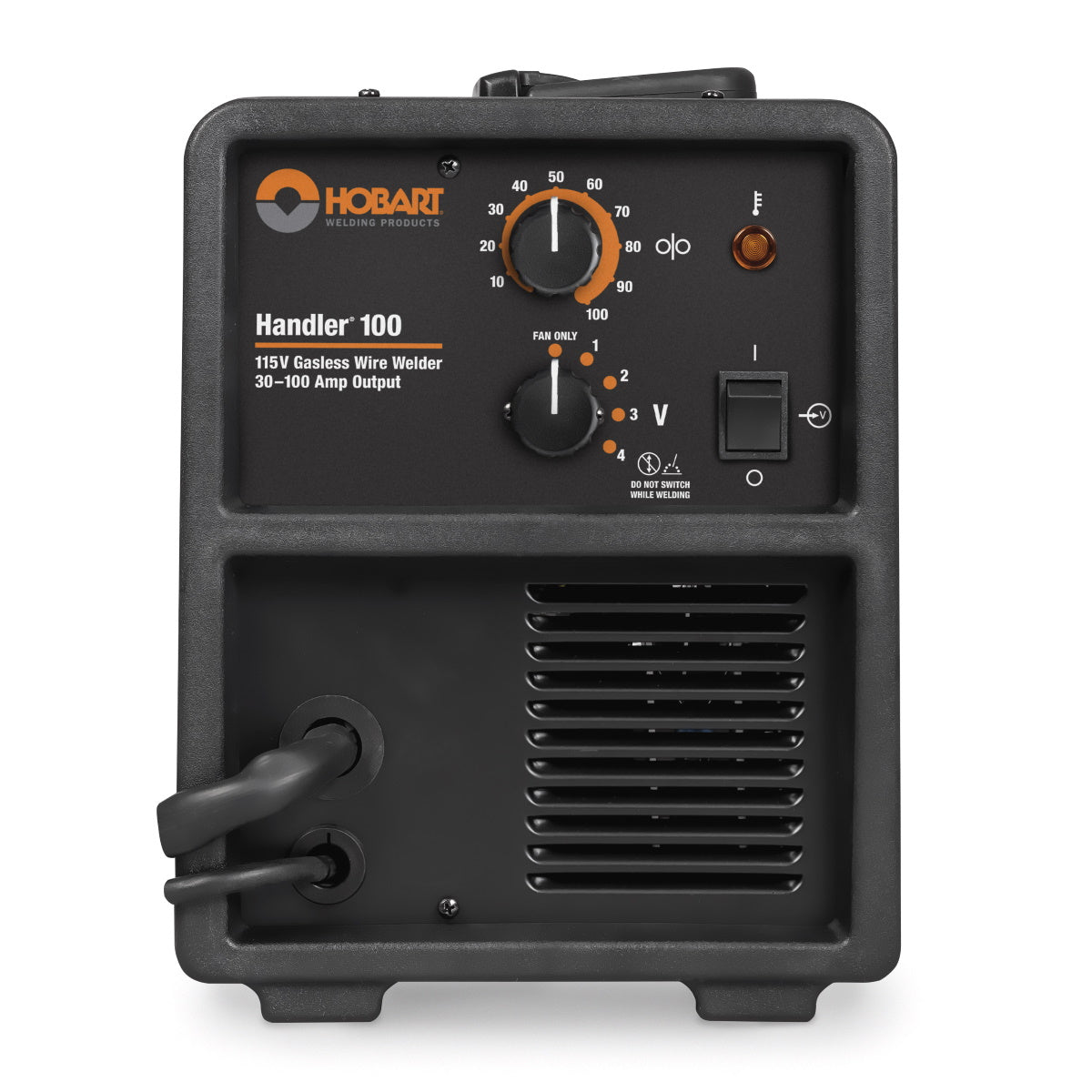

Hobart Handler 100 Flux Cored Welder (500572)
This welder is no longer available. The suggested replacement is the Handler 125 (500573).
The Hobart Handler 100 flux cored welder operates off 115V household power and welds up to 3/16" steel. This is a perfect welder for beginners and DIY projects around the home or farm. The Handler 100 offers a broad amperage range of 30-100 amps, and comes with four output voltage settings for quick and easy adjustment.
Highlights:
• Welds 18 gauge up to 3/16 inch steel
• Proven built-in wire feeder with quick-release drive roll tension lever
• Built-in contractor eases use and is an excellent safety feature which makes wire electrically "cold" when not welding.
• Four output voltage settings with wire feed speed tracking provide quick and easy adjustment for different materials and thickness.
• Dual groove drive rolls make it easy to switch between .023/.025 in. (0.6mm) and .030 - .035 in. (0.6 - 0.9 mm) wire
• Self-resetting thermal overload and motor protection
Quick Specs
• Amperage Range: 30-100 A
• Duty Cycle: 20% @ 80A | 100% @ 30A
• Mild Steel Thickness: 18 ga - 3/16"
• Weight: 44 lbs
• Dimensions: 13.5" H x 10" W x 16" L
Comes Complete With:
• Comfortable 8 ft. (2.4 m) H100F2-8 gun with liner for .030-.035 in wire
• .030 in. (0.9 mm) contact tips
• 10 ft. (3 m) work cable with clamp
• Spool shaft to accommodate 4 or 8 inch spools
• Power cord with plug
• Weld set-up and parts information chart
• 5/3/1 Industrial Warranty. Five year warranty on transformers, stabilizers and generators; three years on electronics (drive motors, rectifiers); one year on guns (MIG and plasma torches)
MPN: HOB500572
UPC: 715959656313
Phase: Single Phase
