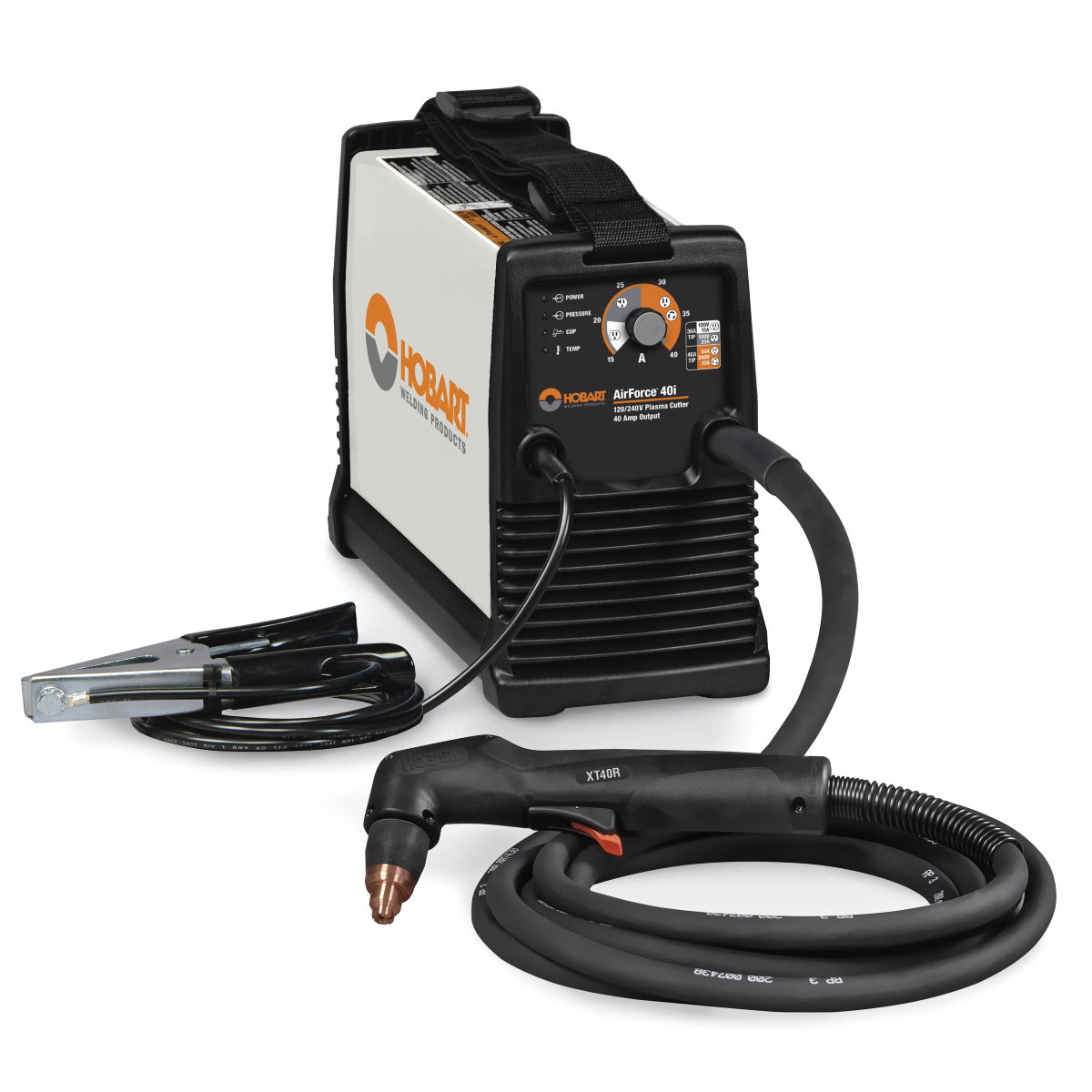

Hobart AirForce 40i Plasma Cutter with 12ft Torch (500576)
The Hobart AirForce 40i Plasma Cutter with 12ft Torch (500576) is an economical plasma cutting system for all conductive metals. Inverter-based design and reliable technology pack a lot of performance into a very portable package. The Airforce 40i plasma cutting system is excellent for light and heavy industrial users. Automated operations are also well within its range. Unit is compatible with engine-driven welders when powered with a 240 V generator power outlet of 8 kW or more. The 40i is a multi-voltage (120V and 240V) unit with a built-in gas/air filter and regulator for extra protection.
Highlights:
• Capable of cutting 5/8 to 7/8 in. mild steel when powered on 240 V power.
• MVP Adaptors allow 120V or 240V operation with quick-change plugs.

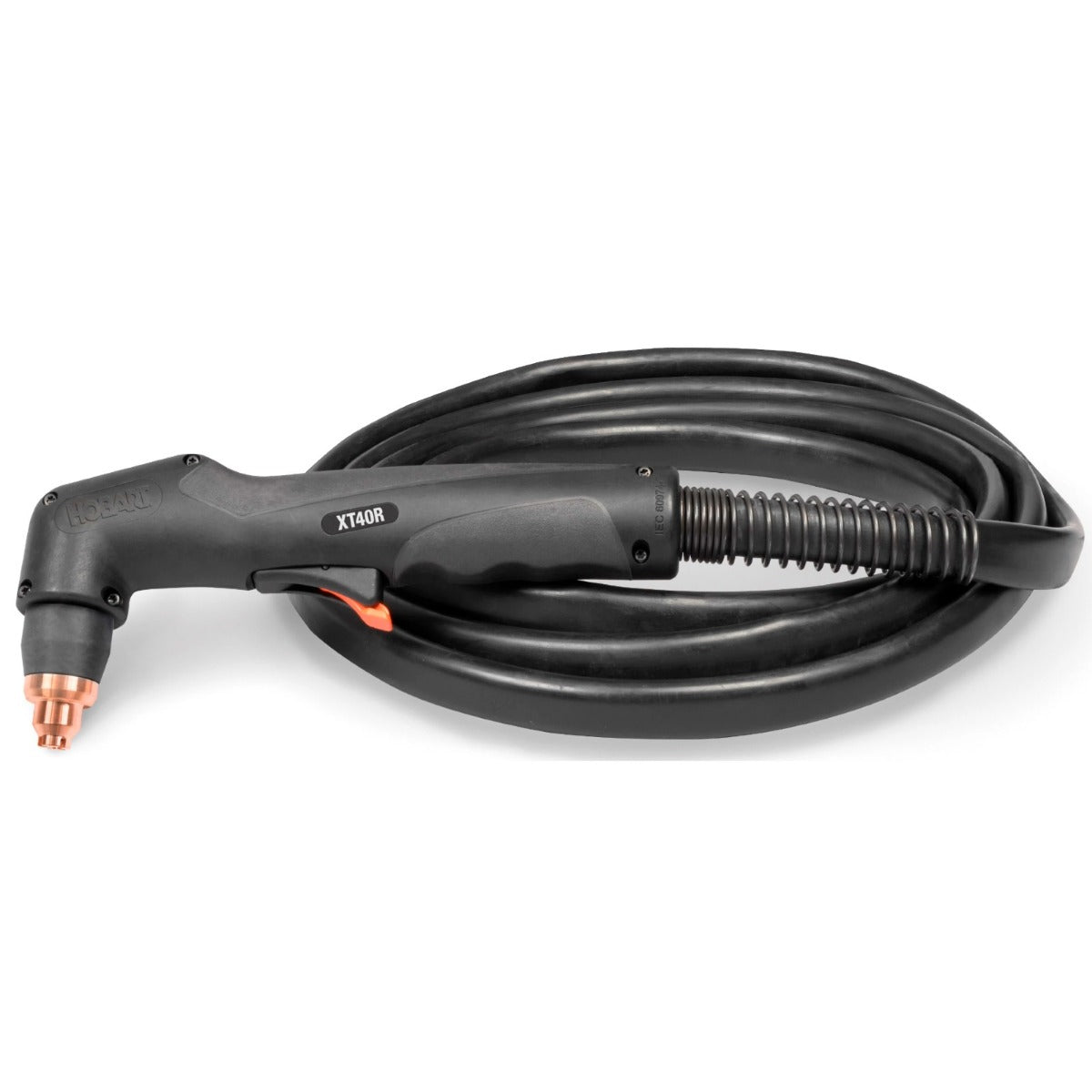

• The XT40R Ergonomic Torch is designed for increased comfort, more efficient cooling and economical replacement cutting tips.
• Post-flow Air Cooling cools the torch and tip after cutting, extending life of replaceable tip and electrode.
• Fan-On-Demand runs only when needed reducing dust/debris pulled into unit.
• Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components.
• Thermal Overload Protection is built to withstand tough working environments. Rated for 60% duty cycle at 40A output.
• Cable Management Strap secures torch, work cable and power cord to make transporting easy and convenient.
• Line Voltage Compensation (LVC) provides peak performance power under variable input voltage conditions (±15%) for steady and cleaner ending cuts.
• Power Factor Correction expands operator’s work area via extension cords while minimizing nuisance trips caused by voltage drops.
• High Frequency Starts protect unit by not interfering with or damaging controls or computers.
Quick Specs
• Cutting Capacity: Rated 5/8" | Max Cut 7/8"
• Duty Cycle: 120V - 20A @ 60%| 120V - 27A @ 35% | 240V - 40A @ 60%
• Weigh With Torcht: 21lbs
• Dimensions: 9" H x 5.5" W x 13.25" L
• Air Requirements: 6.0 CFM @ 90-120 PSI
Comes Complete With
• XT40-R torch with 12ft (3.66 m) lead and consumables
• 12ft Heavy duty work clamp with lead
• 12 ft (3 m) power cord with 120V and 240V MVP Plugs
• Built-In Gas/Air Filter and Regulator
• 5/3/1 Industrial Warranty. Five year warranty on transformers, stabilizers and generators; three years on electronics (drive motors, rectifiers); one year on guns (MIG and plasma torches)
Highlights:
• Capable of cutting 5/8 to 7/8 in. mild steel when powered on 240 V power.
• MVP Adaptors allow 120V or 240V operation with quick-change plugs.
• The XT40R Ergonomic Torch is designed for increased comfort, more efficient cooling and economical replacement cutting tips.
• Post-flow Air Cooling cools the torch and tip after cutting, extending life of replaceable tip and electrode.
• Fan-On-Demand runs only when needed reducing dust/debris pulled into unit.
• Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components.
• Thermal Overload Protection is built to withstand tough working environments. Rated for 60% duty cycle at 40A output.
• Cable Management Strap secures torch, work cable and power cord to make transporting easy and convenient.
• Line Voltage Compensation (LVC) provides peak performance power under variable input voltage conditions (±15%) for steady and cleaner ending cuts.
• Power Factor Correction expands operator’s work area via extension cords while minimizing nuisance trips caused by voltage drops.
• High Frequency Starts protect unit by not interfering with or damaging controls or computers.
Quick Specs
• Cutting Capacity: Rated 5/8" | Max Cut 7/8"
• Duty Cycle: 120V - 20A @ 60%| 120V - 27A @ 35% | 240V - 40A @ 60%
• Weigh With Torcht: 21lbs
• Dimensions: 9" H x 5.5" W x 13.25" L
• Air Requirements: 6.0 CFM @ 90-120 PSI
Comes Complete With
• XT40-R torch with 12ft (3.66 m) lead and consumables
• 12ft Heavy duty work clamp with lead
• 12 ft (3 m) power cord with 120V and 240V MVP Plugs
• Built-In Gas/Air Filter and Regulator
• 5/3/1 Industrial Warranty. Five year warranty on transformers, stabilizers and generators; three years on electronics (drive motors, rectifiers); one year on guns (MIG and plasma torches)
MPN: HOB500576
UPC: 715959674812
Phase: Single Phase
