Esab has discontinued the Fabricator 252i. The suggested replacement is the Esab Rebel 285.

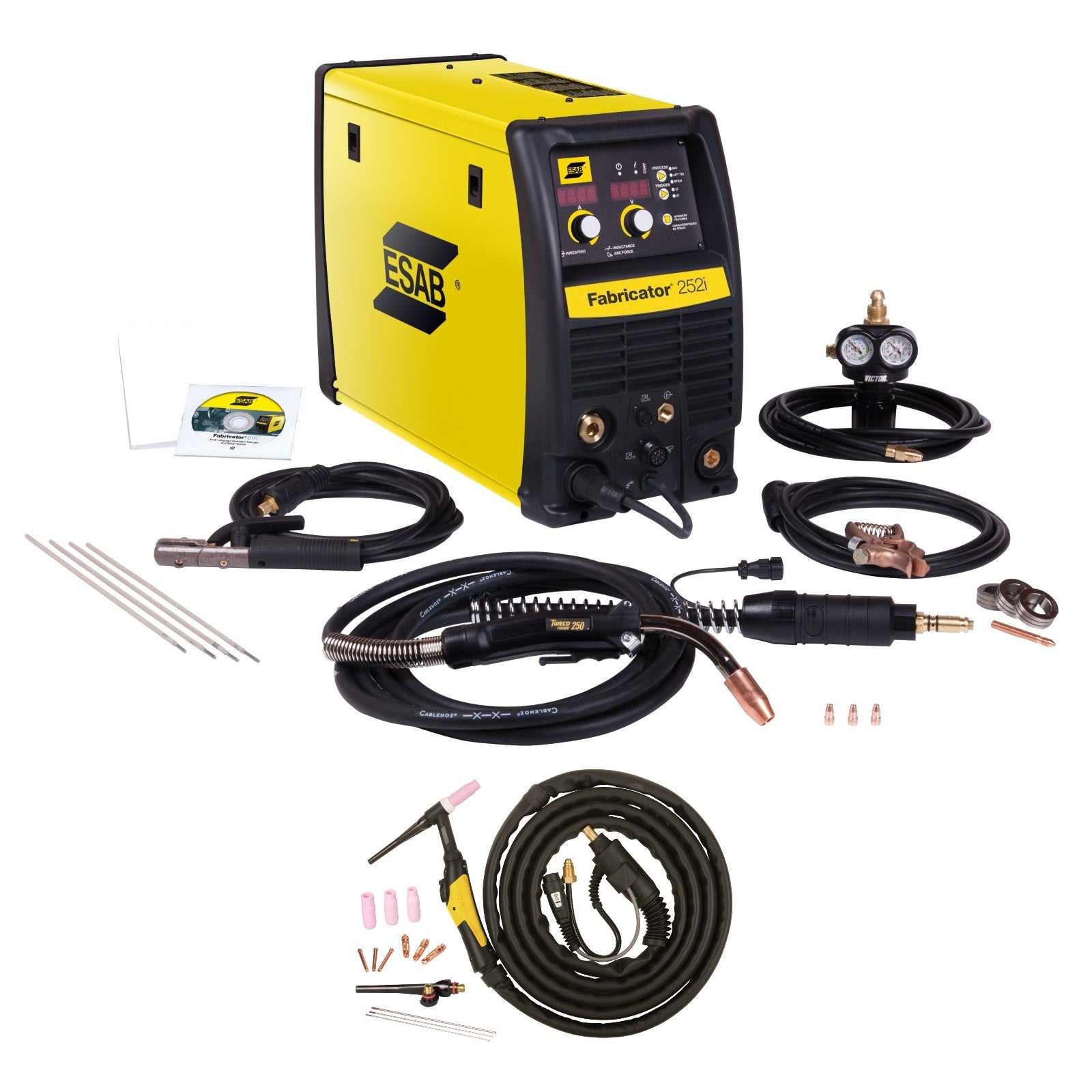

The ESAB Fabricator 3-in-1 252i Welding System (W1004403) has an included TIG Torch (W4013600) giving you MIG, Stick, and TIG welding capabilities; all in a portable package. Weighing in at only 65 lbs, this integrated platform has automatic input voltage selection from 208-230 VAC and an operating range of 187 - 276 VAC.
This power source comes with the New Esab Yellow Trade Dressing
• Infinite Voltage Control with optimized starting performance.
• Inductance Control for arc stability and spatter control.
• ESAB MIG Gun w/15 ft. cable and industry standard Tweco #4 connection.
• Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
• 4", 8", or 12" Spool capacity allows easy installation of wire spool sizes.
• Spool Gun ready
• Adjustable Arc Force Control for optimum STICK electrode performance.
• Excellent 6010 welding electrode performance.
• Lift TIG Start: Provides TIG arc starting without use of high frequency.
• PFC Power Factor Correction: Up to 40% more electrically efficient than conventional MIG Welders.
• Digital Meters: Voltage and Amperage; Preview and Hold capability.
• Excellent Portability: Lightweight, less than 66 lbs.
• Comprehensive Setup Chart: Weld set up guide for optimum welding performance over a wide range of materials and shielding gases.
• Trigger Control: 4T (Latch) eliminates operator fatigue.
• Remote Receptacle: Enables connection of remote control devices and Spool Gun.
• Quick Change Polarity: Simple quick change polarity (no tools required) from the front of the power source.
• Overload Protection: Shuts down the power source to protect the internal electrical components from overheating.
• IP23S: Suitable for outdoor use.
• Advanced Features: Includes Pre & Post Flow, Down Slope, Hot Start, Spot, Stitch, Burn Back, Wire Sharp, Arc Hour

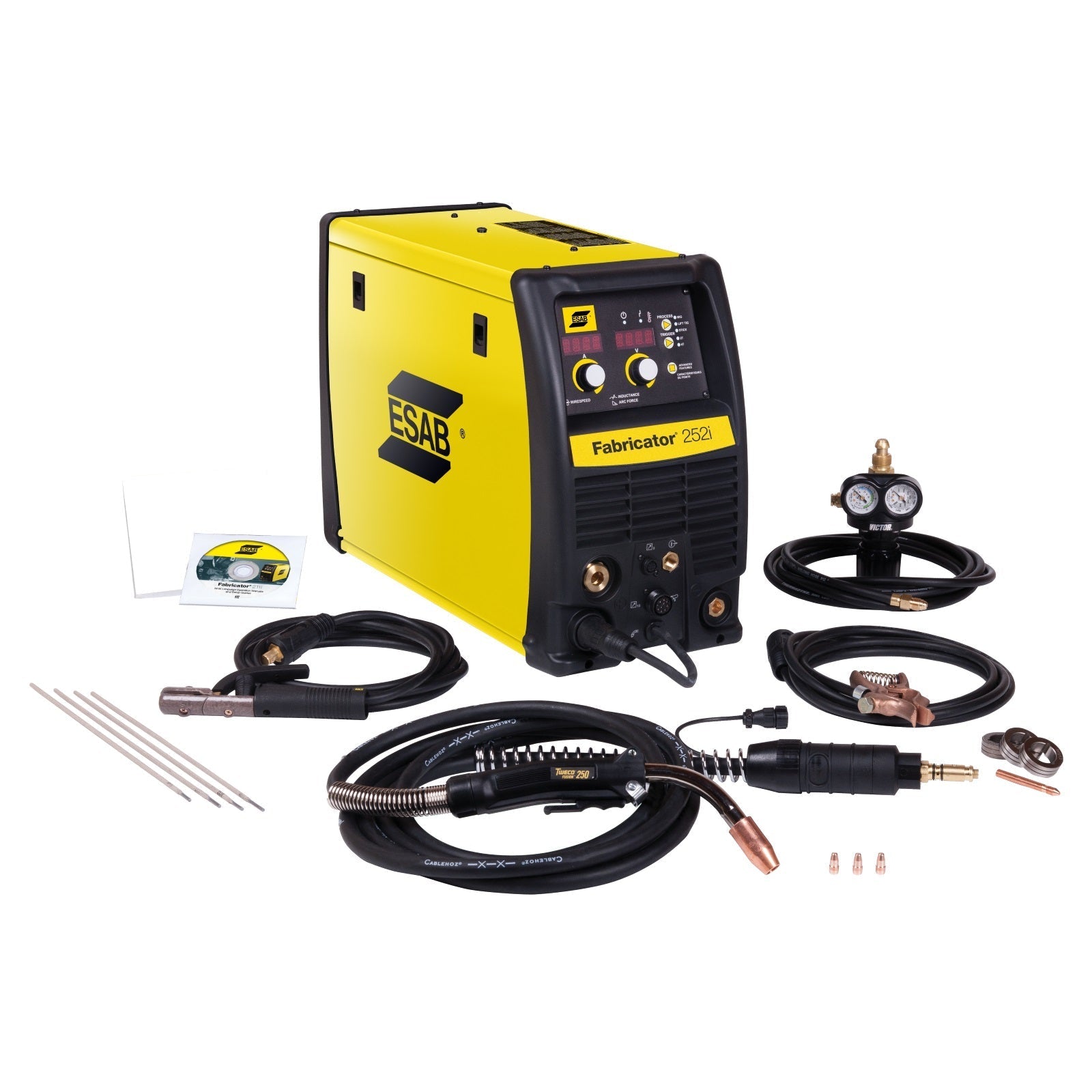

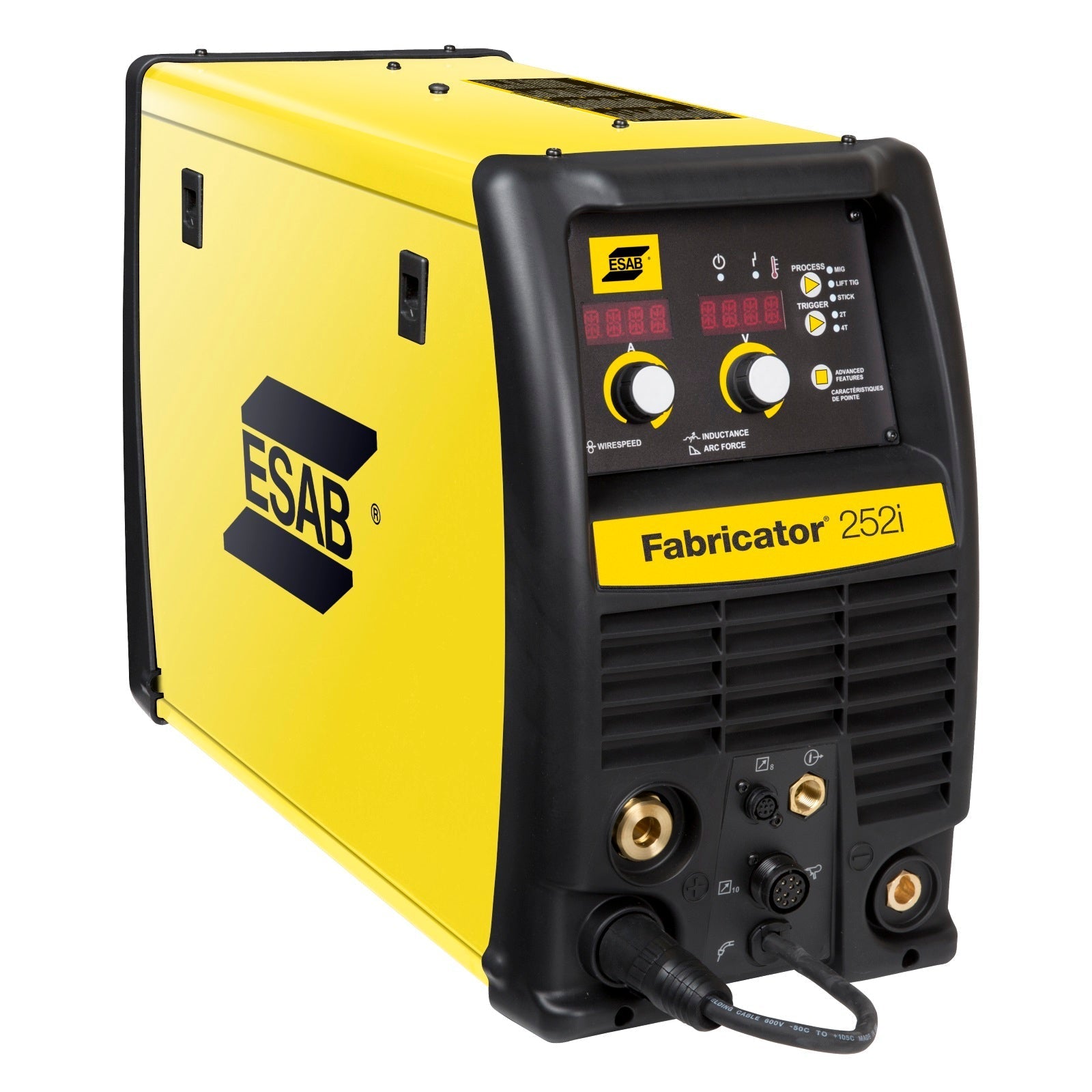

• Fabricator 252i Power Supply

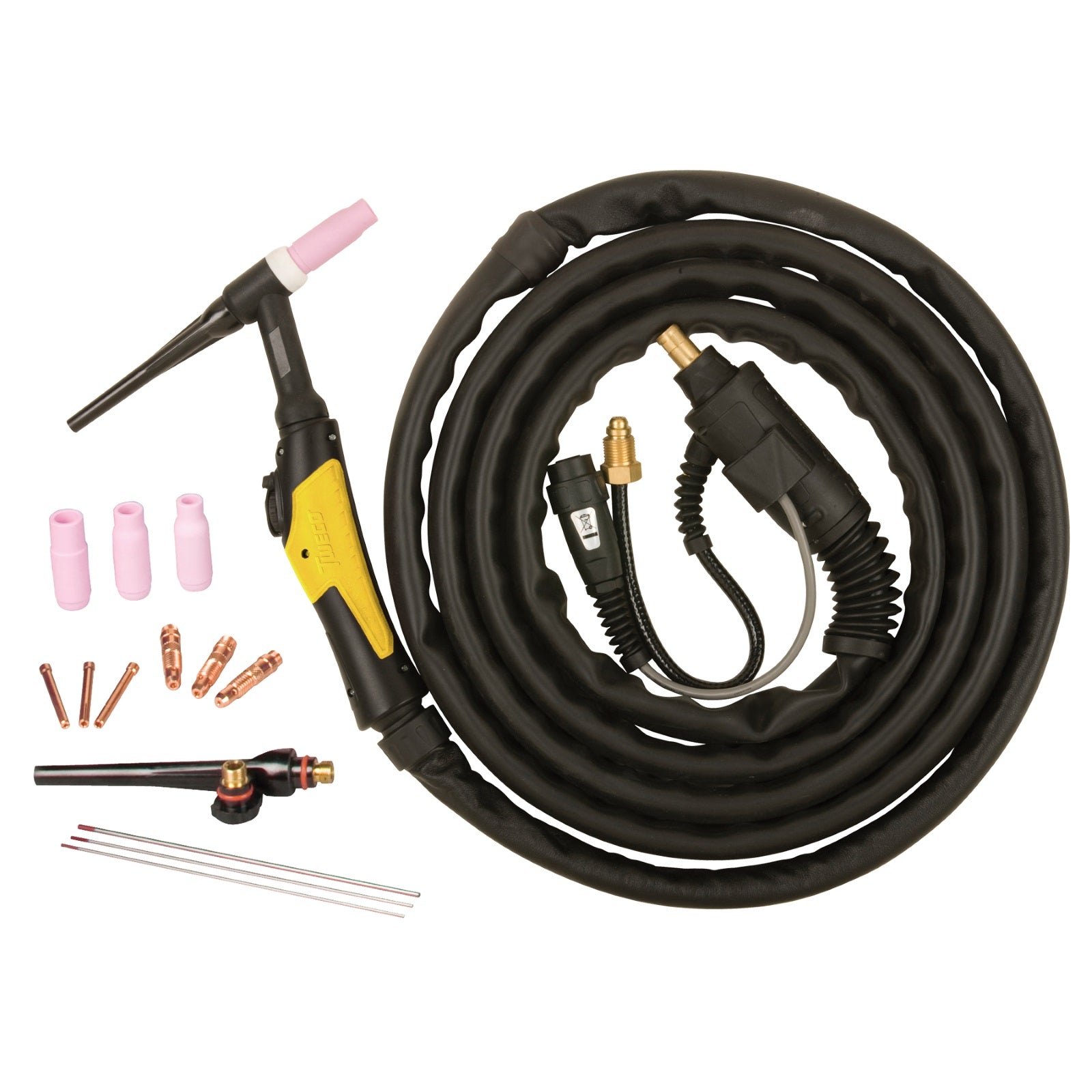

• 12.5ft 26 Series Air-Cooled Tig Torch w/Fingertip Amperage Control (W4013600)
• 15 ft (4.6 m) ESAB Fusion 250 Amp MIG Gun
• ESAB WeldSkill 200 Amp Ground Clamp with 10ft (3 m) Lead
• ESAB WeldSkill 200 Amp Electrode Holder with 13 ft (4 m) Lead
• Victor Argon Regulator - Flow Gauge with 12.5ft Hose
• 9 ft (2.7 m) Power Cord and NEMA 6-50P 230V AC Plug
• Operator’s Manual
• .035" / .045" V Groove Lower & Flat Upper (Fitted)
• .045" Flux Cored Roll
• .023/.030/.035 V-Groove
Contact Tips (1 each):
• .030 (0.8 mm), .035 (0.9 mm), .045 (1.2 mm)
MPN: THAW1004401, THAW4013600
Phase: Single Phase
