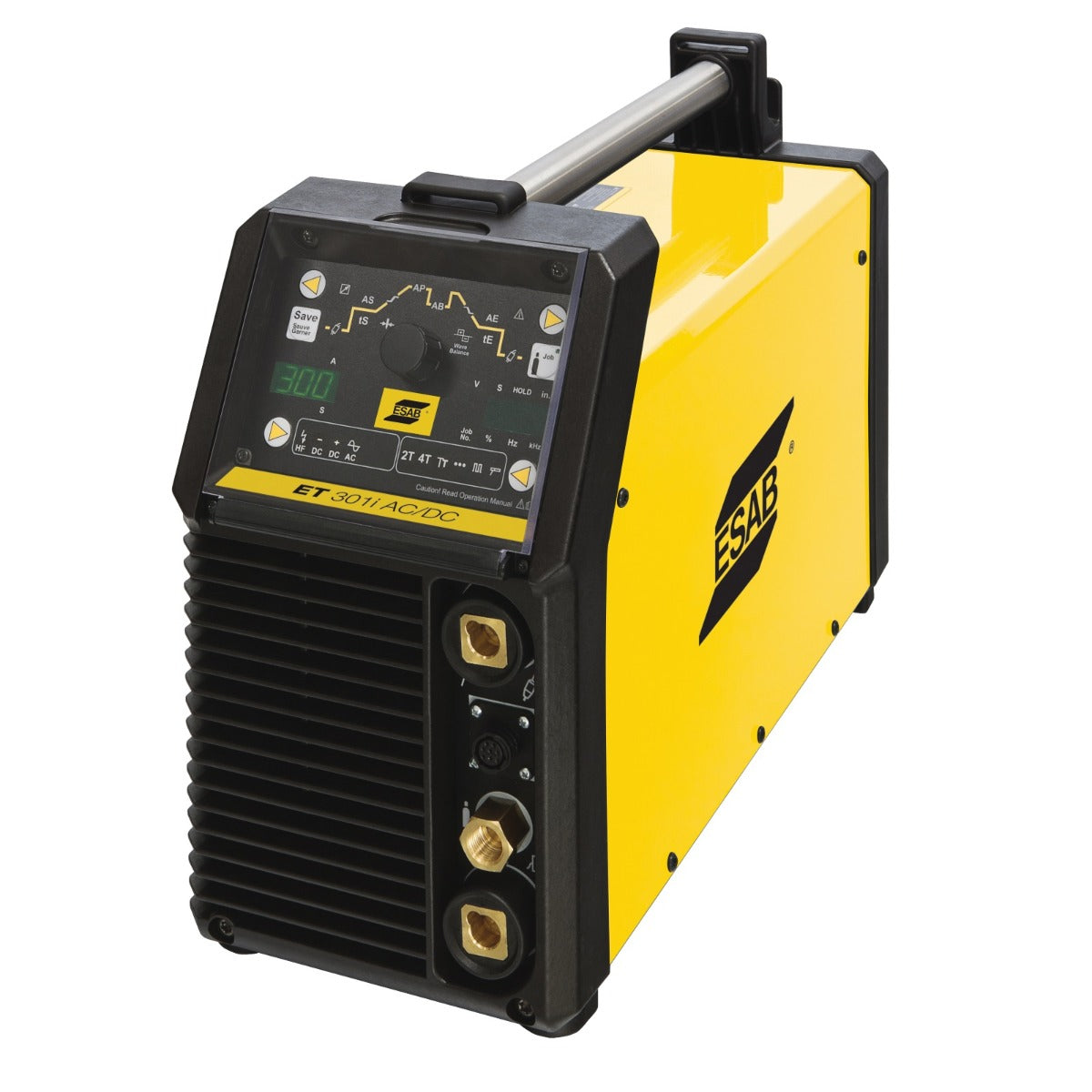

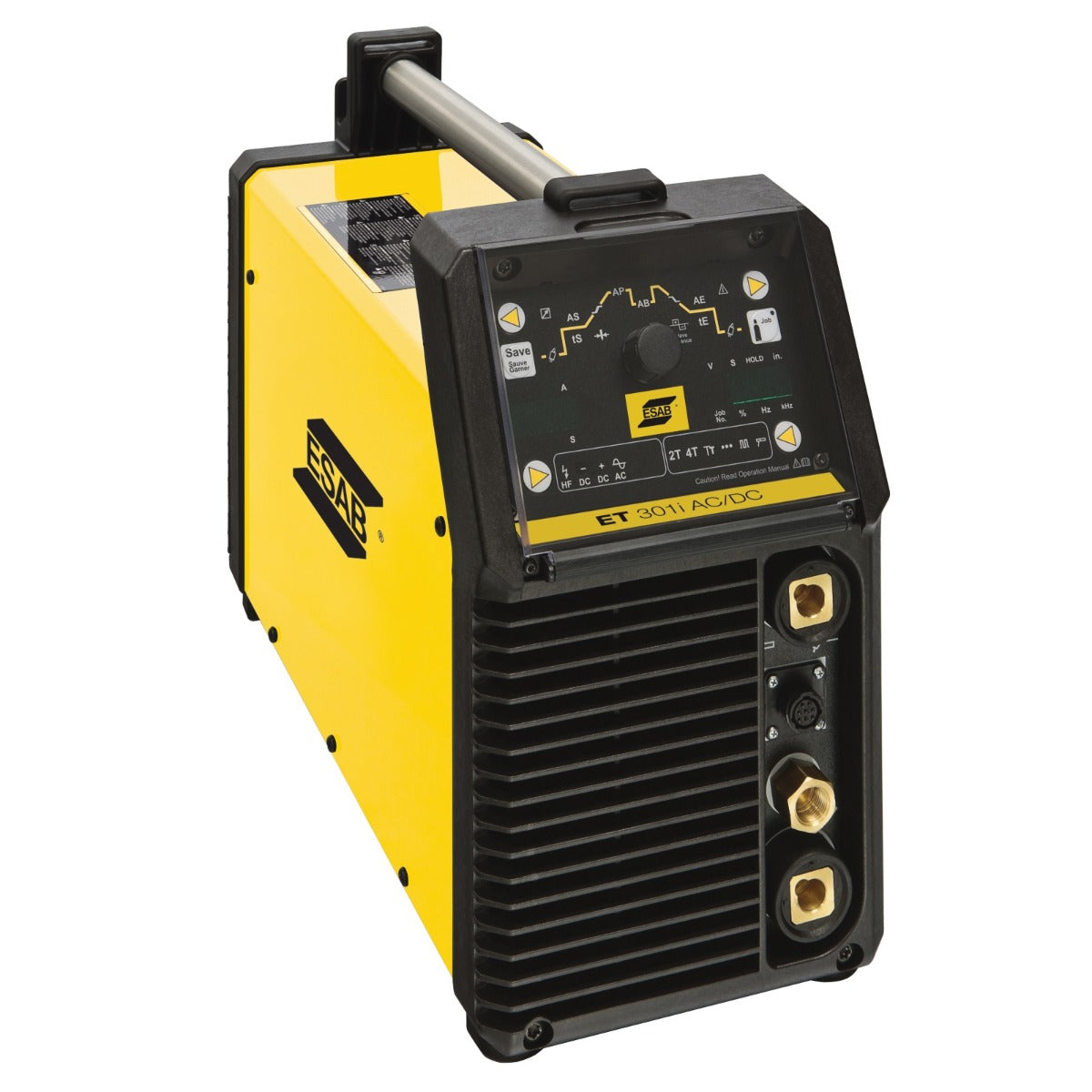

ESAB ET 301I AC/DC TIG/Stick Welder (W1009400)
The ESAB ET 301i AC/DC is a high output, full digital control inverter style welder that includes high frequency and liftarc capabilities. This unit is specially designed for precision TIG and stick welding of all materials. This unit includes true square wave technology with advanced balance and cleaning power to deliver unbeatable welding performance.
This is the power source only - the TIG torch (W4013600) and foot control (600285) must be purchased separately.

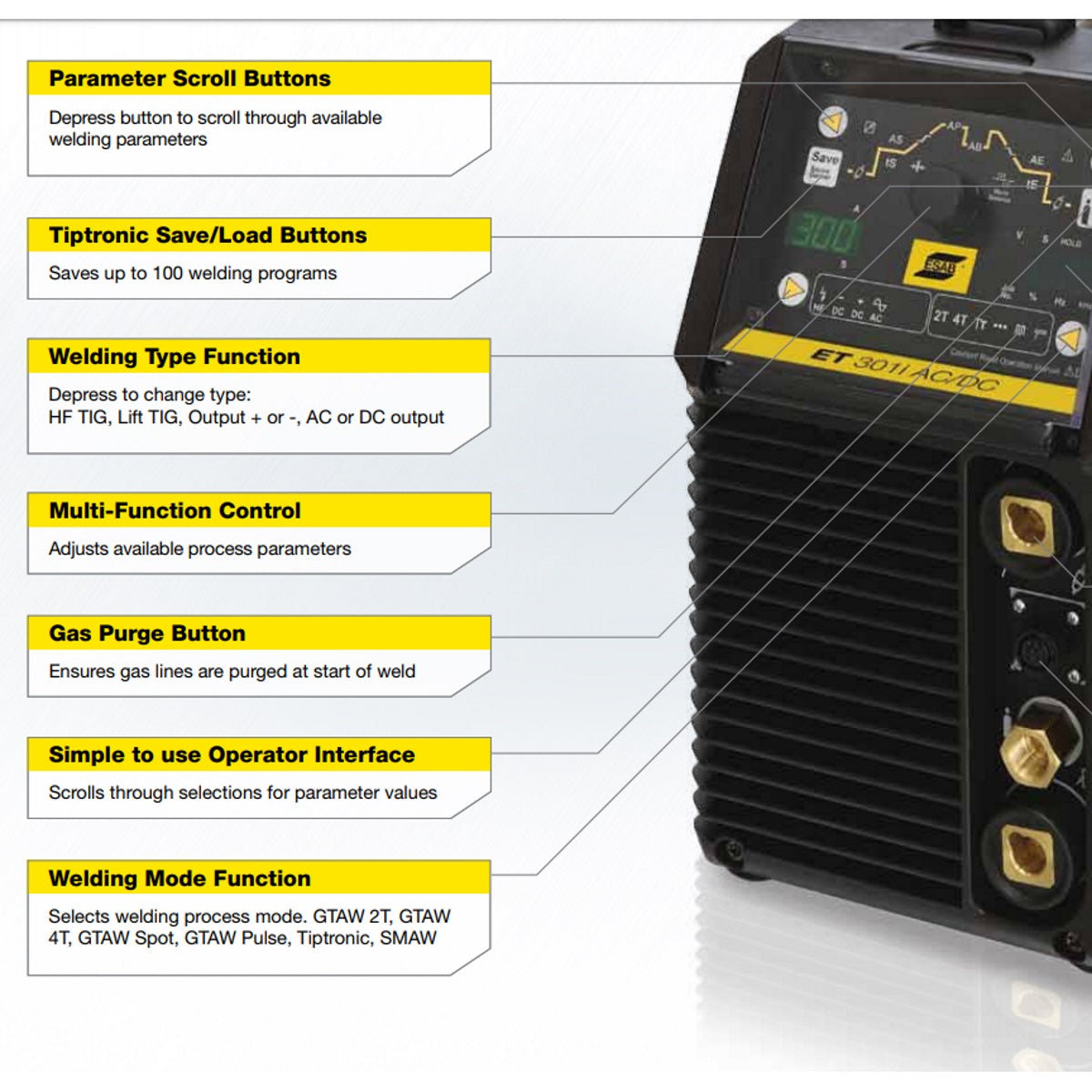

• Tiptronic Memory - Stores up to 100 welding programs
• Gas Purge Button - Ensures gas lines are purged at start of weld
• Welding Mode Function - Selects welding process mode
• Digital Meters - Displays pre-set and actual output current
• Recessed Front Panel - Protects multi-function knob and controls
• IP23S Approved Design - Suitable for outdoor use
• Output Terminals - 50mm Dinse with polarity reversing capability
• 8-Pin Remote Receptacle - Easy to connect remote controls

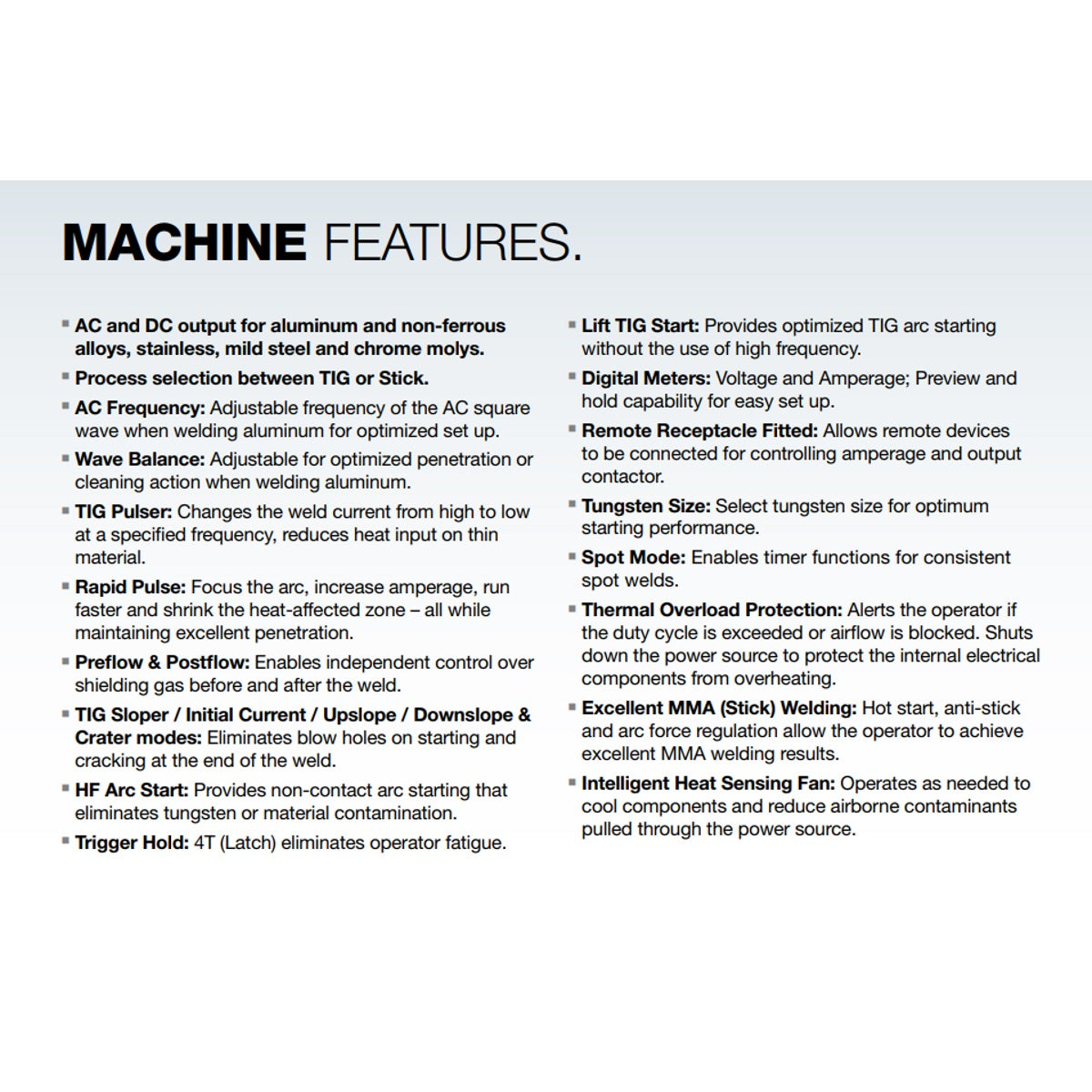

Standard Features
• High Frequency | Liftarc
• Automatic Downslope
• Pulse
• Repeat (latch) Function
• Memory Function
• Automatic Gas Management
• Embedded Microprocessor with Digital Controls
• Tiptronic Memory Functions
• Robust Aluminum Metal Case
Quick Specs
• Power: 1 or 3 Phase | 208-230/460V | 50/60 HZ
• 1-Phase Output Range: TIG - 5-200A | Stick - 10-150A
• 3-Phase Output Range: TIG - 5-300A | Stick - 10-200A
• 1-Phase Duty Cycle: TIG - 60% @ 200A | Stick - 100% @ 150A
• 3-Phase Duty Cycle: TIG - 30% @ 300A | Stick - 60% @ 200A
• Weight: 35.9 lbs | 16.3 kg
• Dimensions: 19 x 7.25 x 13 inches | 483 x 185 x 326 cm
This is the power source only - the TIG torch (W4013600) and foot control (600285) must be purchased separately.
• Tiptronic Memory - Stores up to 100 welding programs
• Gas Purge Button - Ensures gas lines are purged at start of weld
• Welding Mode Function - Selects welding process mode
• Digital Meters - Displays pre-set and actual output current
• Recessed Front Panel - Protects multi-function knob and controls
• IP23S Approved Design - Suitable for outdoor use
• Output Terminals - 50mm Dinse with polarity reversing capability
• 8-Pin Remote Receptacle - Easy to connect remote controls
Standard Features
• High Frequency | Liftarc
• Automatic Downslope
• Pulse
• Repeat (latch) Function
• Memory Function
• Automatic Gas Management
• Embedded Microprocessor with Digital Controls
• Tiptronic Memory Functions
• Robust Aluminum Metal Case
Quick Specs
• Power: 1 or 3 Phase | 208-230/460V | 50/60 HZ
• 1-Phase Output Range: TIG - 5-200A | Stick - 10-150A
• 3-Phase Output Range: TIG - 5-300A | Stick - 10-200A
• 1-Phase Duty Cycle: TIG - 60% @ 200A | Stick - 100% @ 150A
• 3-Phase Duty Cycle: TIG - 30% @ 300A | Stick - 60% @ 200A
• Weight: 35.9 lbs | 16.3 kg
• Dimensions: 19 x 7.25 x 13 inches | 483 x 185 x 326 cm
MPN: ESBW1009400
Phase: Both
