Diamond Lead Reels HD Fixed Base Reel (FBDXXBLK)
Diamond Lead Reels HD Swivel Base Reel (SBDXXBLK)
Diamond Lead Reels HD Swivel Base Reel (SBDXXBLK)
Diamond Lead Reels HD Swivel Base Reel (SBDXXBLK)
Diamond Lead Reels HD Swivel Base Reel (SBDXXBLK)
Diamond Lead Reels HD Swivel Base Reel (SBDXXBLK)
Diamond Lead Reels HD Swivel Base Reel (SBDXXBLK)

Diamond Lead Reels HD Swivel Base Reel (SBDXXBLK)

Sale price$395.00
Sold out

Select Size (Parts & Accessories):

Select Size (Parts & Accessories)

warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

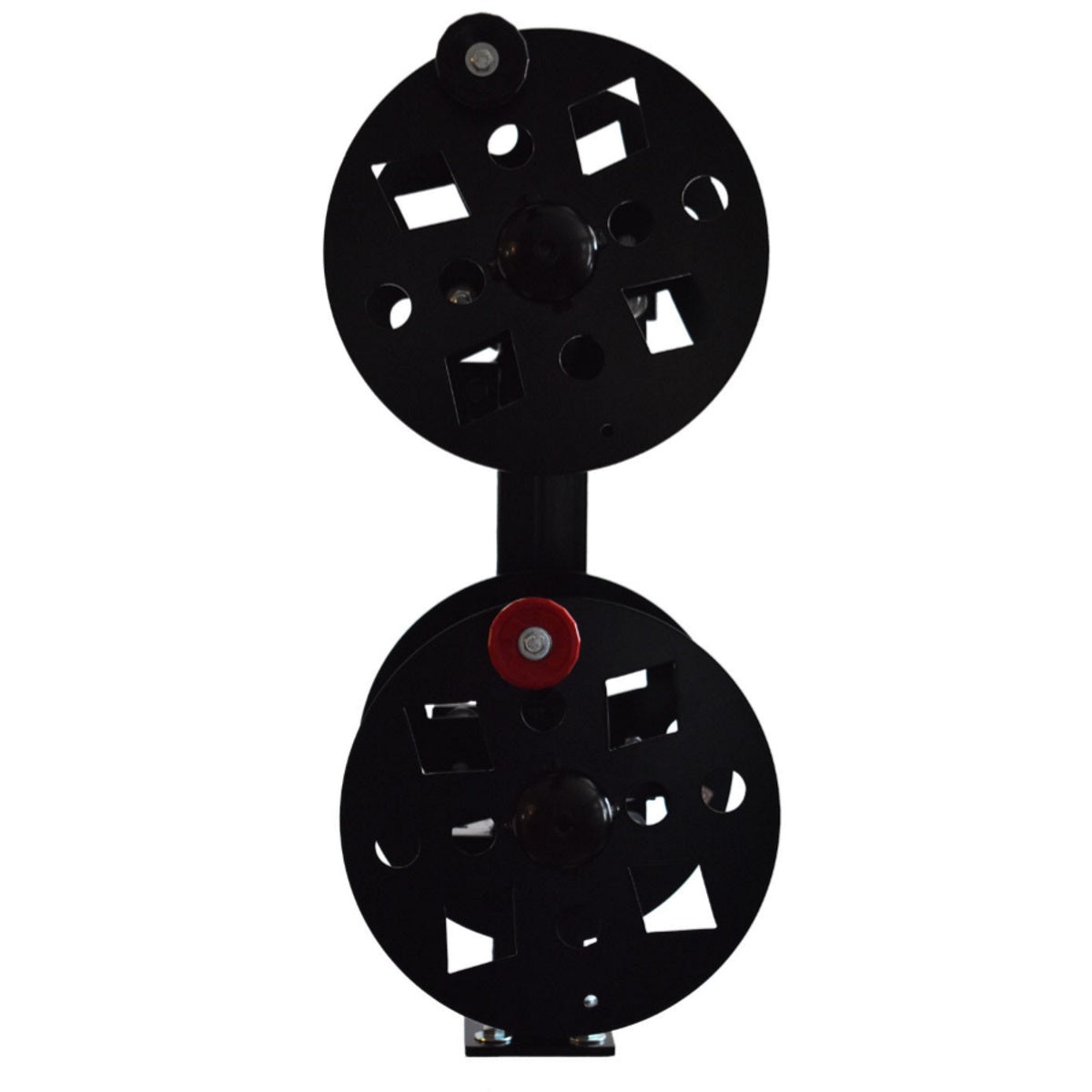

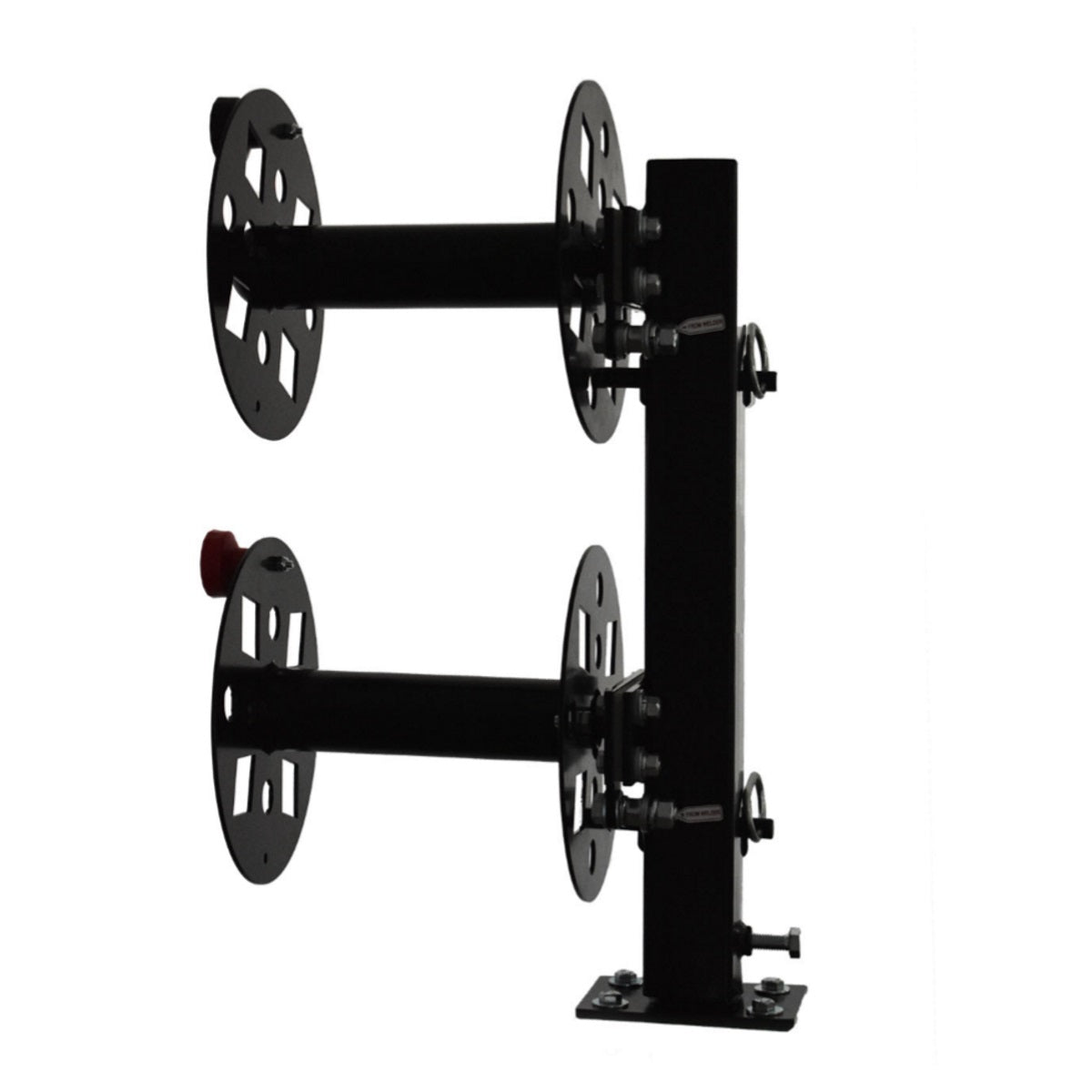

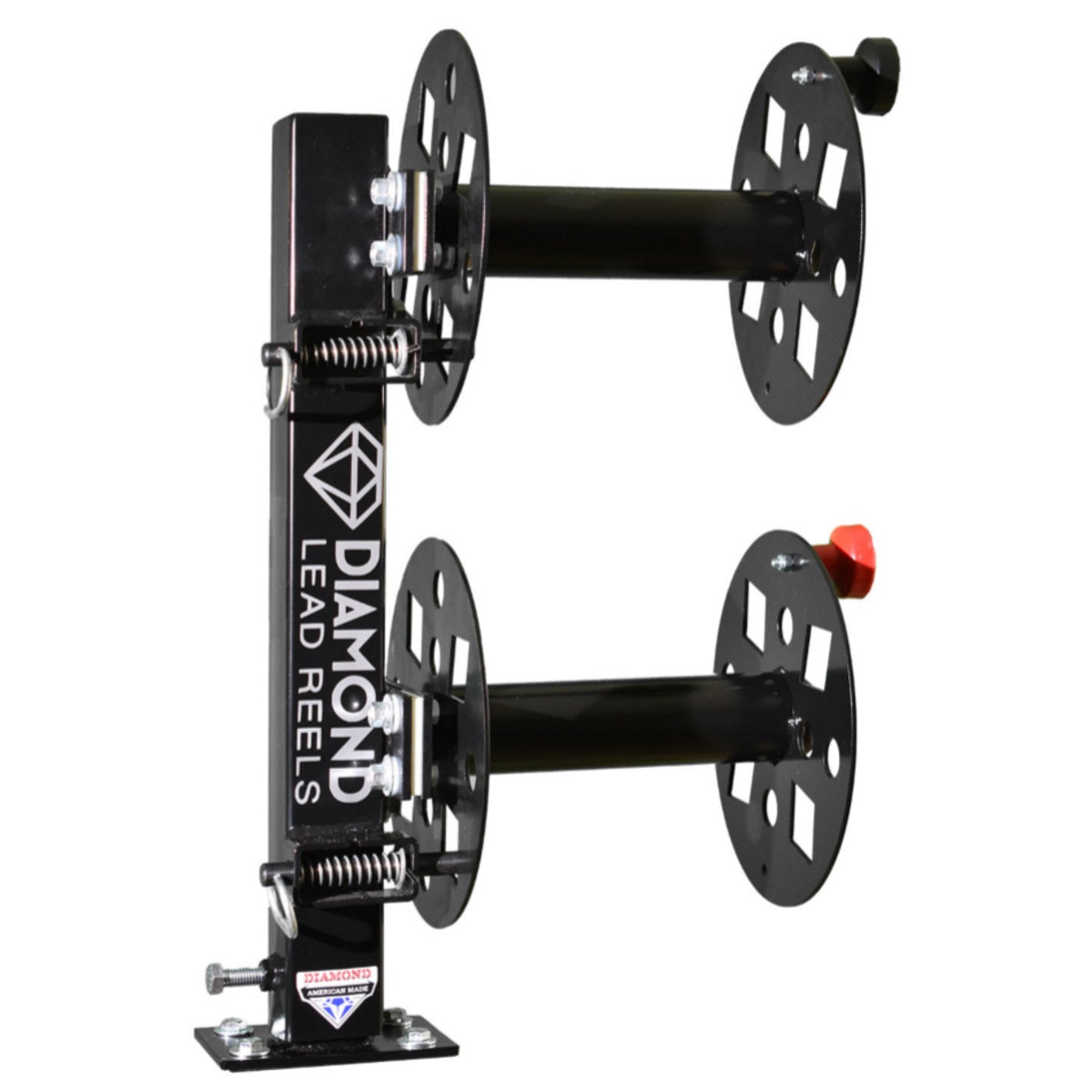

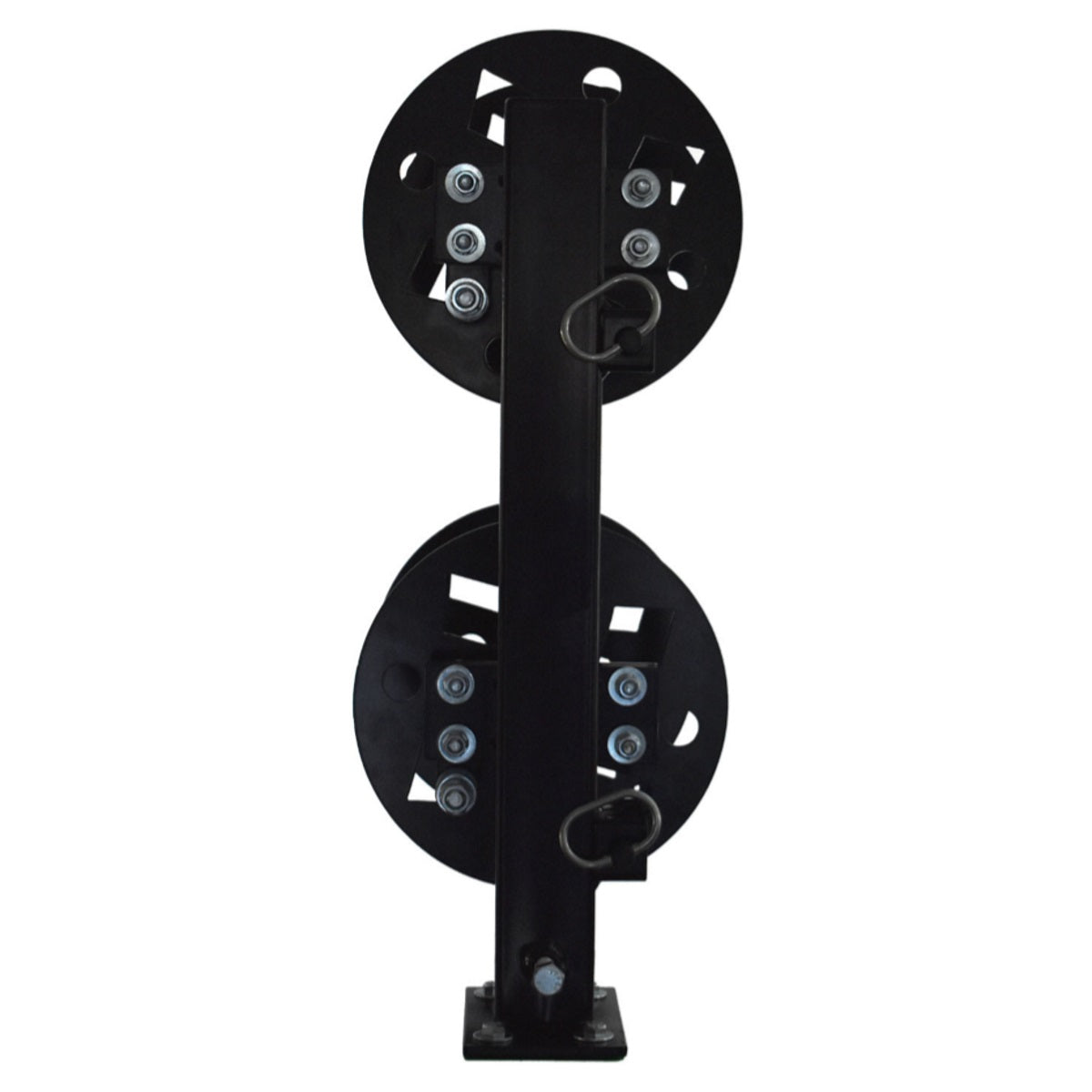

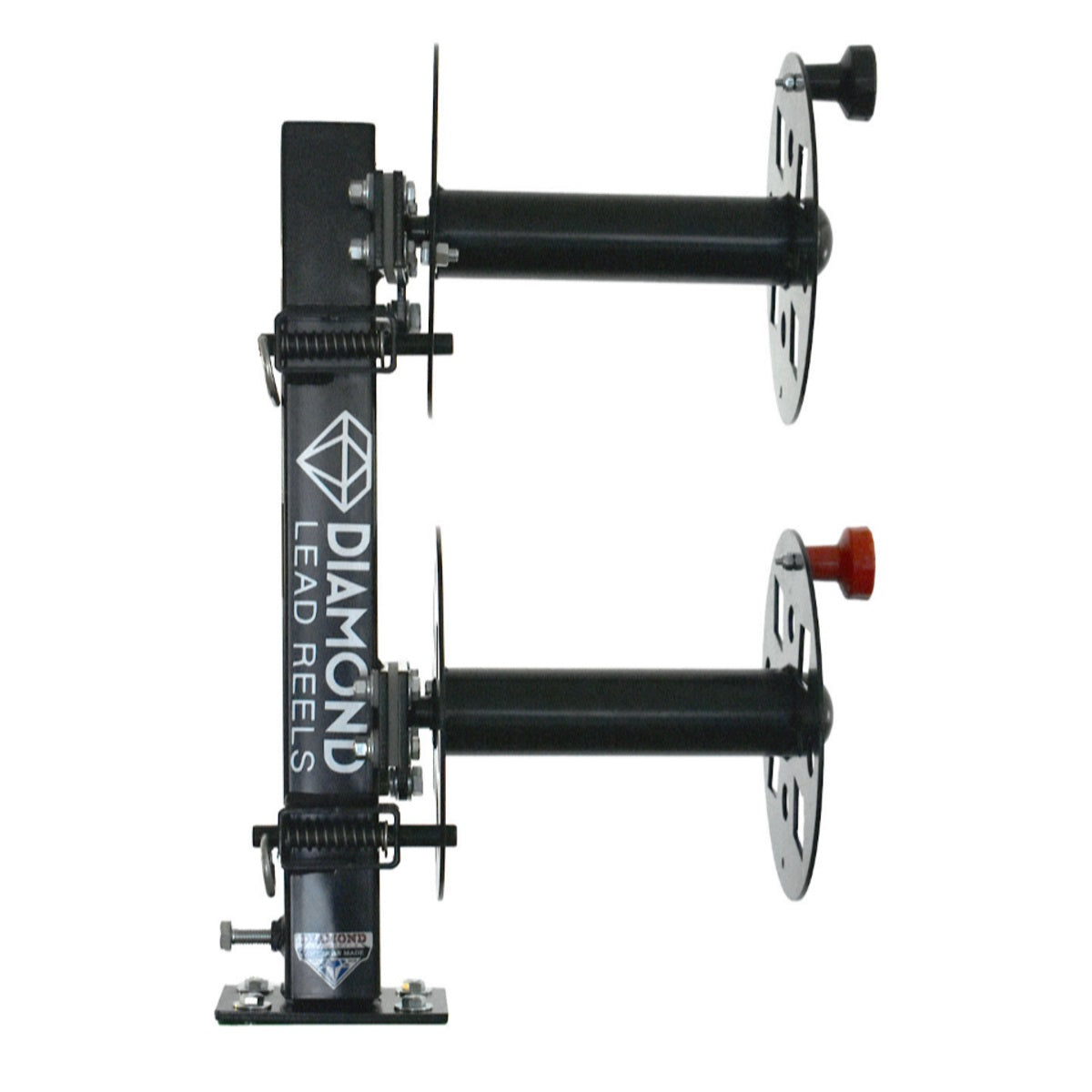

The Diamond Lead Reels are built to last a lifetime with heavy-duty construction and ZINC coated steel. These reels come with a swivel base that stays connected to the welder, giving you a "live reel setup", yet allows the reel to be turned 360 degrees in any direction. These reels are rated up to 600 amps and come with an adjustable friction brake to help the user set the desired tension. Choose your desired reel diameter - 10 inch or 12 inch. Made in the USA

Features
• Stays connected to the welder at all times
• Swivel Base allows 360 degree rotation
• Comes standard with 600 Amp capacity
• 1/2" Terminal connections
• Vented circle design allows free air-flow to aid cooling
• Heavy-duty adjustable manual friction brake - prevents free spooling during roll-out
• Locking pull pins secure cables while not in use
• Reels are rebuildable with full line of replacement parts

Construction
• Heavy-duty all steel construction
• All hardware is Zinc coated
• Dual ball bearing spools
• Powdercoated finish

Cable Capacity
• 10" Reel: 150' of 1/0 Cable or 125' of 2/0 Cable | Dimensions: 16.5" W x 25.5" H x 12" D
• 12" Reel: 200' of 1/0 Cable or 175' of 2/0 Cable | Dimensions: 16.5" W x 25.5" H x 14" D

Warranty
• Lifetime warranty on steel construction and workmanship
• 1 Year warranty on spools, bearings, and pins
