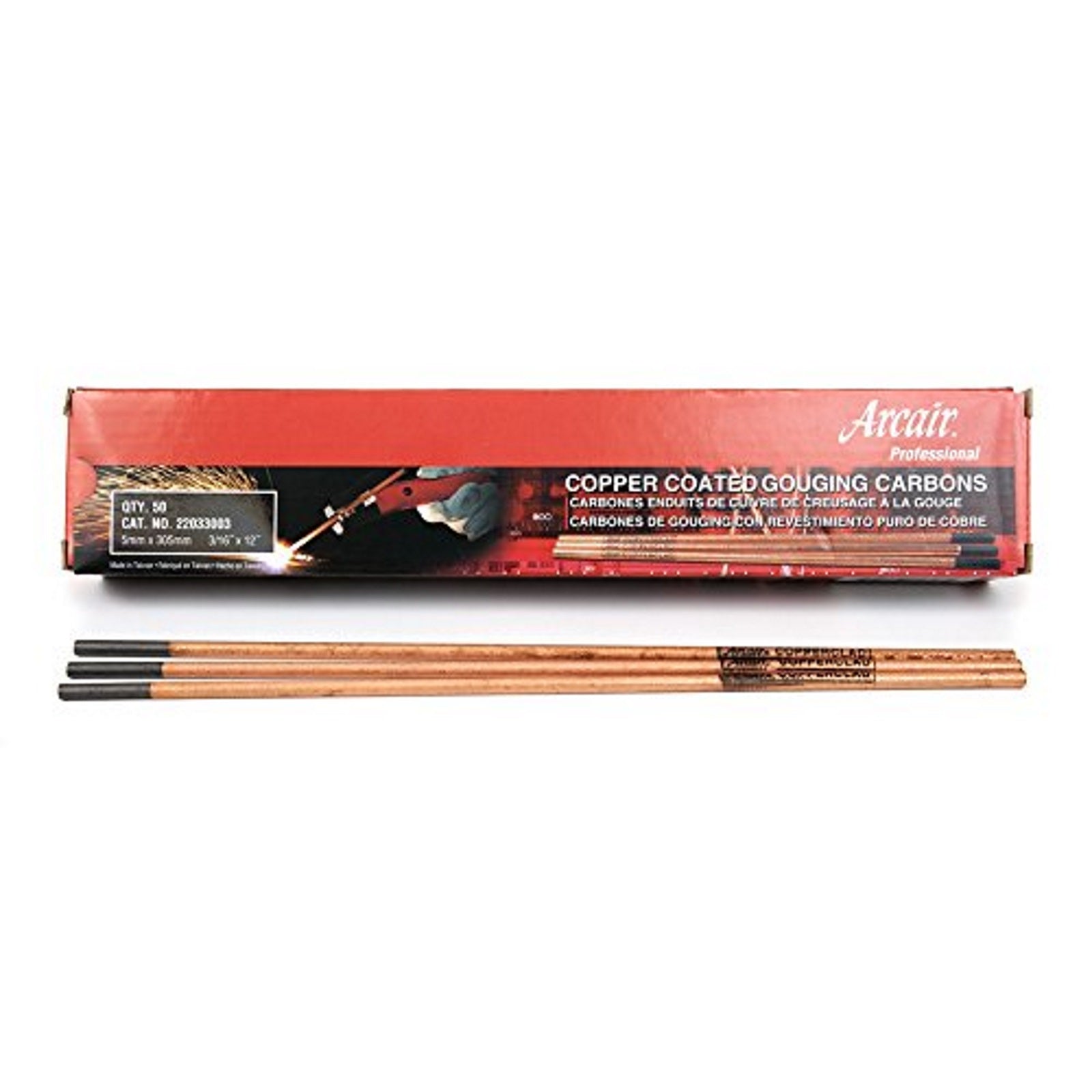

Arcair 3/16 X 12 Pointed Copperclad Gouging Electrodes (22033003)
Air carbon-arc gouging (CAC-A) is the process of cutting/removing metal through intense heat generated from a carbon arc. Using a carbon electrode, compressed air and a welding power source (either a constant current, constant voltage, DC or AC), the arc created between the carbon electrode and the work piece melts the material, while the compressed air blows away the molten metal leaving a clean groove. The rate of metal removal is based on the efficiency of air stream in removing molten metal and the melting rate.
These rods are a high grade, all purpose copperclad pointed gouging electrode. It's controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.
Features
• Contain a precise formulated blend of carbon and graphite
• Produces the most efficient metal removal performance in today’s market
• Superior metal removal rates, cool operation, and uniform diameters
• Ideal for a broad range of applications
Uses
• Creating u-grooves for weld joint
• Removing old welds
• Gouging out cracks
• Cleaning and repairing castings
• Removing hard surface material
• Rough machining
Quick Specs
• Current Type: D.C.
• Polarity: DCEP
• Size: Pointed, 3/16" X 12"
• Amperage: 200-250 Amps
• Pieces per Carton: 50
These rods are a high grade, all purpose copperclad pointed gouging electrode. It's controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.
Features
• Contain a precise formulated blend of carbon and graphite
• Produces the most efficient metal removal performance in today’s market
• Superior metal removal rates, cool operation, and uniform diameters
• Ideal for a broad range of applications
Uses
• Creating u-grooves for weld joint
• Removing old welds
• Gouging out cracks
• Cleaning and repairing castings
• Removing hard surface material
• Rough machining
Quick Specs
• Current Type: D.C.
• Polarity: DCEP
• Size: Pointed, 3/16" X 12"
• Amperage: 200-250 Amps
• Pieces per Carton: 50
MPN: ARC22033003
UPC: 608246056081
