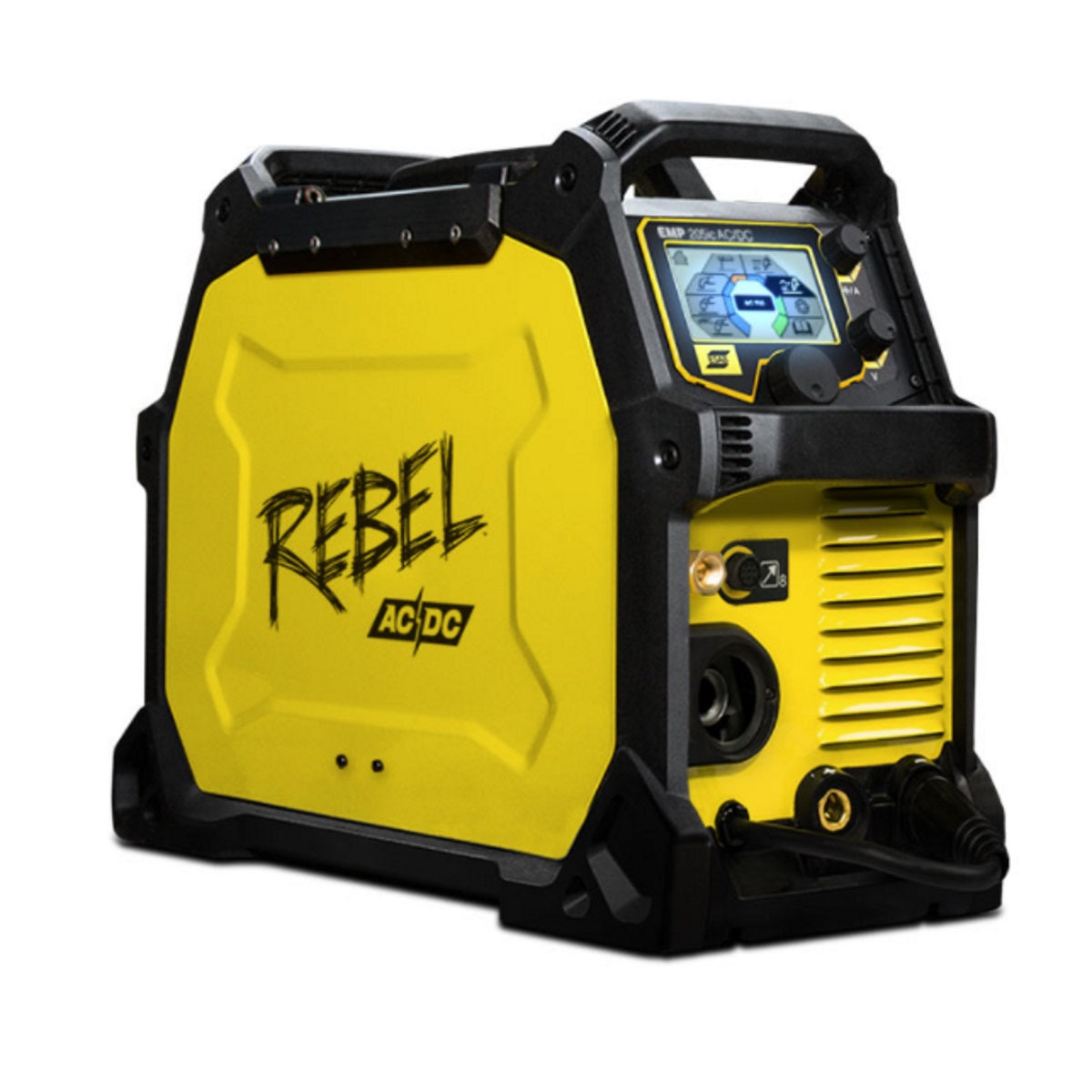

ESAB Rebel EMP 205ic AC/DC Multi-Process Welder (0558102553)
The ESAB Rebel EMP 205ic MIG/Stick/TIG Welder is a versatile welder. It can handle multiple processes and is portable for use on the go.
Most ESAB multi-process welders only do DC TIG welding. This unit is different because it also does AC TIG welding and is specifically designed for aluminum and titanium. ESAB has fit all this technology in the frame of the super-popular Rebel EMP 215 case!
The ESAB Rebel EMP 205ic has smart MIG (sMIG) technology that helps control the welding process for a better weld.
The ESAB Rebel 205 features two modes: basic and advanced. Basic mode allows you to set wire diameter and material thickness. The advanced mode gives you complete control over all arc characteristics.
The research and technology put into this machine are astounding. The 4.3” LCD screen displays your consumable part numbers and user manual for easy access. You no longer have to be a career welder or a rocket scientist to set your machine up correctly.
Features:
• AC/DC TIG Mode
• sMIG technology
• 4.3-inch Color LCD Display
• 120V/230V Dual Input Voltage
• Weld parameter storage
• Hot start (Stick mode only)
• Arc Force (Stick mode only)
• Lift arc (TIG mode only)
• Trigger lock (2T, 4T)
• Voltage trim adjustment (MIG mode only)
• Inductance adjustment (MIG mode only)
• Burn back adjustment (MIG mode only)
• Pre-flow/post-flow adjustment (MIG mode only)

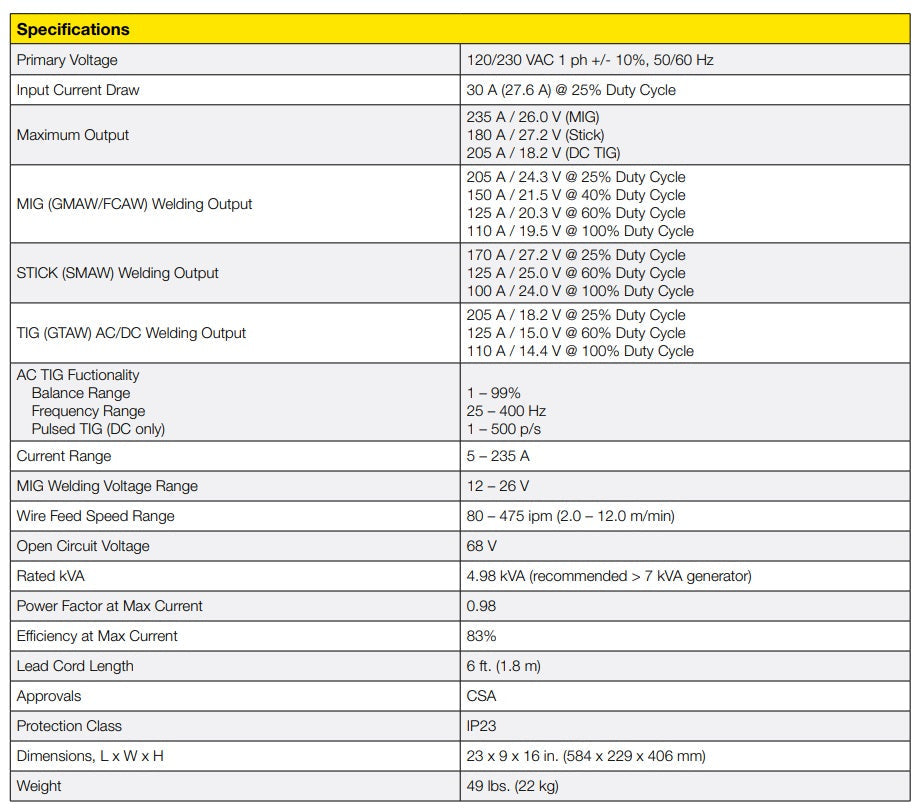

Quick Specs
• Input Power: 120V/230V
• Current Range: 5-150A (120V), 5-235A (230V)
• Wire Diameter Capacity: .023"-.045"
• Weight: 49 lbs
• Dimensions: 16" H x 9" W x 23" D
• Max Plate Thickness: 3/8"
• Generator Requirement: 3.7 kVA (110V) | 7.5 kVA (230V)
• Warranty: 3 years on power source, 1 year on torch

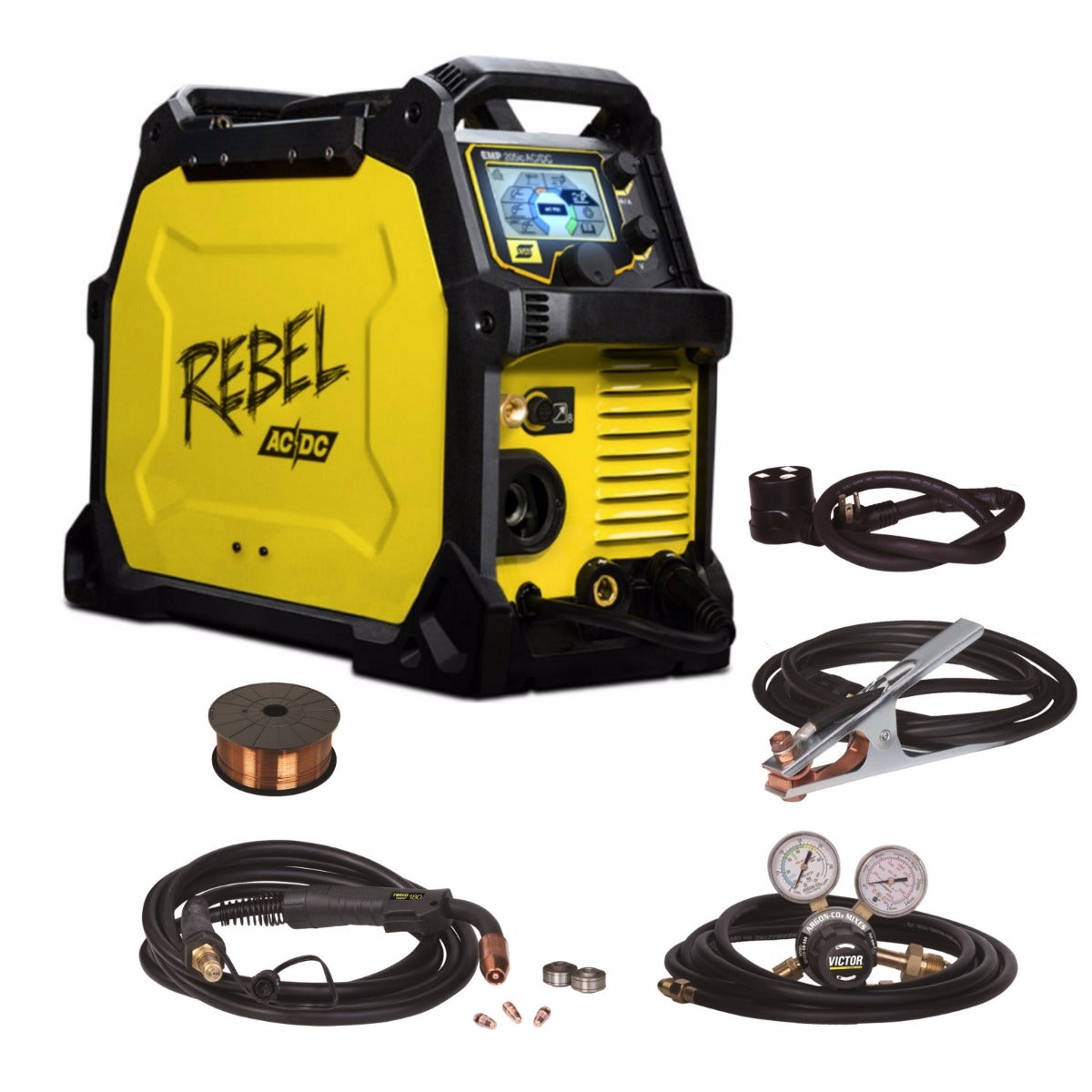

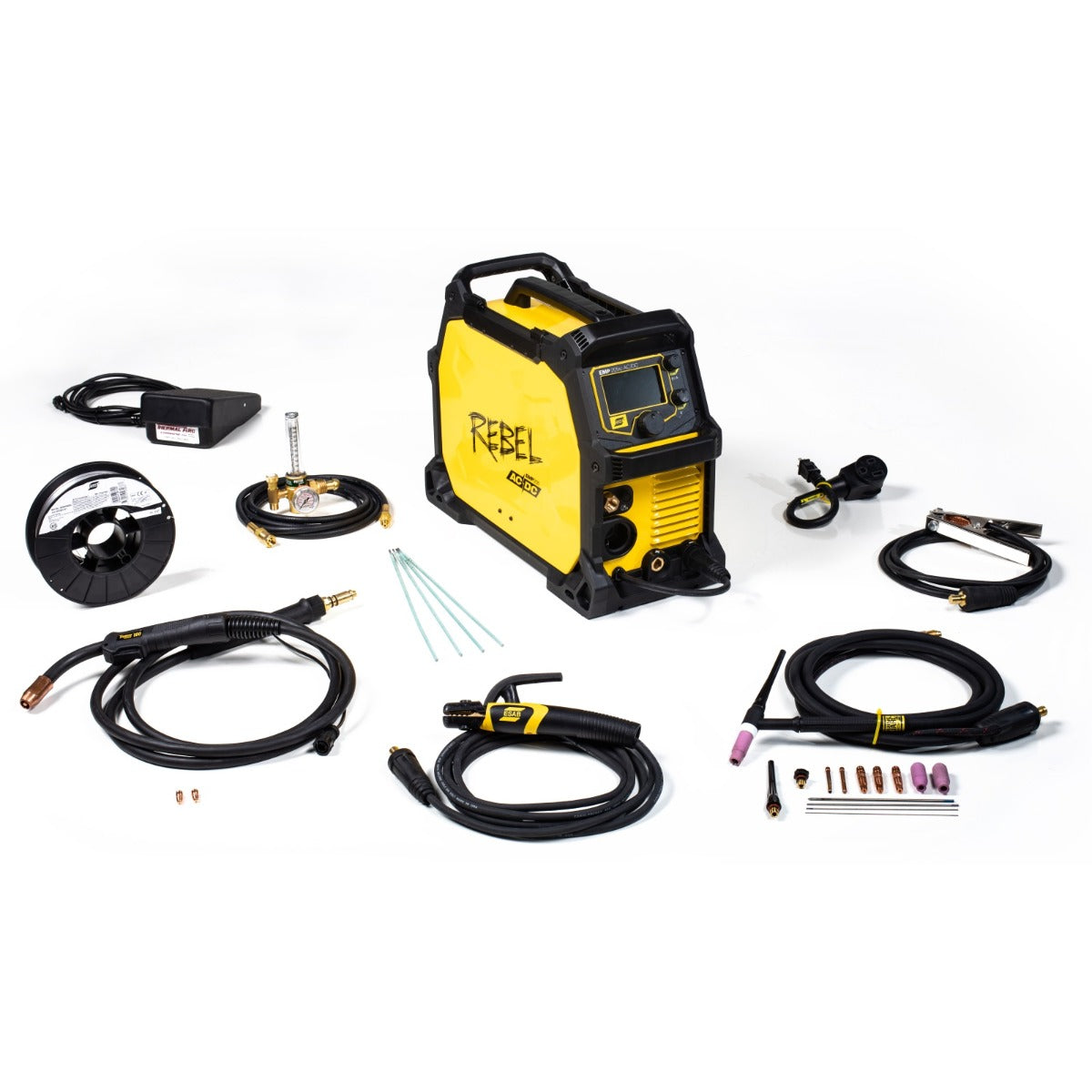

Comes Complete With:
• Power Source
• 10-foot Tweco Fusion 180 MIG gun
• 13-foot Tweco 200A electrode holder
• Tweco ground clamp with leads
• Spare MIG gun parts kit, including contact tips & drive rolls
• Four general purpose 6013 stick electrodes
• ESAB 70S-6 .030 8-inch 4-lb sample spool
• Wired Foot Control
• Tweco 12.5-foot 17 Series TIG torch & accessories (3 Collets and Collet Bodies (1/16, 3,32, 1/8)
• 1 Short Backcap | 1 Long Backcap | 3 Tungsten (1/16, 3/32, 1/8) | 3 Cups (#5, #6, #8)
• Victor Argon/CO2 Flowmeter Regulator with 10-foot gas hose
• 230V Plug Installed (120V Adapter Plug Included)
MPN: ESB0558102553
UPC: 662067196869
Phase: Single Phase
